CAT 5 PoE RJ45 Ethernet Connector Right Angle for Net Card, 10/100BASE

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-60BPOEGYZENL

Detail Information

LEDS/EMI Fingers: Custom RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP
Application: Lan,bridge,PC,router,usb Hub Network Rj45 Gender: Female RJ45
Feature: High Performance,magnetic Product Name: RJ45 Ethernet Jack
LED: G/Y

Product Description

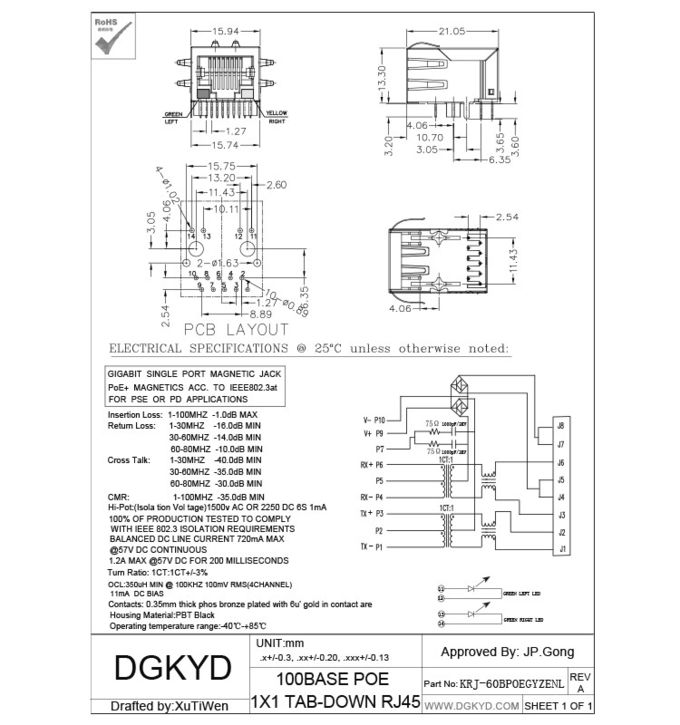

Net Card / CAT 5 RJ45 Ethernet Jack Connector Right Angle PoE

Descriptions:

  • 10/100Base-Tx RJ45 single port 1X1  Side Entry (Right Angle)with LEDS
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant
  • Length:21.3mm
  • EMI fingers:YES



Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

CAT 5 PoE RJ45 Ethernet Connector Right Angle for Net Card, 10/100BASE

Power over Ethernet (PoE), combining data and power supply via Ethernet cabling



Power over Ethernet or PoE describes any of several standard or ad-hoc systems which pass electric power along with data on twisted pair Ethernet cabling. This allows a single cable to provide both data connection and electric power to devices such as wireless access points, IP cameras, and VoIP phones.
