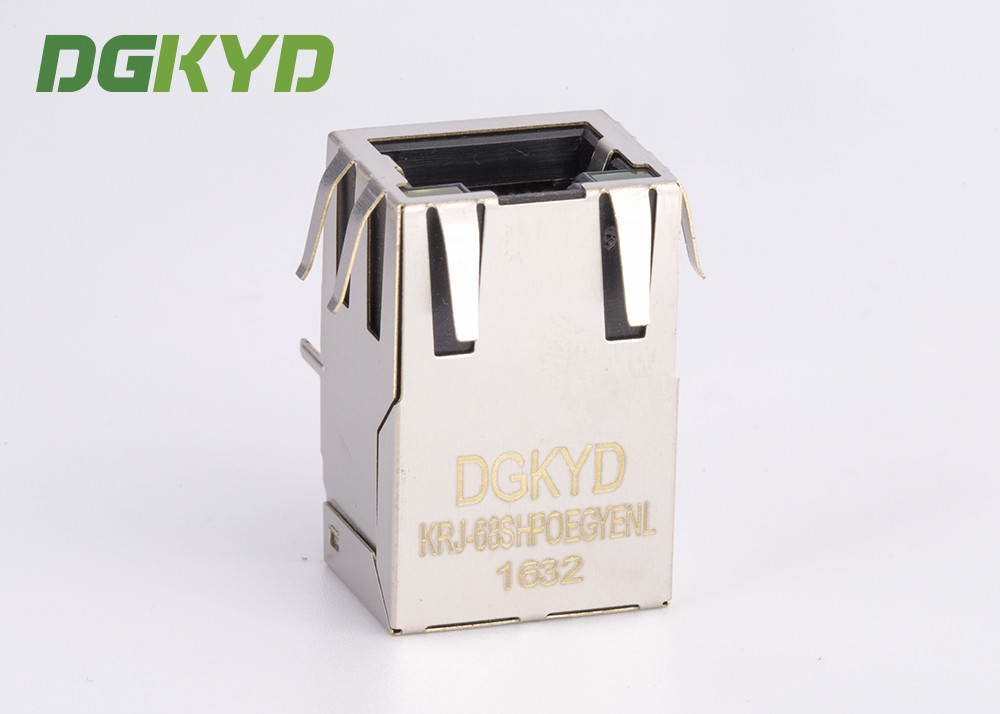

PoE RJ45 Ethernet Connector side entry tab up 100Mb rj45 modular jack customized

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-68SHPOEGYENL

Detail Information

RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP Product Name: RJ45 Ethernet Jack
Feature: High Performance,magnetic LEDS/EMI Fingers: Custom As Your Need
Gender: Socket Application: Lan,bridge,PC,router,usb Hub Network Rj45
High Light:

ethernet cable connections

,

multi rj45 connector

,

100Mb RJ45 Ethernet Connector

Product Description

Side Entry PoE RJ45 Ethernet Connector Front Back Cylindrical Pin High Performance

  • 10/100Base-Tx RJ45 single port 1X1 Side Entry (Right Angle) with LEDS
  • Single port 1X1 Tab-up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:10
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant

Material specifications:

  • Plastic core:Glass fiber filler PBT/PA66Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT/PA66 Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

PoE RJ45 Ethernet Connector side entry tab up 100Mb rj45 modular jack customized 0PoE RJ45 Ethernet Connector side entry tab up 100Mb rj45 modular jack customized 1PoE RJ45 Ethernet Connector side entry tab up 100Mb rj45 modular jack customized 2

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL/ADSL and so on.



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
