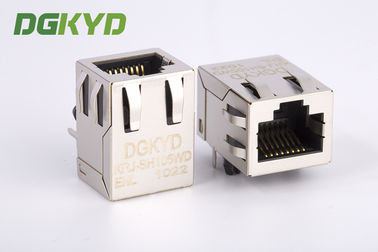

2.5Gbit / s RJ45 Ethernet Connector , high performance industrial grade Modular Rj45 Jack

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD811Q035FJ1A1DBP(2.5G)

Detail Information

EMI: YES PCB Mount Style: DIP
Performance Category: 2.5G Product Name: RJ45 Modular Jack
Shield: YES Port Type: Single Port

Product Description

2.5Gbit/s RJ45 ethernet modular jack, high performance industrial grade connector

ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
SPEED 2.5G
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE RIGHT ANGLE
PACKAGE THT
NUMBER OF POSITIONS 12
NUMBER OF PORTS RJ45
NUMBER OF CONTACTS 8
LED OPTION GO/Y
LATCH UP
KEYED NO
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING 30U GOLD PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK























































► Product Featrues



• EMI protection with shielded
• Gold plating up to 30U
• Minimum of 750 mating cycles


Applications

  • Ethernet speed up to 10 Gbit/s
  • Power over Ethernet PoE and PoE+
  • Compliant with most IC’s for Ethernet applications such as Intel, AMD, Microchip and Realtek
  • Hub, Router, Switches, IPcameras, IoT


► Product Drawing




2.5Gbit / s RJ45 Ethernet Connector , high performance industrial grade Modular Rj45 Jack

2.5Gbit / s RJ45 Ethernet Connector , high performance industrial grade Modular Rj45 Jack

This electronic component has been designed and developed for usage in general electronic equipment. Before incorporating this component into any equipment where higher safety and reliability is especially required or if there is the possibility of direct damage or injury to human body, for example in the range of aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc, Würth Elektronik eiSos GmbH must be informed before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
