Top Entry Rj45 Lan Jack , Cat6 Gigabit Rj45 Modular Jack With Transformer

China Top Entry Rj45 Lan Jack , Cat6 Gigabit Rj45 Modular Jack With Transformer supplier
Top Entry Rj45 Lan Jack , Cat6 Gigabit Rj45 Modular Jack With Transformer supplier Top Entry Rj45 Lan Jack , Cat6 Gigabit Rj45 Modular Jack With Transformer supplier Top Entry Rj45 Lan Jack , Cat6 Gigabit Rj45 Modular Jack With Transformer supplier Top Entry Rj45 Lan Jack , Cat6 Gigabit Rj45 Modular Jack With Transformer supplier Top Entry Rj45 Lan Jack , Cat6 Gigabit Rj45 Modular Jack With Transformer supplier Top Entry Rj45 Lan Jack , Cat6 Gigabit Rj45 Modular Jack With Transformer supplier

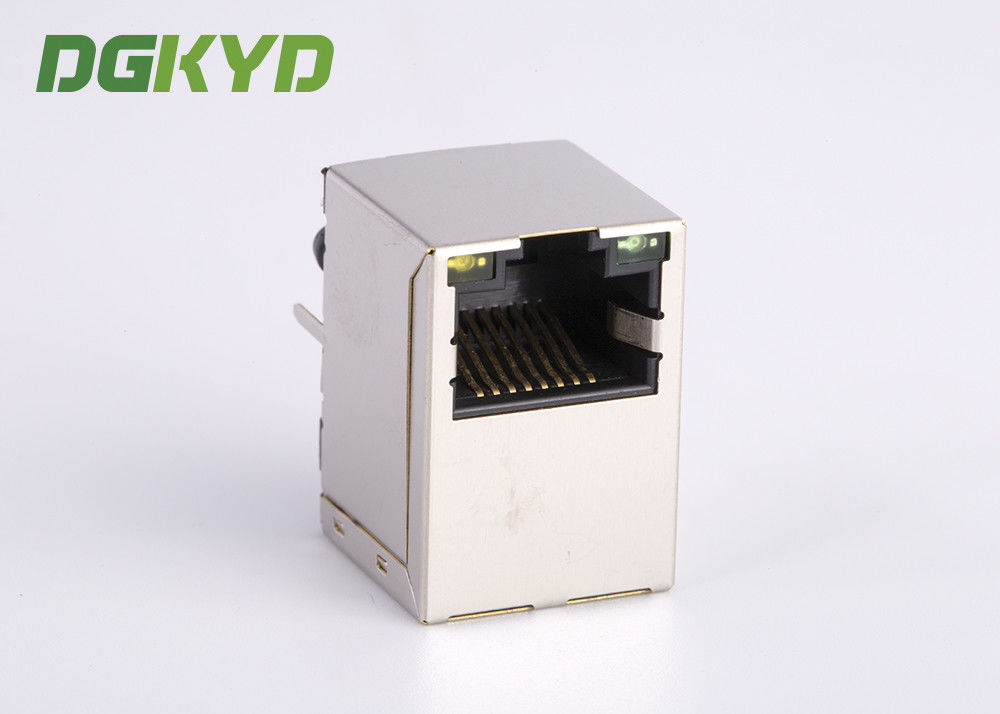

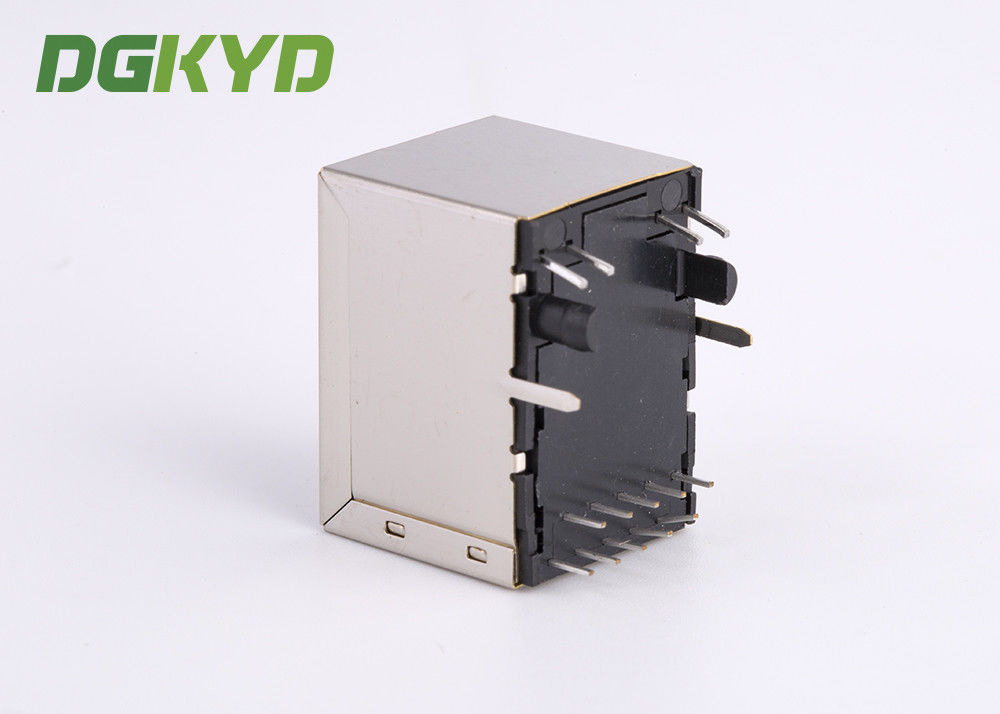

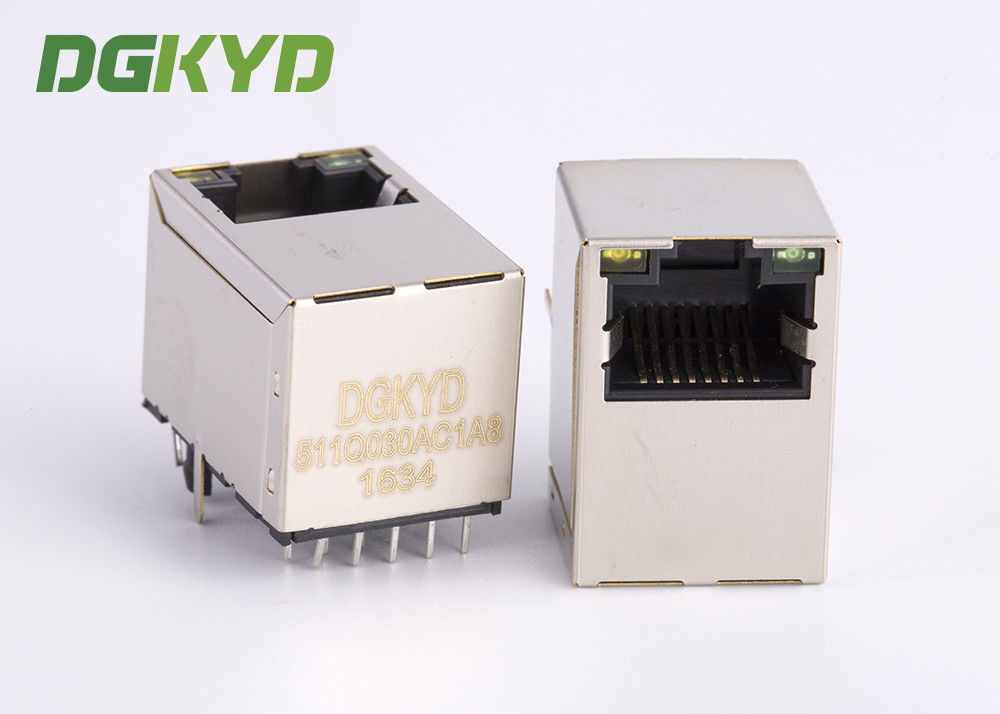

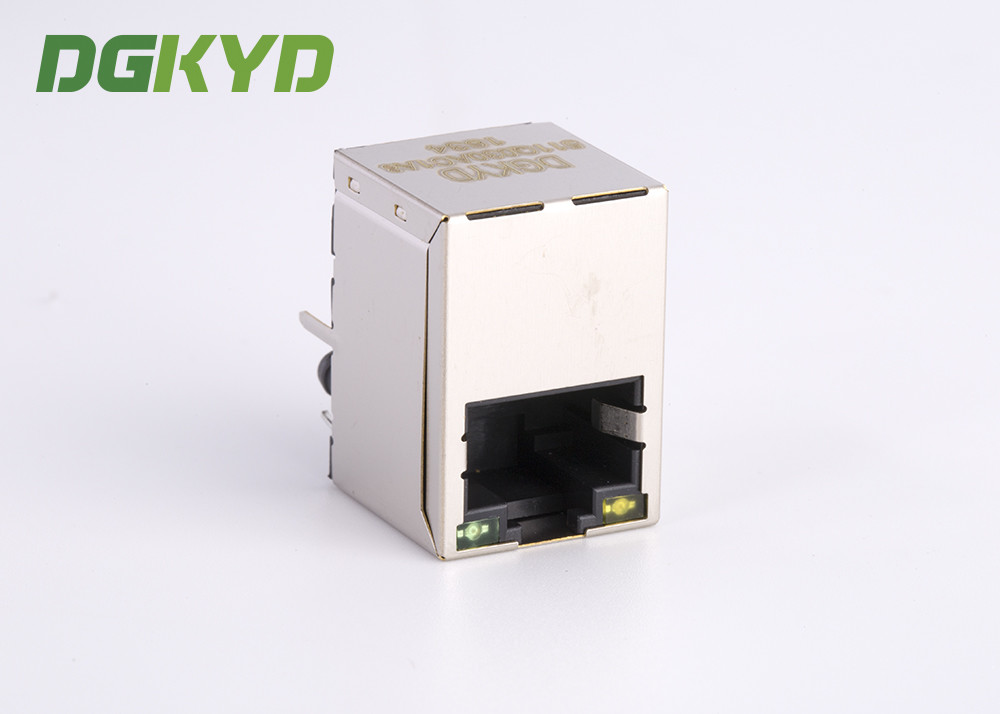

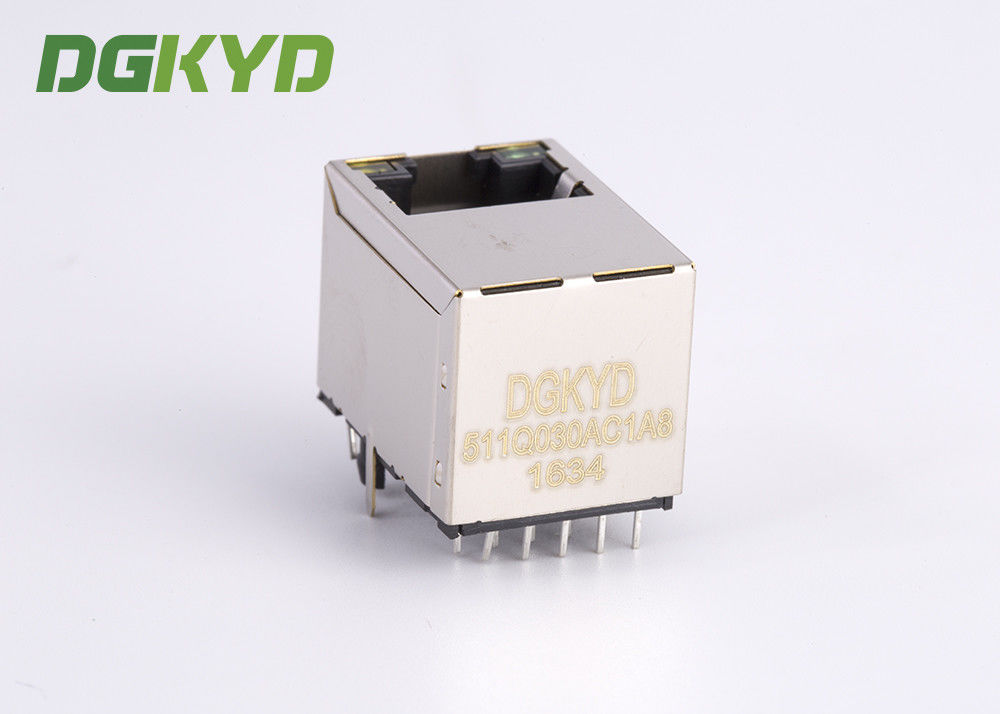

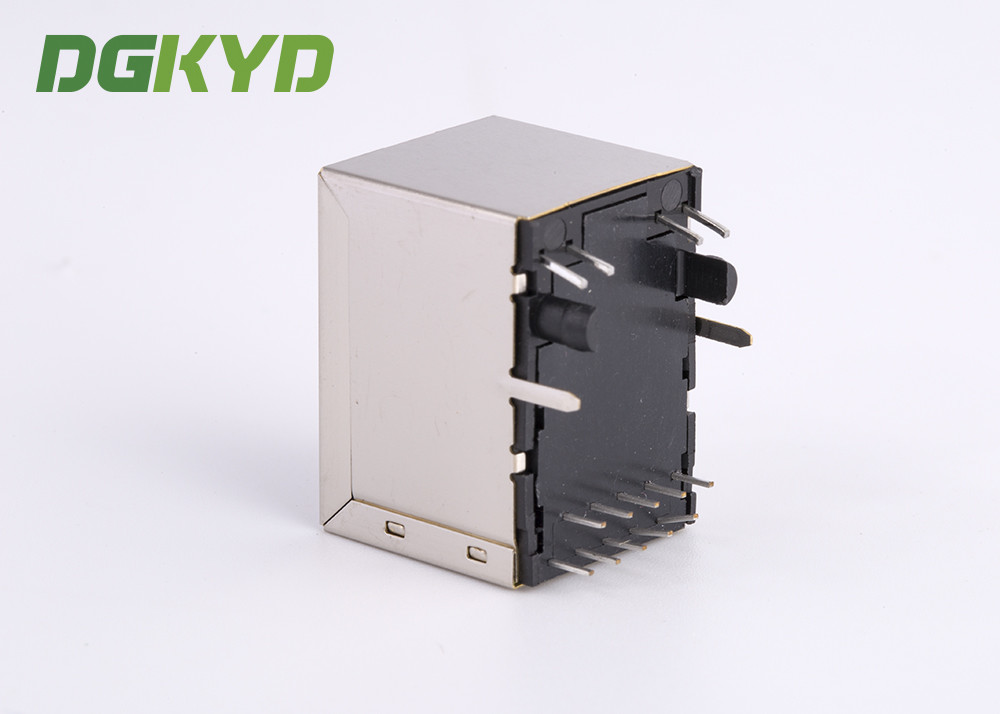

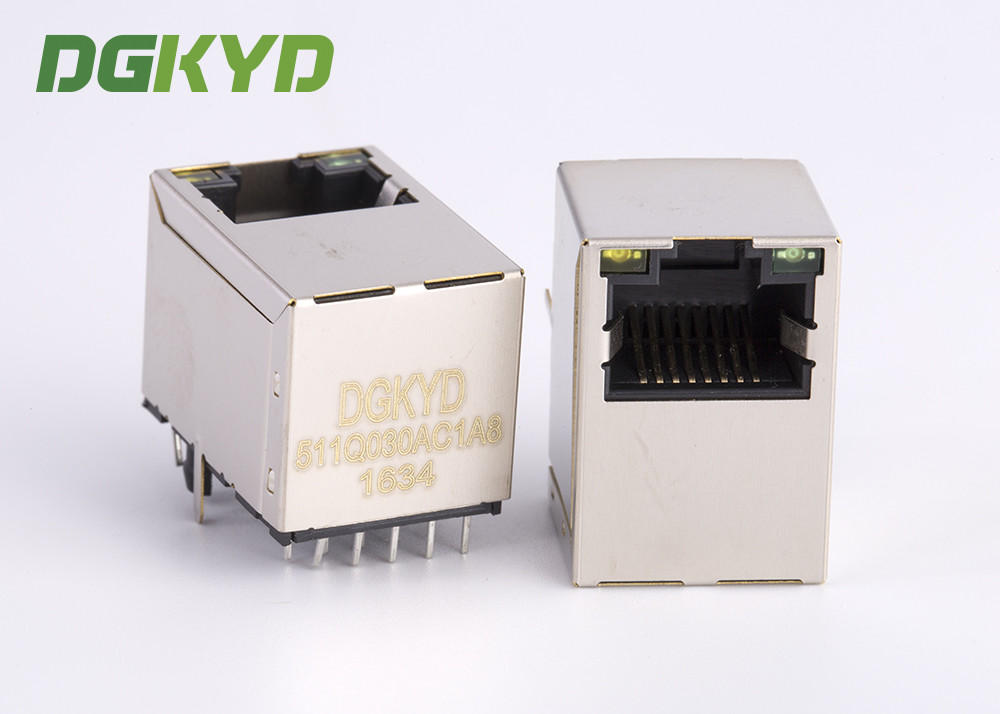

Large Image :  Top Entry Rj45 Lan Jack , Cat6 Gigabit Rj45 Modular Jack With Transformer

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: DGKYD511Q030AC1A8

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Modular Jack & Plug Interface Type: RJ45 With Transformer Connector Style: RJ45 Female Jack
Shielded: Metal Shielded Speed: Cat6
Status Indicator: LED Latch Orientation: Top Entry



Top Entry Rj45 Lan Jack , Cat6 Gigabit Rj45 Modular Jack With Transformer



ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP No
PCB MOUNT ANGLE VERTICAL
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION YES
LATCH ORIENTATION TOP ENTRY
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK



















































► Product Features




MECHANICAL

Housing Material: Glass Filled Polyester or High Temp. UL94V-0.

Insert Material: Glass Filled Polyester UL94V-0.

Back Plate Material: Glass Filled Polyester UL94V-0.

LED Size:7*3.05*1.85, P=2.54mm.

Shield Material: Copper Alloy 0.25mm Thickness Nickel Plating.

Contact Material: Phosphor Bronze 0.35mm Thickness.

Plating: Gold Plating over Nickel.

PCB Retention Pre-Solder: 1 LB Min.

PCB Retention Post-Solder: 10 LBS Min.



ENVIRONMENTAL

Storage Temperature: -40℃ to +85℃

Operation Temperature:0℃ to +70℃

Wave Soldering Temperature:255~265℃ (5~10 Seconds)

Mates with Modular Plug Conforming to FCC Part 68, Subpart F.



Applications:

  • Programmable Logic Controllers
  • IO Modules
  • Servo Drive
  • Industrial PC
  • All Industrial applications requiring Ethernet or RJ45 connectivity

► Product Drawing


Top Entry Rj45 Lan Jack , Cat6 Gigabit Rj45 Modular Jack With Transformer
