16.9MM height Cat5e Rj45 Lan Jack , vertical RJ45 modular jack with magnetic

China 16.9MM height Cat5e Rj45 Lan Jack , vertical RJ45 modular jack with magnetic supplier
16.9MM height Cat5e Rj45 Lan Jack , vertical RJ45 modular jack with magnetic supplier 16.9MM height Cat5e Rj45 Lan Jack , vertical RJ45 modular jack with magnetic supplier 16.9MM height Cat5e Rj45 Lan Jack , vertical RJ45 modular jack with magnetic supplier 16.9MM height Cat5e Rj45 Lan Jack , vertical RJ45 modular jack with magnetic supplier 16.9MM height Cat5e Rj45 Lan Jack , vertical RJ45 modular jack with magnetic supplier 16.9MM height Cat5e Rj45 Lan Jack , vertical RJ45 modular jack with magnetic supplier

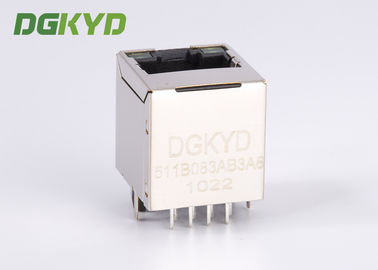

Large Image :  16.9MM height Cat5e Rj45 Lan Jack , vertical RJ45 modular jack with magnetic

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: DGKYD511B083AB3A8

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Modular Jack & Plug Interface Type: RJ45 With Magnetics Connector Style: RJ45 Female Jack
Shielded: Metal Shielded Speed: Cat5e
Status Indicator: LED Latch Orientation: Top Entry

16.9MM height shield Cat5e vertical RJ45 magnetic modular jack , top entry

ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP No
PCB MOUNT ANGLE VERTICAL
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION YES
LATCH ORIENTATION TOP ENTRY
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK



















































► Product Features




  • Extensive temperature range between -40 to +85 degrees C
  • Minimum product life requirement of 10 years
  • 260 degrees C PIP soldering reflow capability
  • Plating thickness 0,76µm [30µinch] gold over 1,27µm [50µinch] nickel

ELECTRICAL

Voltage Rating: 125 VAC RMS.

Current Rating: 1.5AMP

Contact Resistance: 50 Milliohms MAX.

Insulation Resistance: 1000 Megohms MIN@500 VDC

Dielectric Strength: 1000 VAC RMS 60Hz, 1MIN.



Applications:

  • Programmable Logic Controllers
  • IO Modules
  • Servo Drive
  • Industrial PC
  • All Industrial applications requiring Ethernet or RJ45 connectivity

► Product Drawing


16.9MM height Cat5e Rj45 Lan Jack , vertical RJ45 modular jack with magnetic
