ODM/OEM factory KRJ-201QWDENL 1000BASE cat 6 dual port Gigabit Ethernet RJ45 Modular Jack Female

China ODM/OEM factory KRJ-201QWDENL 1000BASE cat 6 dual port Gigabit Ethernet RJ45 Modular Jack Female supplier

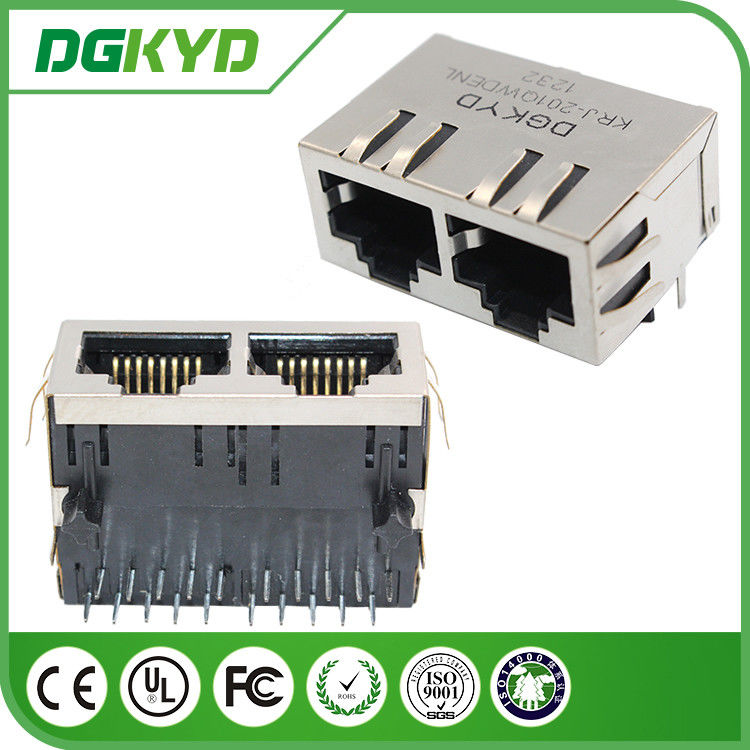

Large Image :  ODM/OEM factory KRJ-201QWDENL 1000BASE cat 6 dual port Gigabit Ethernet RJ45 Modular Jack Female

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-201QWDENL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP Application: Lan,bridge,PC,router,usb Hub Network Rj45 And Other Ethernet Devices
LEDS/EMI Fingers: For Optional Gender: Female RJ45
Product Name: RJ45 Ethernet Jack Feature: High Performance,magnetic

 ► Product Description


ODM/OEM factory KRJ-201QWDENL 1000BASE cat 6 dual port Gigabit Ethernet RJ45 Modular Jack Female

► Product Datasheet


Part Number
KRJ-201QWDENL
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Connector Assembly
Latch Style
Standard
Latch
down
Filter
With Filter
LED Option
Without LED
LED Color
n/a
Panel Stops
With Panel Stops
Shielded
YES
Applies To 
Printed Circuit Board
Performance Speed
10/100/1000 BASE-T
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
2 ports
Number of Positions 
10
Jack Configuration
1*2
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold 6u/15u/30u/50u
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material 
PBT Polyester
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0



  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Length:21.3mm

Electrical Specifications at 25℃
.Insertion Loss:1-100MHZ -1.0dBmax
.Rturn Loss:1-30MHZ -16.0dBmin
            30-60MHZ -14.0dBmin
            60-80MHZ -10.0dBmin
.Cross Talk:1-30MHZ -40.0dBmin
         30-60MHZ -35.0dBmin
         60-80MHZ -30.0dBmin
.CMR:1-100MHZ -35dBmin
.Hi-pot:1500v AC 6S 1mA
.Turn Ratio:1CT:1CT±3%
.OCL:350uH  @100KHZ 100Mv 8mA  DC

Applications:

• Integrated RJ45 connector main used to :
• 10/100/1000M net card, PCMCIA net card, USB Hub, network switch, router, fiber optic
transceivers, optical transceiver, IP phone, internet set-top box,internet camera,net bridge,computer, telecommunication,MODEM,HomePNA, DSL/ADSL and so on.

► Detailed Images


ODM/OEM factory KRJ-201QWDENL 1000BASE cat 6 dual port Gigabit Ethernet RJ45 Modular Jack Female
► Product Drawing


ODM/OEM factory KRJ-201QWDENL 1000BASE cat 6 dual port Gigabit Ethernet RJ45 Modular Jack Female
