DGKYD21B083DC2A4D 2X1 dual port RJ45 connector, 100Mbps integrated filter, communication network port socket

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD21B083DC2A4D

Detail Information

Application: Lan,bridge,PC,router,usb Hub Network Rj45,printer Gender: Female RJ45
RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP Product Name: Dual Deck RJ45 Ethernet Connector
High Light:

dual port rj45 connector

,

dual rj45 connector

,

2x1 Stacked megabit RJ45 Ethernet connector

Product Description

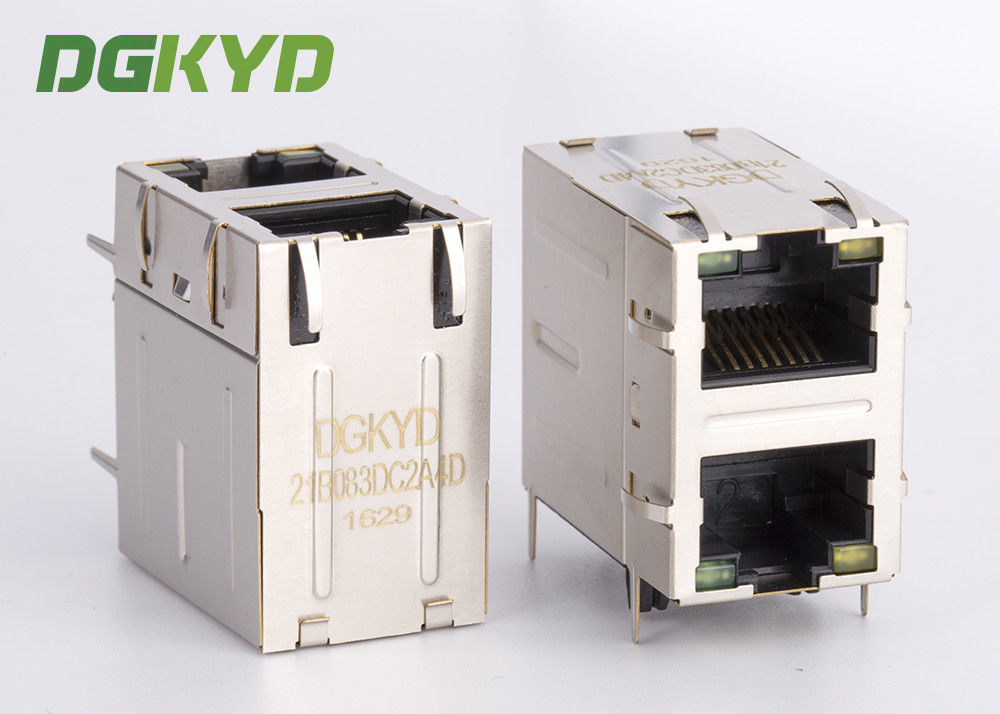

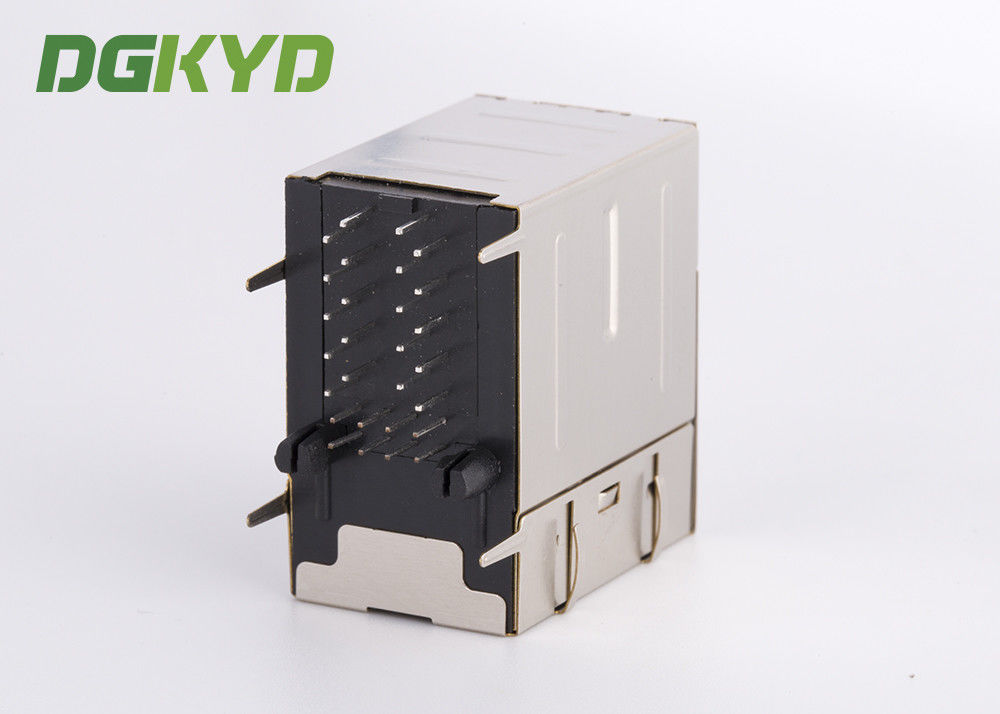

2x1 Stacked megabit RJ45 Ethernet connector, magnetics RJ45 Female Jack

DGKYD21B083DC2A4D068.pdf

Part Number
DGKYD21B083DC2A4D
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
Down&Up
Filter
With Filter
LED Option
With LED
LED Color
Green/Yellow
Panel Stops
With Panel Stops
Shielded
Yes
Applies To 
Printed Circuit Board
Performance Speed
10/100/ BASE-T
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
Dual ports
Number of Positions 
10
Jack Configuration
2 x 1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold 6u/15u/30u/50u
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material 
PBT Polyester
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0


Descriptions:

  • 2 port 2X1 RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Length:29.00mm


Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
customer firstly ,100% test, 0 defect, short lead time are our best advantages.
