PCB mount 10 / 100 BASE 2 Port RJ45 Network Connector with Lan Transformer 100BASE

China PCB mount 10 / 100 BASE 2 Port RJ45 Network Connector with Lan Transformer 100BASE supplier
PCB mount 10 / 100 BASE 2 Port RJ45 Network Connector with Lan Transformer 100BASE supplier PCB mount 10 / 100 BASE 2 Port RJ45 Network Connector with Lan Transformer 100BASE supplier PCB mount 10 / 100 BASE 2 Port RJ45 Network Connector with Lan Transformer 100BASE supplier PCB mount 10 / 100 BASE 2 Port RJ45 Network Connector with Lan Transformer 100BASE supplier PCB mount 10 / 100 BASE 2 Port RJ45 Network Connector with Lan Transformer 100BASE supplier PCB mount 10 / 100 BASE 2 Port RJ45 Network Connector with Lan Transformer 100BASE supplier

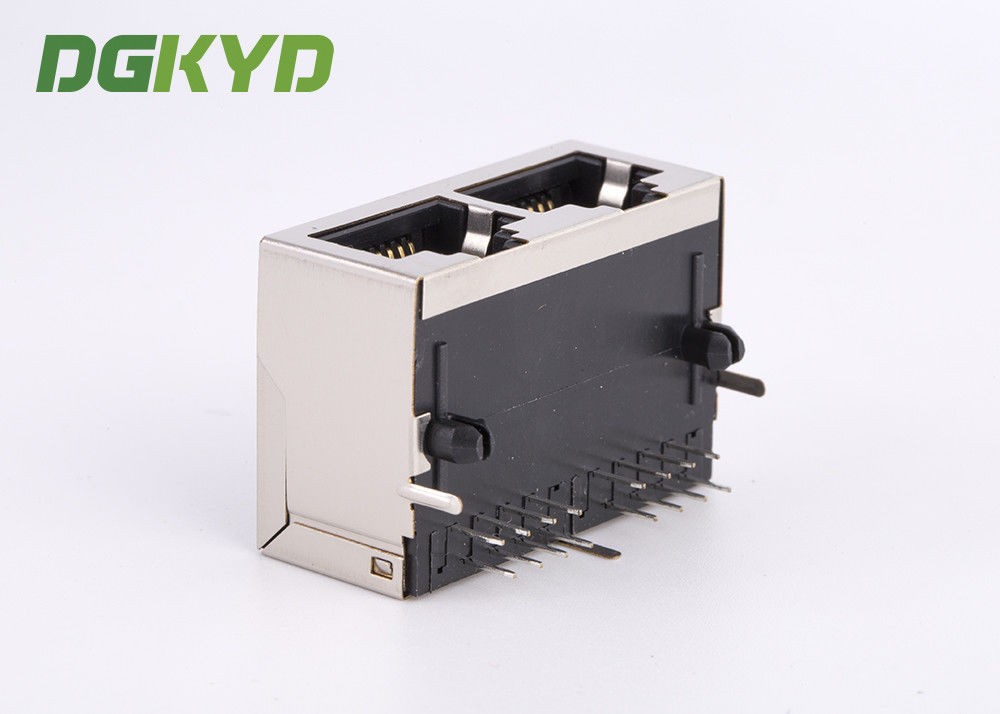

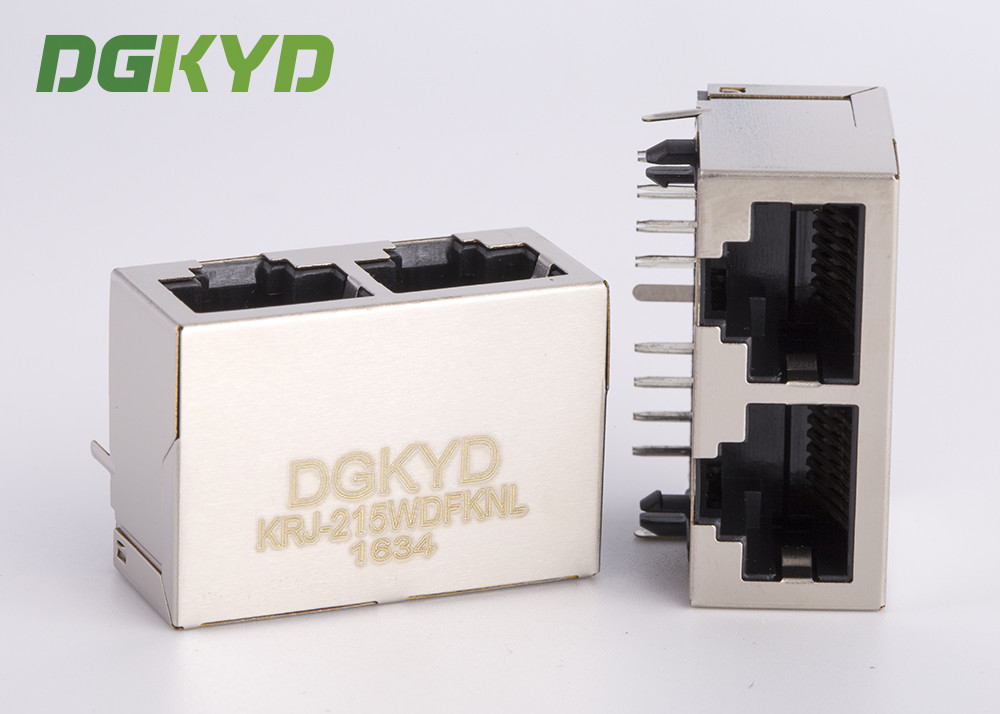

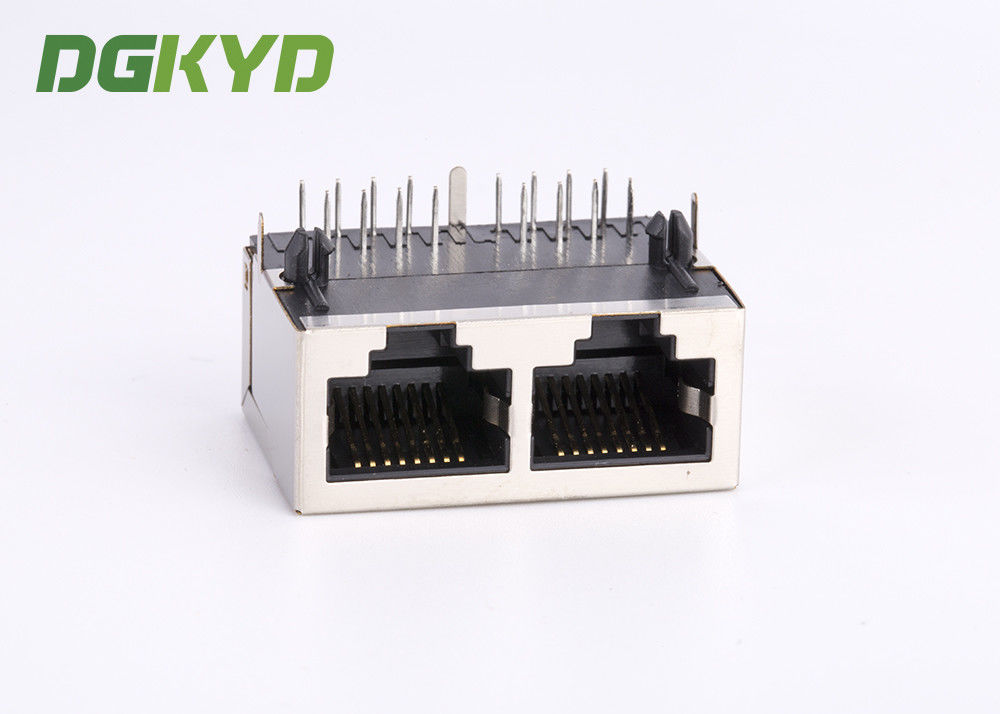

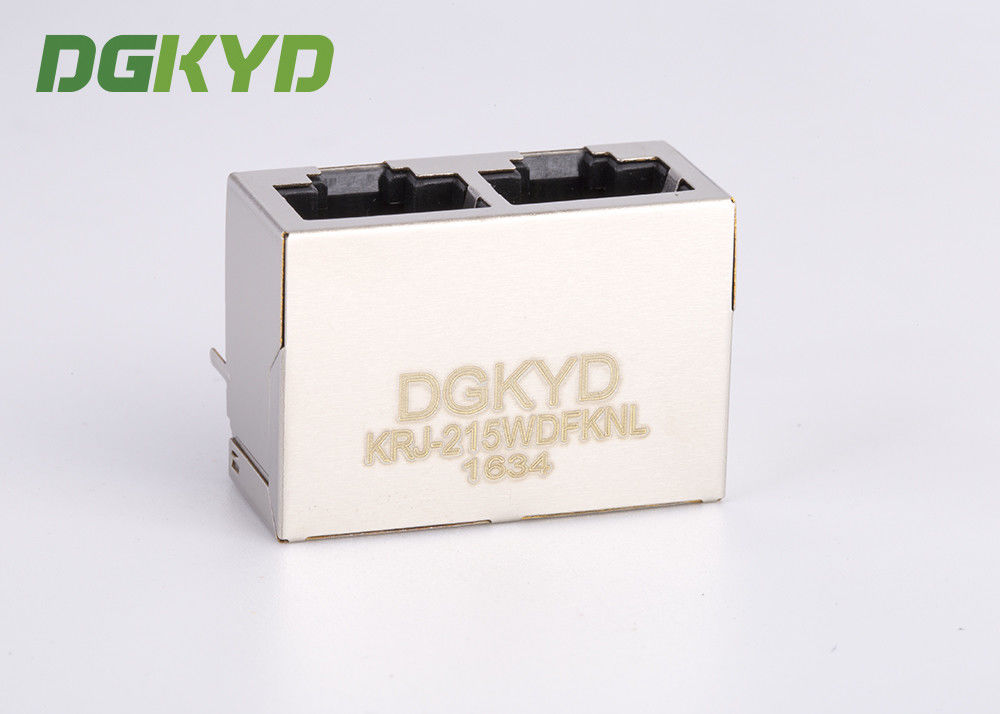

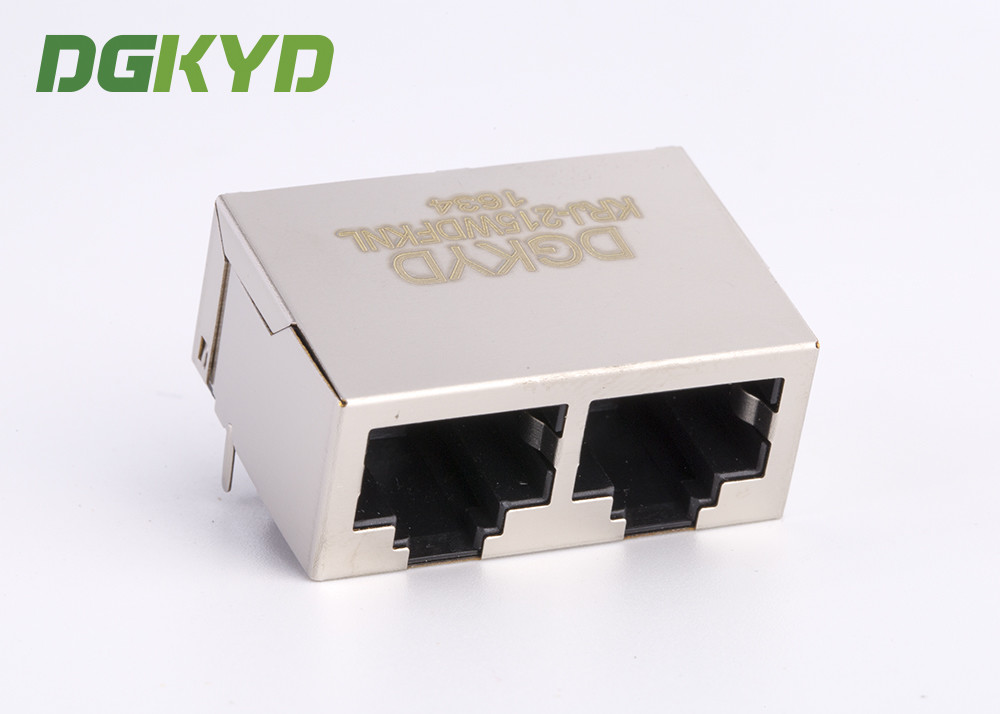

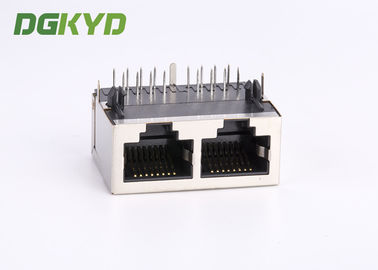

Large Image :  PCB mount 10 / 100 BASE 2 Port RJ45 Network Connector with Lan Transformer 100BASE

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-215WDFKNL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Type: RJ45 Female Product Name: RJ45 With Transformer
Housing: Phenolic, PBT Black (UL94V-0) Plastic Core: Glass Fiber Filler PBT Black(UL94V-0),ROHS
Shield RJ45: Yes No.Port: GANGED DUAL PORT

PCB 2 Port RJ45 Network Connector Lan Transformer 10/100BASE



10/100 BASE 1x2 Tab Down Transformer RJ45 KRJ-215WDFKNL

  • 10/100Base-Tx RJ45 double port 1X2 Side Entry (Right Angle) without LED
  • Double port 1X2 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:NO
  • EMI fingers:NO



Material specifications:



  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the

surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed,

gold finger insert and pull life should be 750 times above



PCB mount 10 / 100 BASE 2 Port RJ45 Network Connector with Lan Transformer 100BASE

Applications:



Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL/ADSL and so on.



For example:

PCB mount 10 / 100 BASE 2 Port RJ45 Network Connector with Lan Transformer 100BASE
