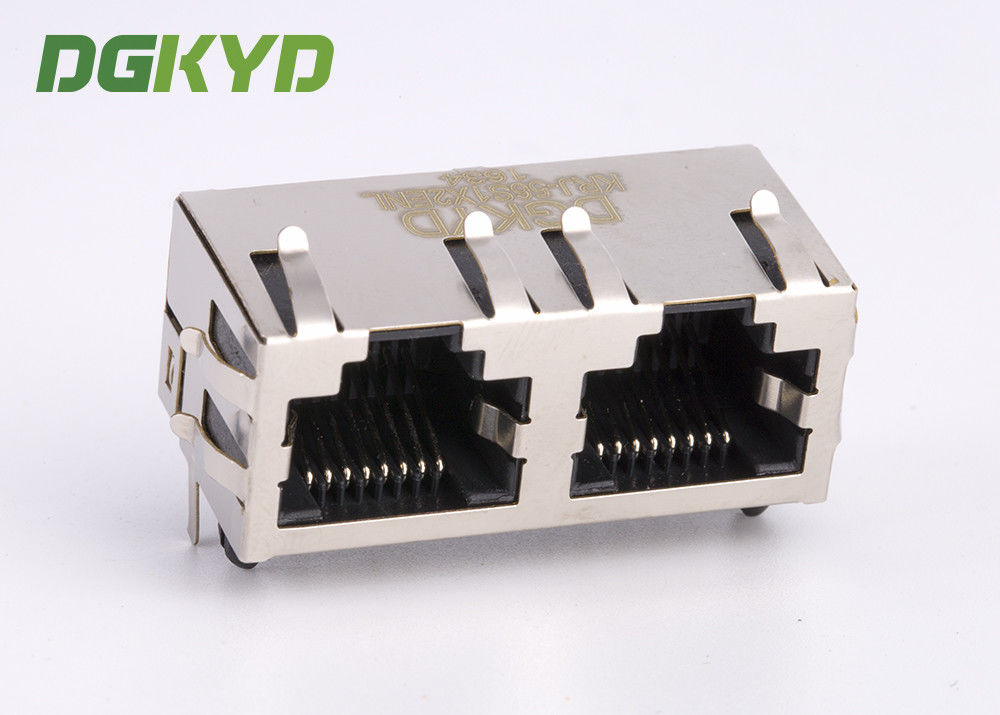

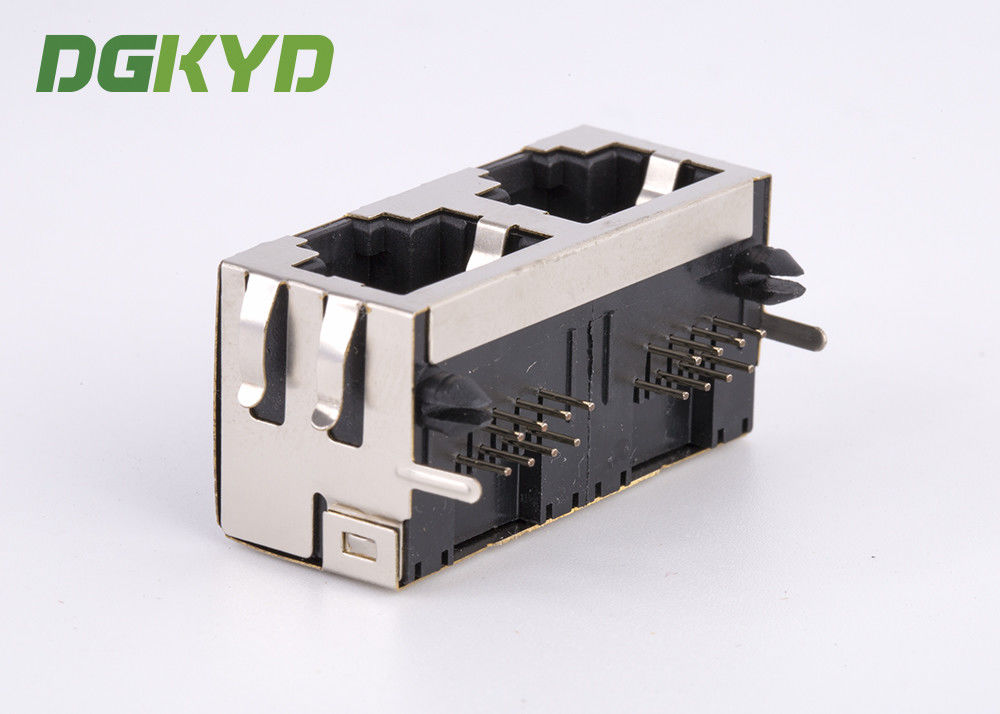

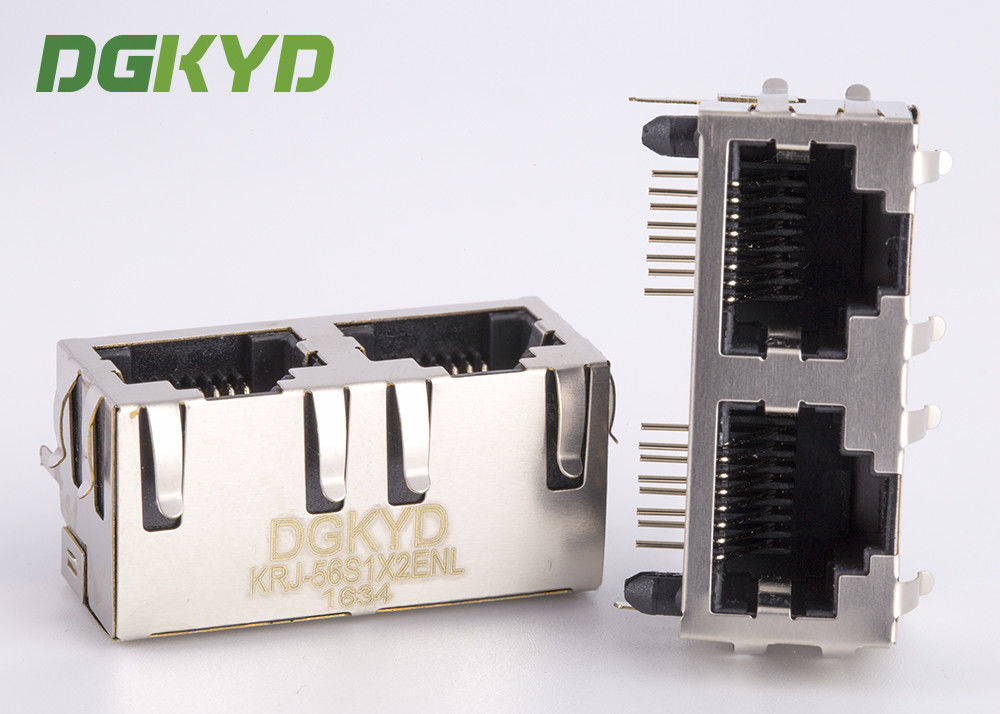

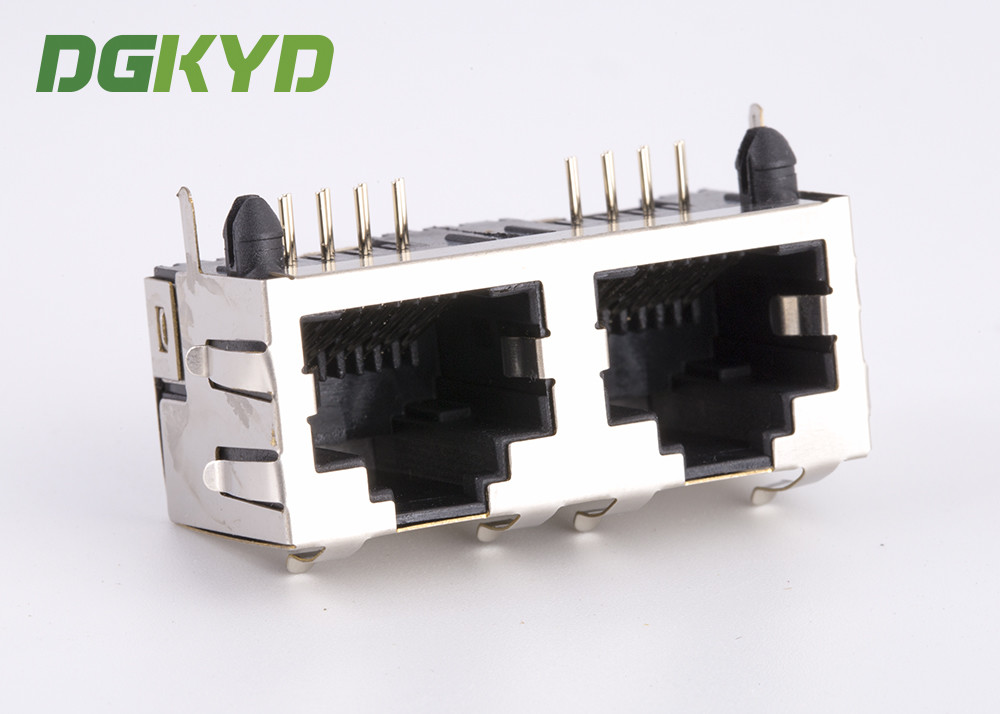

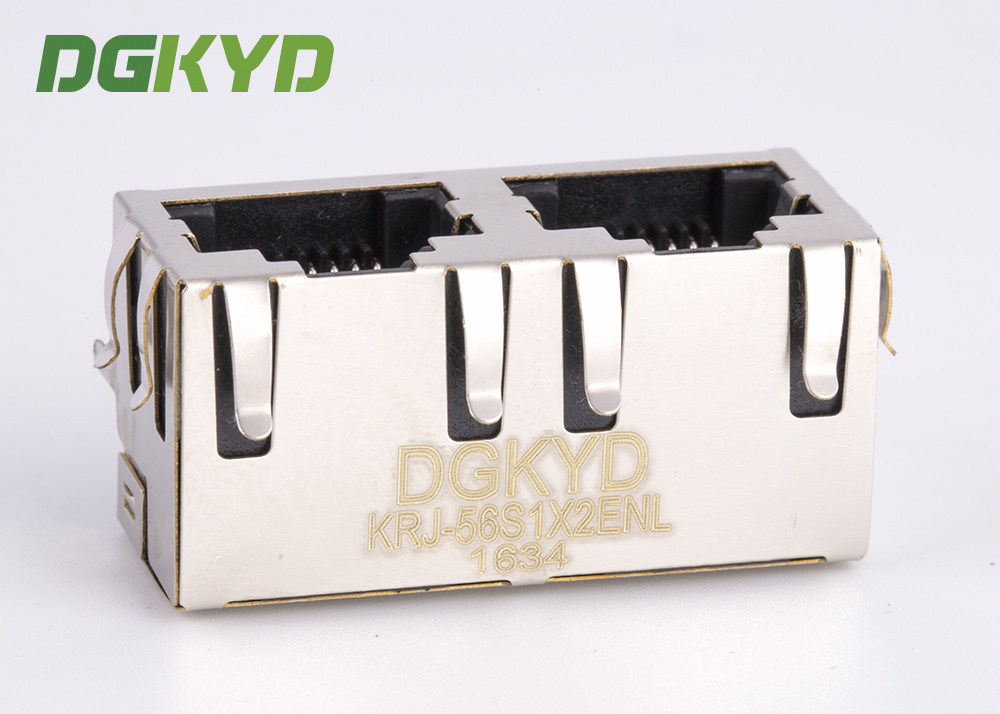

Right angle PCB mount dual port combo RJ45 connector ethernet modular jack

China Right angle PCB mount dual port combo RJ45 connector ethernet modular jack supplier
Right angle PCB mount dual port combo RJ45 connector ethernet modular jack supplier Right angle PCB mount dual port combo RJ45 connector ethernet modular jack supplier Right angle PCB mount dual port combo RJ45 connector ethernet modular jack supplier Right angle PCB mount dual port combo RJ45 connector ethernet modular jack supplier Right angle PCB mount dual port combo RJ45 connector ethernet modular jack supplier Right angle PCB mount dual port combo RJ45 connector ethernet modular jack supplier

Large Image :  Right angle PCB mount dual port combo RJ45 connector ethernet modular jack

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-56S8P8C1X2ENL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Product Name: Dual Port RJ45 Connector Type: RJ45
Housing: Phenolic, PBT Black (UL94V-0) Plastic Core: Glass Fiber Filler PBT Black(UL94V-0),ROHS
Shield: Yes No.Port: 2 Ports

Side entry PCB mount double port combo RJ45 connector ethernet modular jack

Right angle PCB mount dual port combo RJ45 connector ethernet modular jack

  • 10/100/1000Base-Tx RJ45 2 port 1X2 Side Entry with LEDS
  • Double port 1X2 Tab-up
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant
  • EMI finger:NO

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

• Integrated RJ45 connector main used to :

• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL/ADSL and so on.
