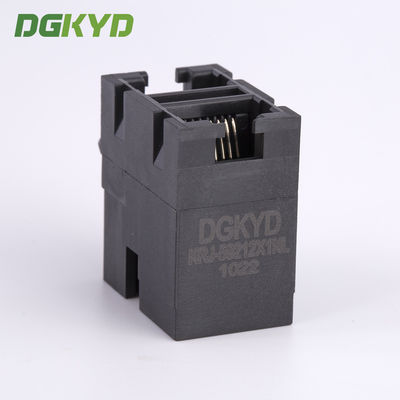

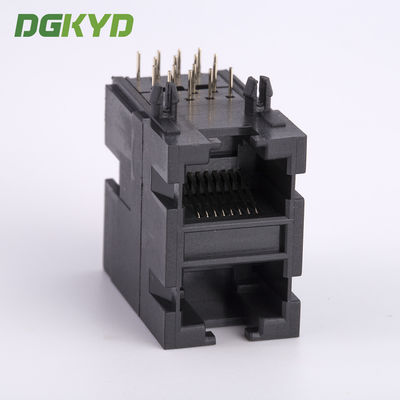

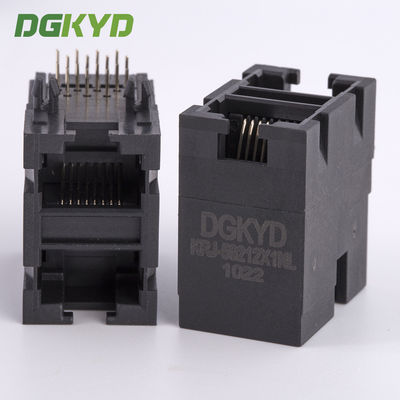

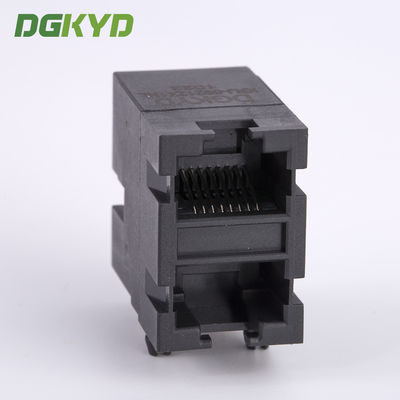

10/100 BASE Stack 2x1 Dual Port RJ45 Female Jack Double Deck Ethernet Socket

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-5921 2X1NL

Detail Information
Application:	Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc	Feature:	Double Deck
OEM/ODM:	Yes	Type:	RJ45
Gender:	Female	Product Name:	RJ45 Modular Jack
High Light:	dual port rj45 , dual rj45 connector , Dual Port RJ45 Female Jack

Product Description

10/100BASE 2 x 1 Stacked RJ45 Modular Jacks double decks lan socket

10/100 BASE Stack 2x1 Dual Port RJ45 Female Jack Double Deck Ethernet Socket 0

Descriptions:

10/100Base-Tx RJ45 2 port 2X1 without LED
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Rohs compliant

Applications:

Integrated RJ45 connector main sed to :

• 10/100 M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication, MODEM,HomePNA,DSL／ADSL and so on.

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
