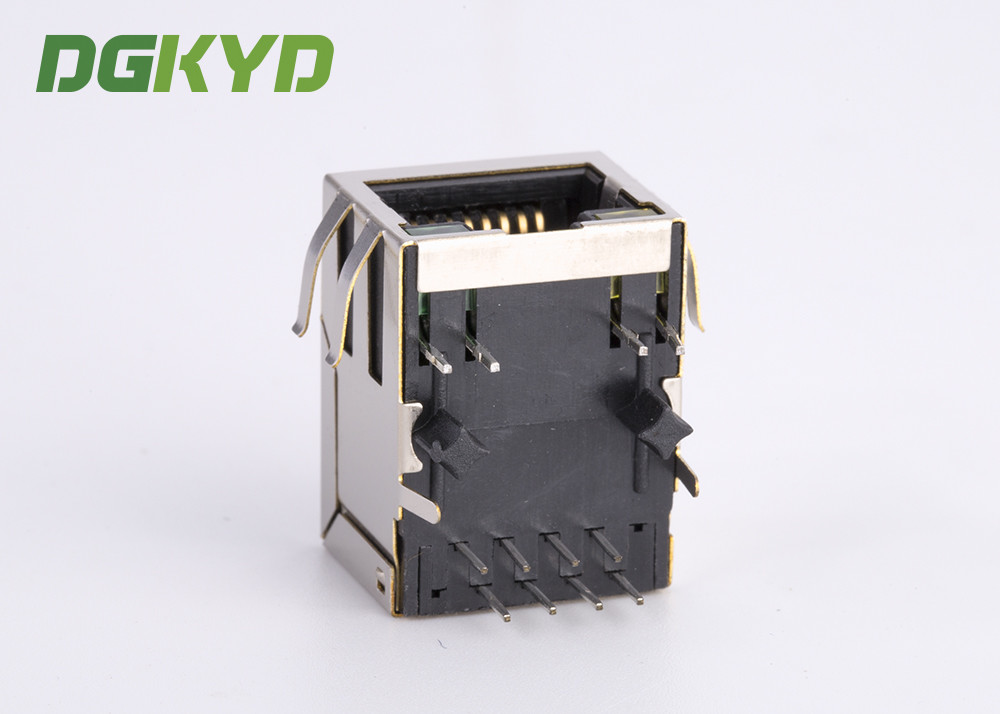

Net Bridge rj45 connector with lan filter 10 / 100 Base side entry factory customized

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin : DongGuan of China Brand Name : DGKYD
Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number : KRJ-134CNL

Detail Information

Application: Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc Feature: Shielded RJ45 Network Port
OEM/ODM: Yes Type: Modular Jack
Gender: Female Jack Product Name: RJ45 Integrated Magnetic Jack

Product Description

Net Bridge Network Filter rj45 connector plug Side Entry 10 / 100Base 1 * 1 Port tab down



Part Number KRJ-060FNL Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Down
Filter With Filter LED Option G/Y LED
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Single Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Housing Material  PBT Polyester Housing Color Black
Operation Temperature -40℃ to +85℃ UL Flammability Rating  UL 94V-0



Net Bridge rj45 connector with lan filter 10 / 100 Base side entry factory customized



Applications:

• ONT

• Femtocell

• Gateway/Router

• Security

• Home Automation

• Displays/TV



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
