21.4mm Tab-Up 100Base 1 X 1 Modular RJ45 Jack Connector With LEDS Side Entry HR871181A

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-SH105GYENL

Detail Information

Product Name: RJ45 Modular Jack Gender: Rj45 Receptacle
Application: Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc Feature: Shielded RJ45 Network Port
OEM/ODM: Yes Type: Multi Pin Rj45 Magjack
High Light:

rj45 connector shielded

,

network rj45 connectors

,

100Base 1 X 1 Modular RJ45 Jack

Product Description

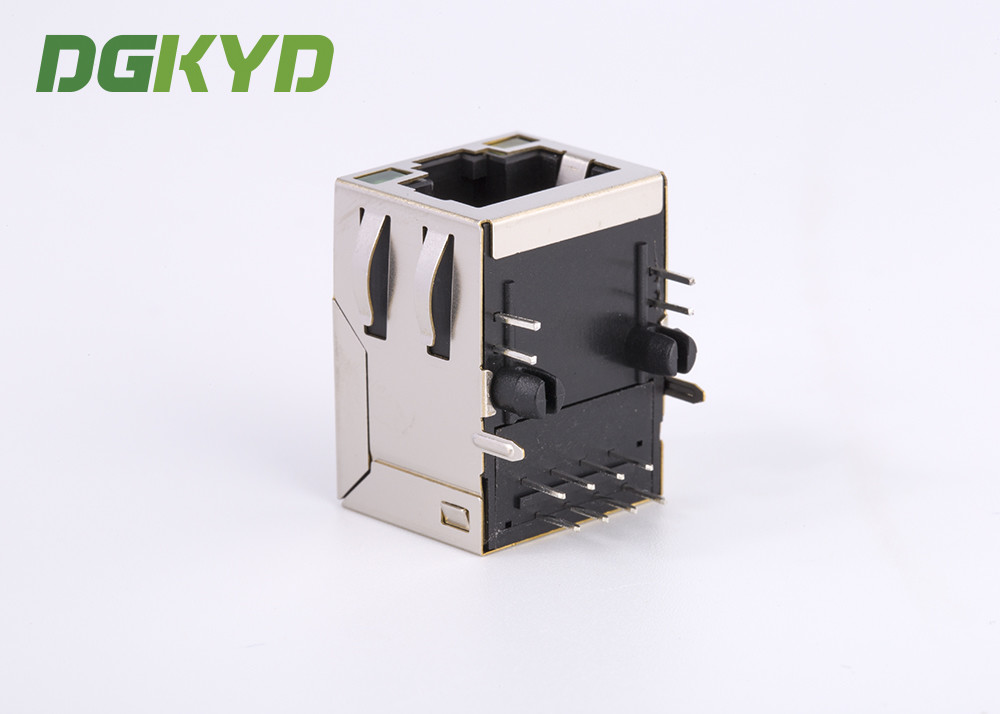

21.4mm Tab-up 100Base 1 x 1 Modular RJ45 Jack  with LEDS Side Entry HR871181A



21.4mm Tab-Up 100Base 1 X 1 Modular RJ45 Jack Connector With LEDS Side Entry HR871181A 021.4mm Tab-Up 100Base 1 X 1 Modular RJ45 Jack Connector With LEDS Side Entry HR871181A 121.4mm Tab-Up 100Base 1 X 1 Modular RJ45 Jack Connector With LEDS Side Entry HR871181A 2

Descriptions:

  • 10/100Base-Tx RJ45 single port 1X1  Side Entry (Right Angle) with LEDS
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shielded:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:YES
  • EMI fingers:NO
  • LEFT LED:Green,RIGHT LED:Yellow
  • Usage:HR871181A/KRJ-SH105GYENL

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,

IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,

DSL/ADSL and so on.



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
