Single Port RJ45 With Integrated Magnetics Modular Jack 1000 Base G/Y LED

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-204GYLNL

Detail Information

Material Color: Black Performance Category: CAT 6
Operating Temp.: -40℃ To +85℃ Rohs Compliance: Compliant
High Light:

rj45 connector pcb

,

rj45 pcb jack

,

single port rj45 pcb jack

Product Description

Single port RJ45 with integrated magnetics modular Jack 1000 base G/Y LED

Descriptions:

  • 10/100/1000Base-Tx RJ45 single port 1X1 side entry
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range : -40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:10
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

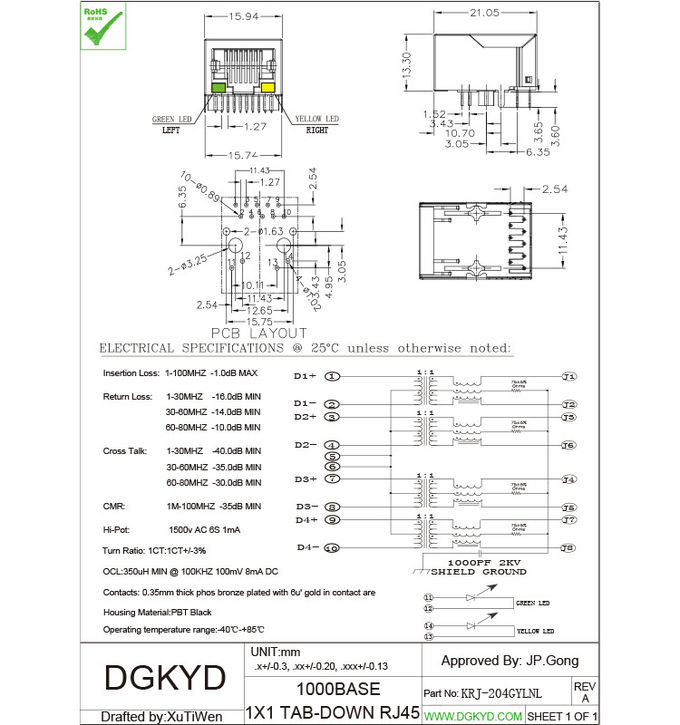

Single Port RJ45 With Integrated Magnetics Modular Jack 1000 Base G/Y LED 0Single Port RJ45 With Integrated Magnetics Modular Jack 1000 Base G/Y LED 1Single Port RJ45 With Integrated Magnetics Modular Jack 1000 Base G/Y LED 2



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
