Integrated 100M RJ45 Magnetics Jack Tab Down Network POE Rj45 Connector

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD111B108AB2A1DP

Detail Information

Performance: Cat5 Featrure: POWER OVER ETHERNET
Product Name: POE RJ45 CONNECTOR Mount Style: PCB Mount
High Light:

gigabit ethernet rj45

,

rj45 connector with magnetics

,

Integrated 100M RJ45 Magnetics Jack

Product Description



Integrated 100M RJ45 Magnetics , Tab Down network rj45 connectors 1 Port



ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION NONE
LATCH ORIENTATION LATCH DOWN
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK

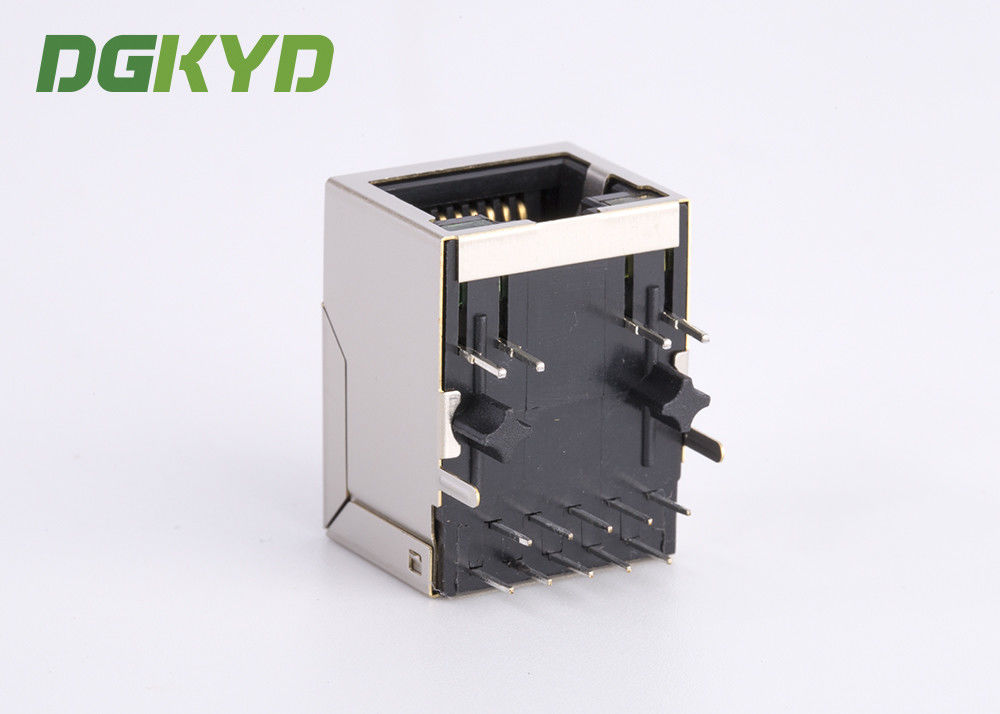

Integrated 100M RJ45 Magnetics Jack Tab Down Network POE Rj45 Connector 0Integrated 100M RJ45 Magnetics Jack Tab Down Network POE Rj45 Connector 1Integrated 100M RJ45 Magnetics Jack Tab Down Network POE Rj45 Connector 2



Key Features

  • Available for 2.5GBASE-T, 5GBASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T, HDBASE-T Speeds
  • RoHS Compliant
  • Top and Side-Entry PCB Mount Options Available
  • Multiple Package Options Available, 1x1, 1xN, 2xN, RJ45/USB, Low Profile, Offset & more.
  • THT, Press Fit, Pin-In-Paste, SMT Options
  • Higher Isolation (TVSS, Surge)
  • Extended Temperature -40°C to +85°C
  • PoE, PoE+ & 4 Pair PoE Capable



Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,

internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL/ADSL and so on.

For example:

Integrated 100M RJ45 Magnetics Jack Tab Down Network POE Rj45 Connector 3

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,

100% test, 0 defect, short lead time are our best advantages
