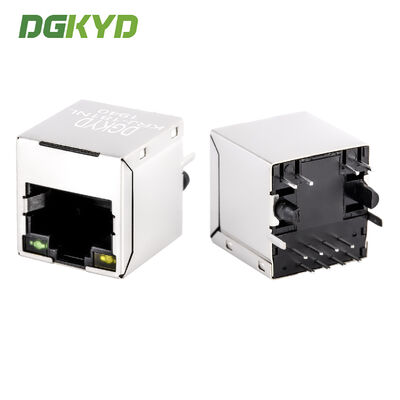

KRJ-181NL 180 Degree Cat5e Rj45 Connector Vertical Mesh Outlet Socket RoHS With Internal Magnetics And LED

Name: KRJ-181NL 180 Degree Cat5e Rj45 Connector Vertical Mesh Outlet Socket RoHS With Internal Magnetics And LED
Brand: DGKYD
SKU: KRJ-181NL
Rating: 4.7 (116 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-181NL

Detail Information
Height:	16.9mm	Port Orientation:	Top Entry
Ports:	1x1	Performance:	Cat5e
Plating:	Glod Plating 6u/15u/30u/50u	Application:	PCB
LED Color:	Yellow/Green	Housing Material:	PBT Black
Operation Temperature:	-40°C~+85°C	Storage Temperature:	-40°C~+85°C
High Light:	180 Degree Cat5e Rj45 Connector , Cat5e Rj45 Connector With Internal Magnetics , LED rj45 connector cat5e

Product Description

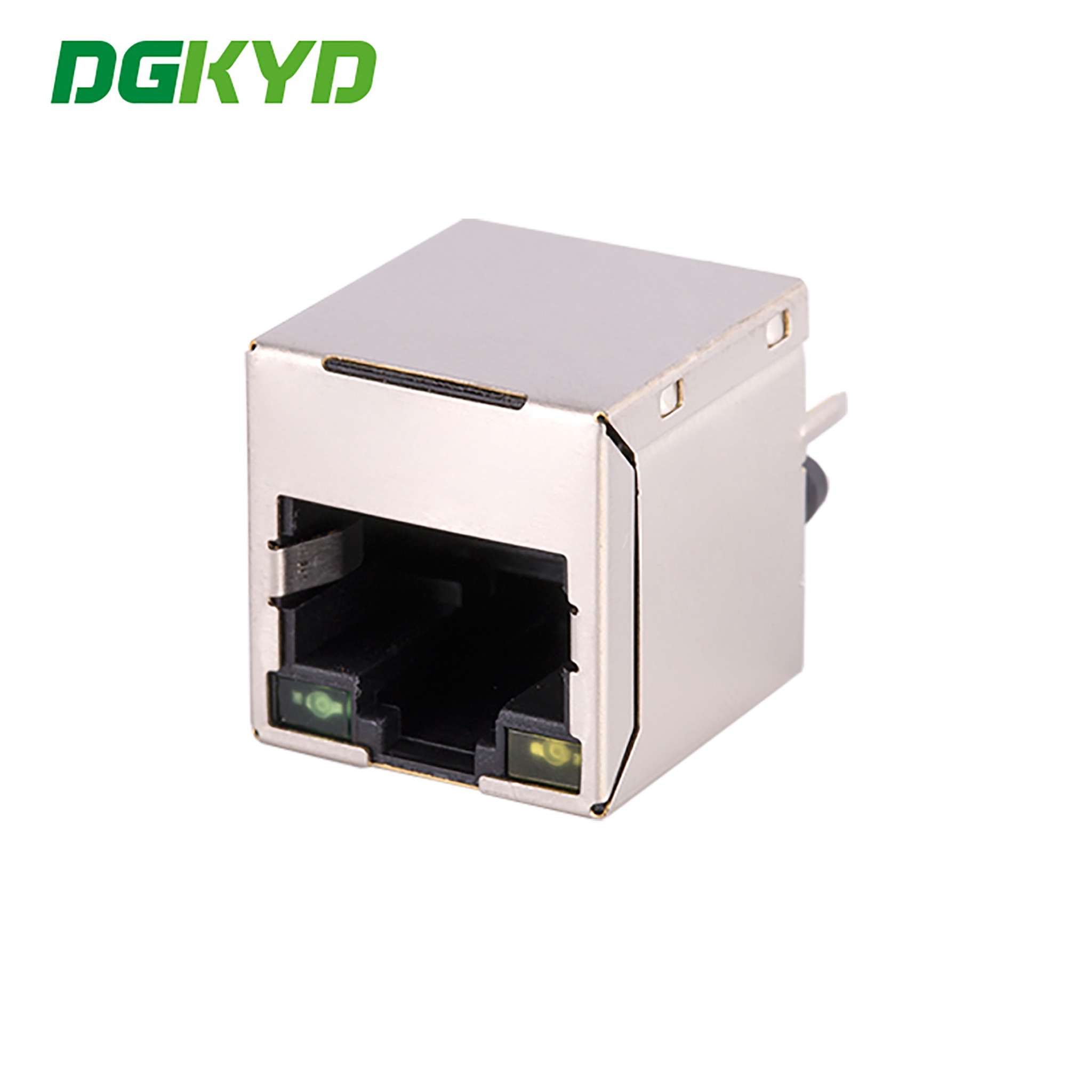

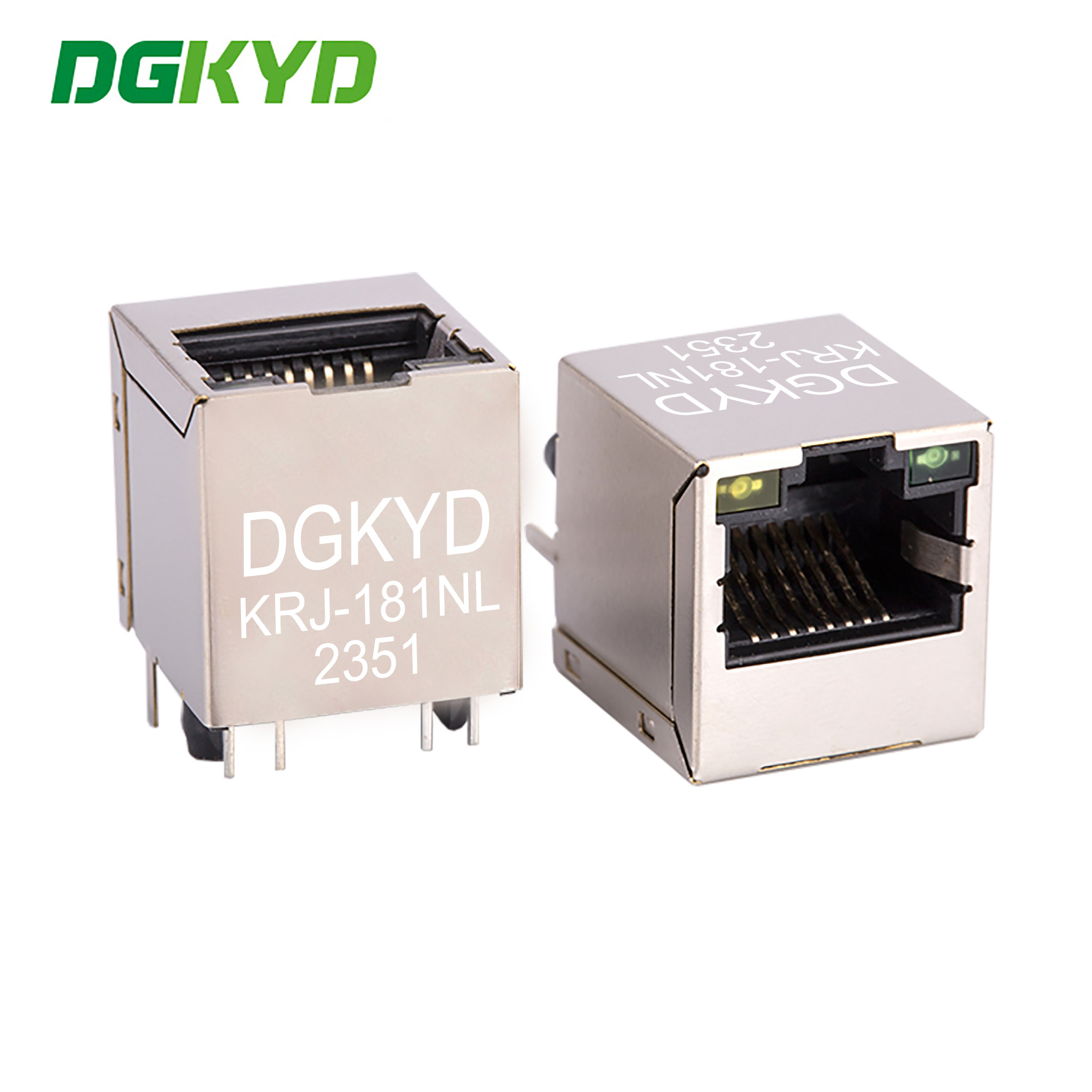

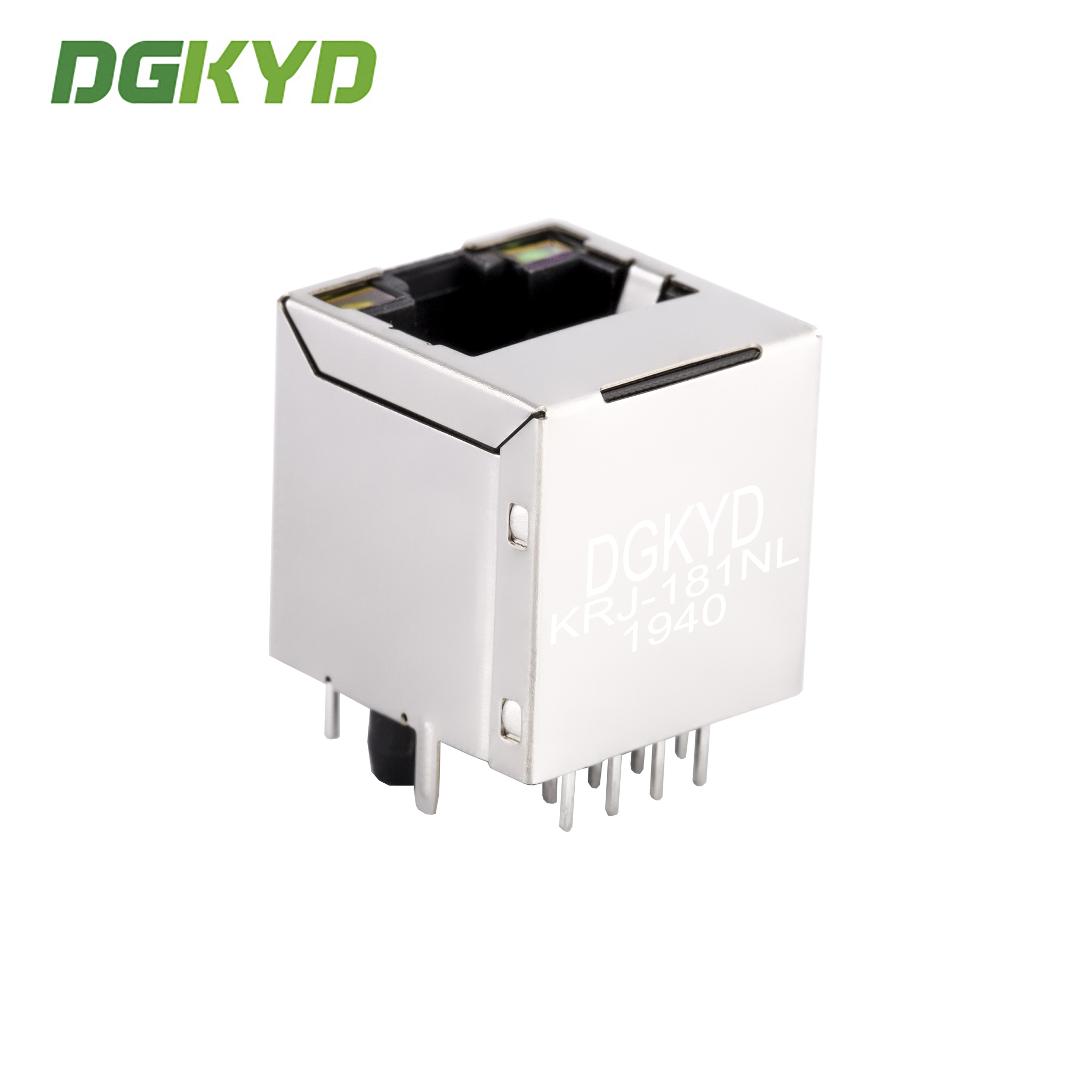

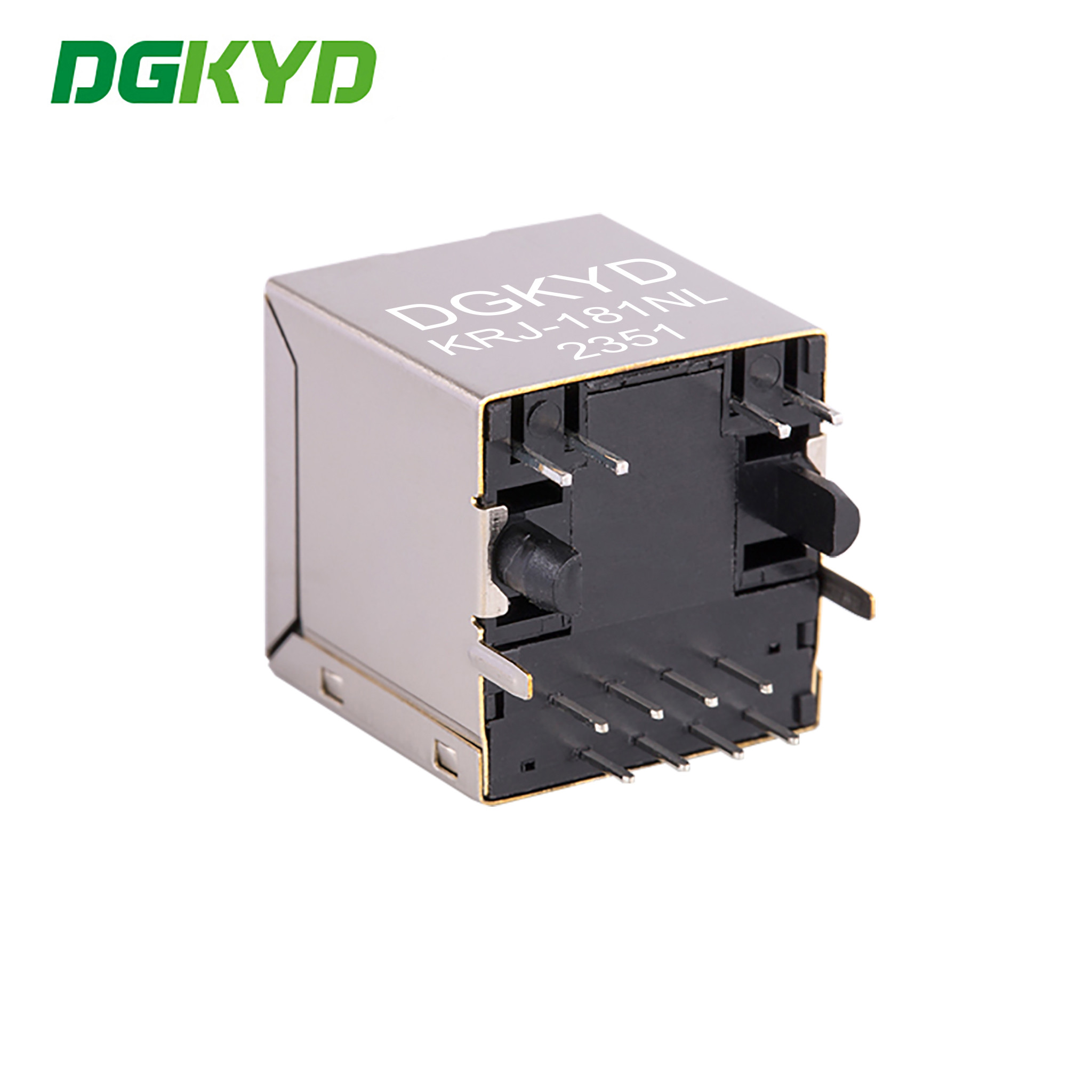

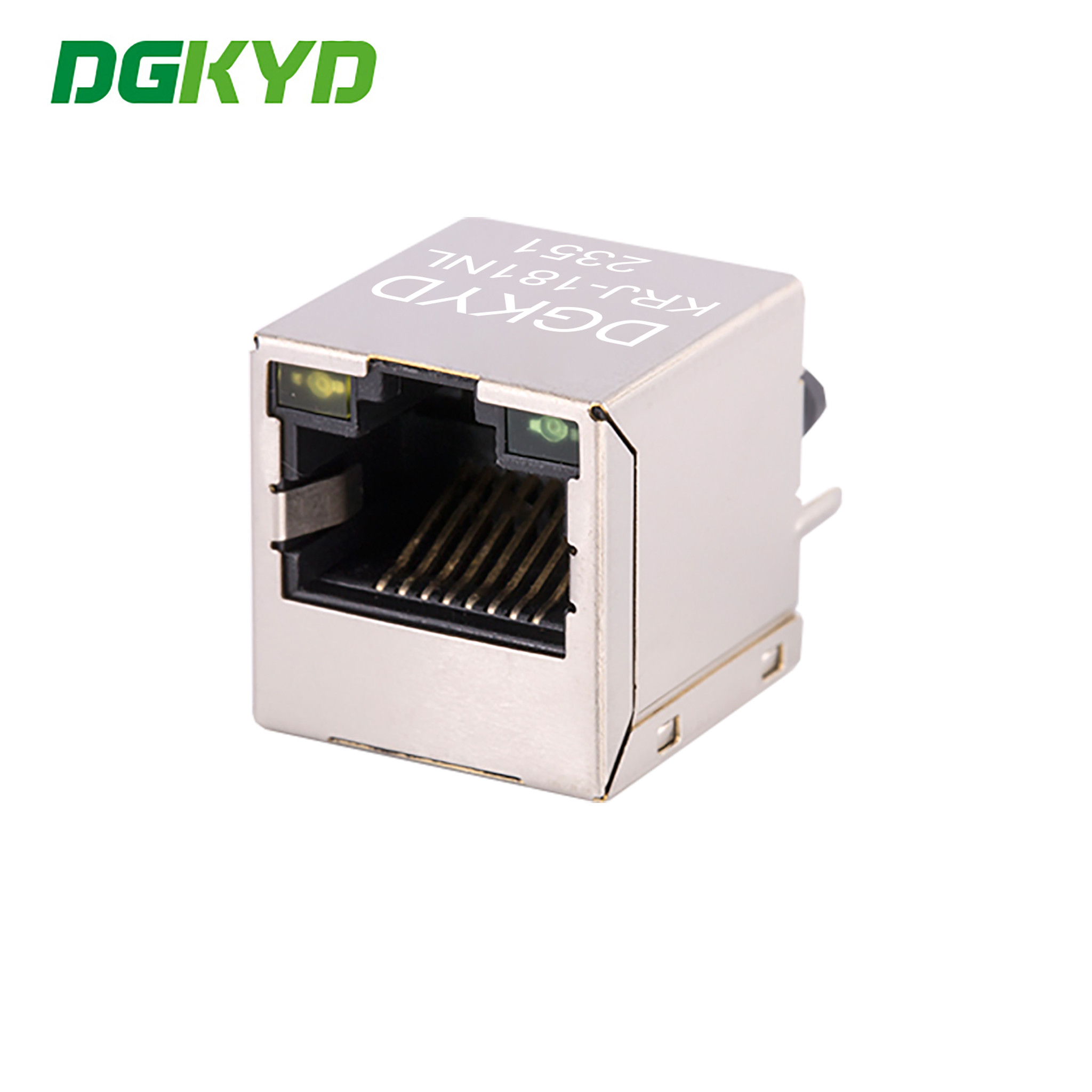

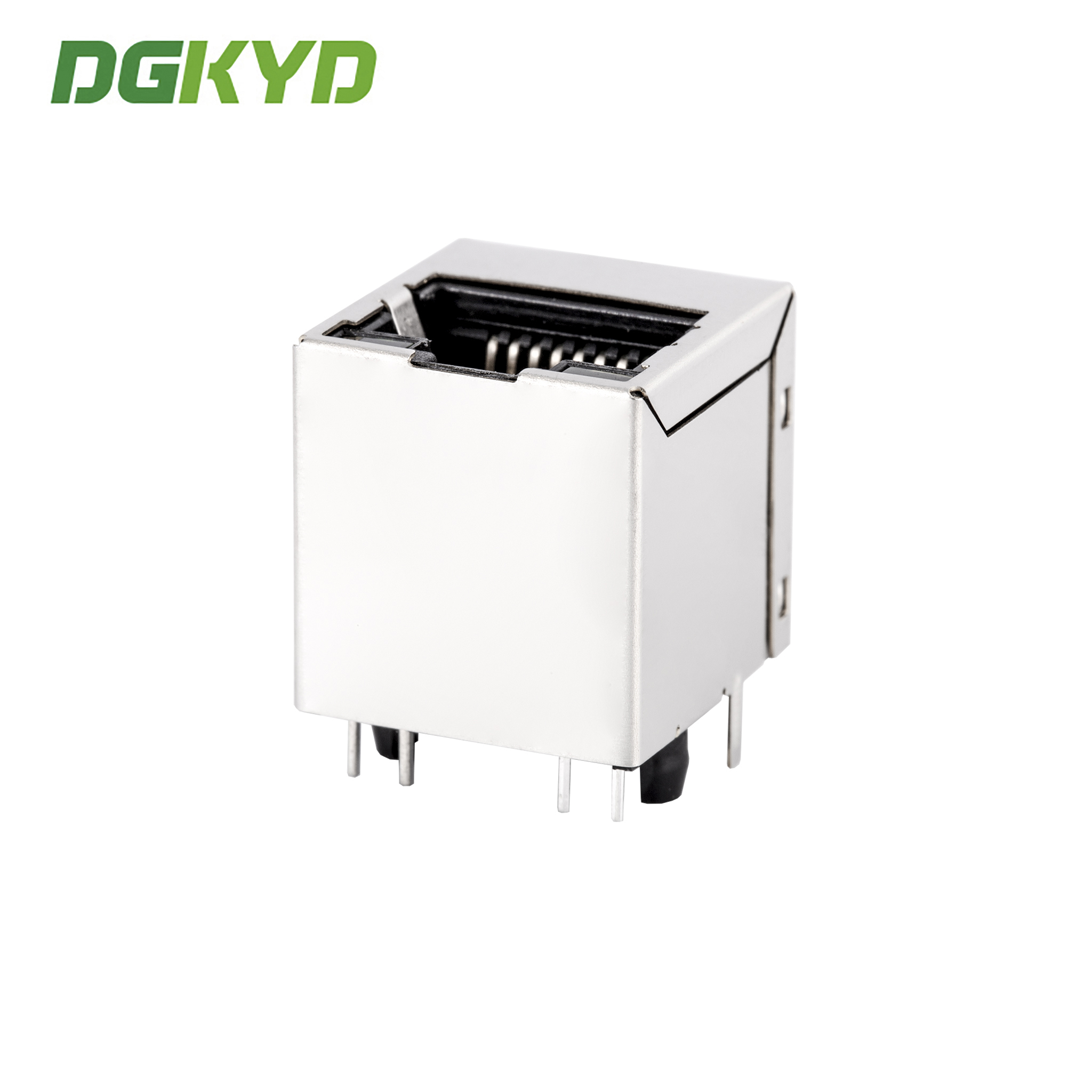

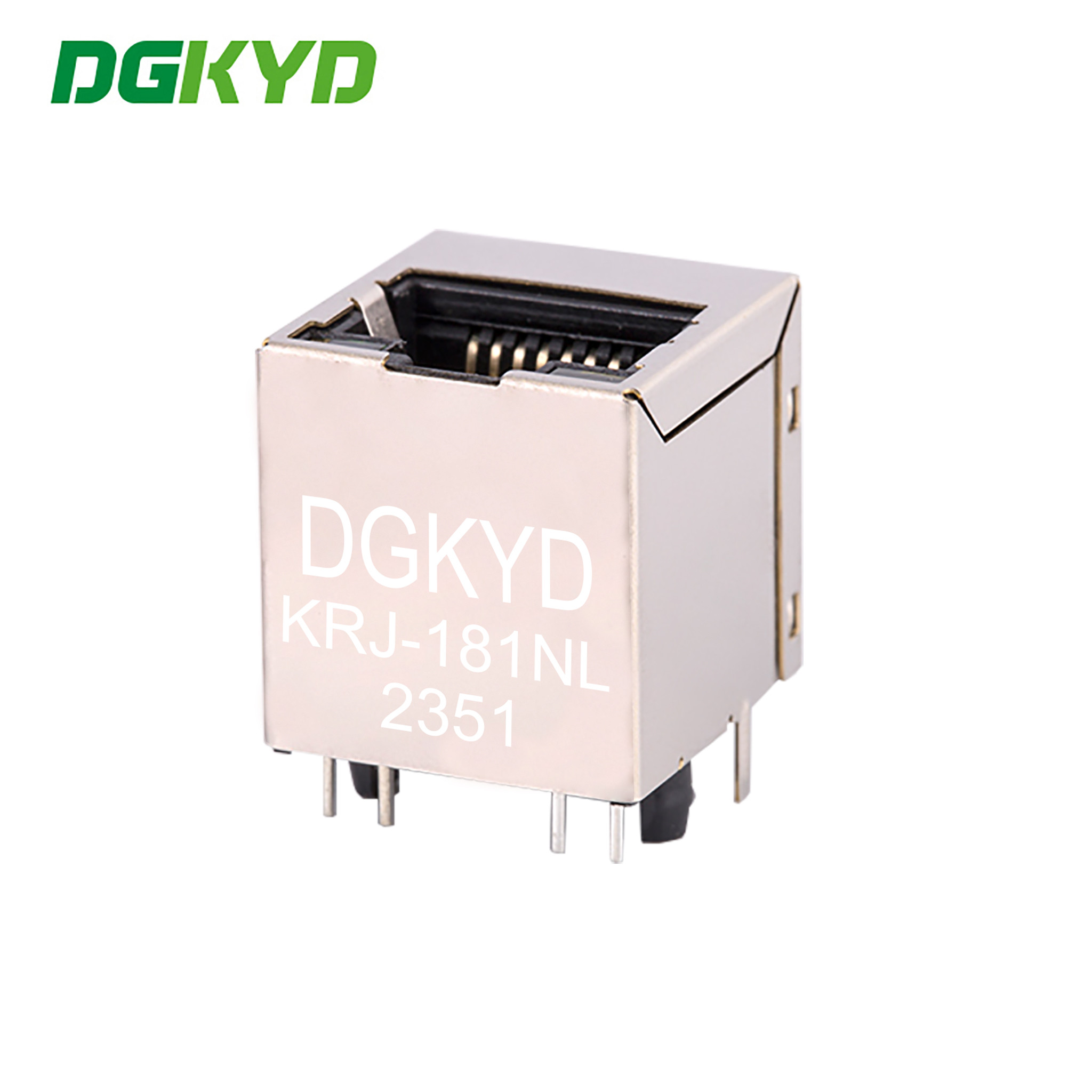

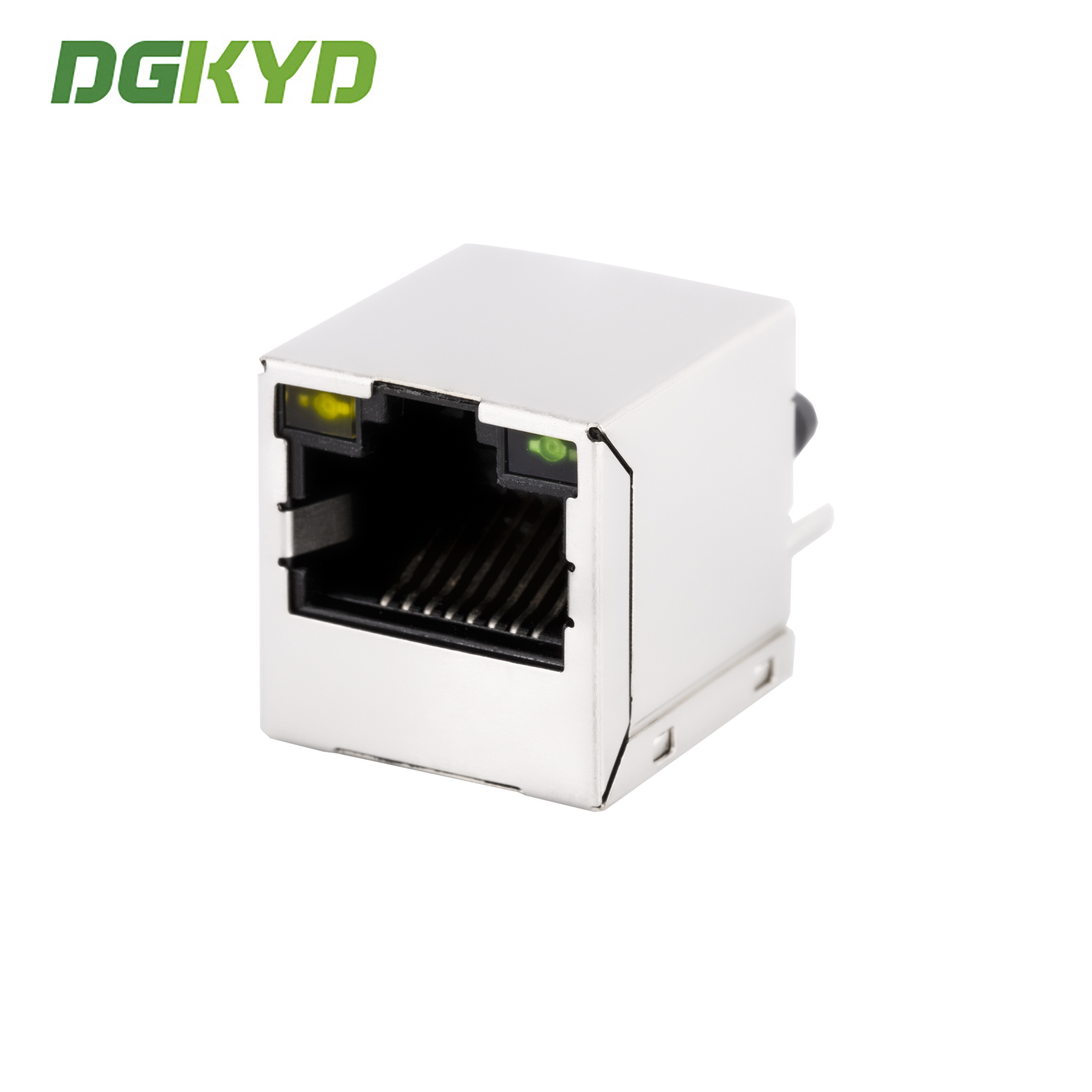

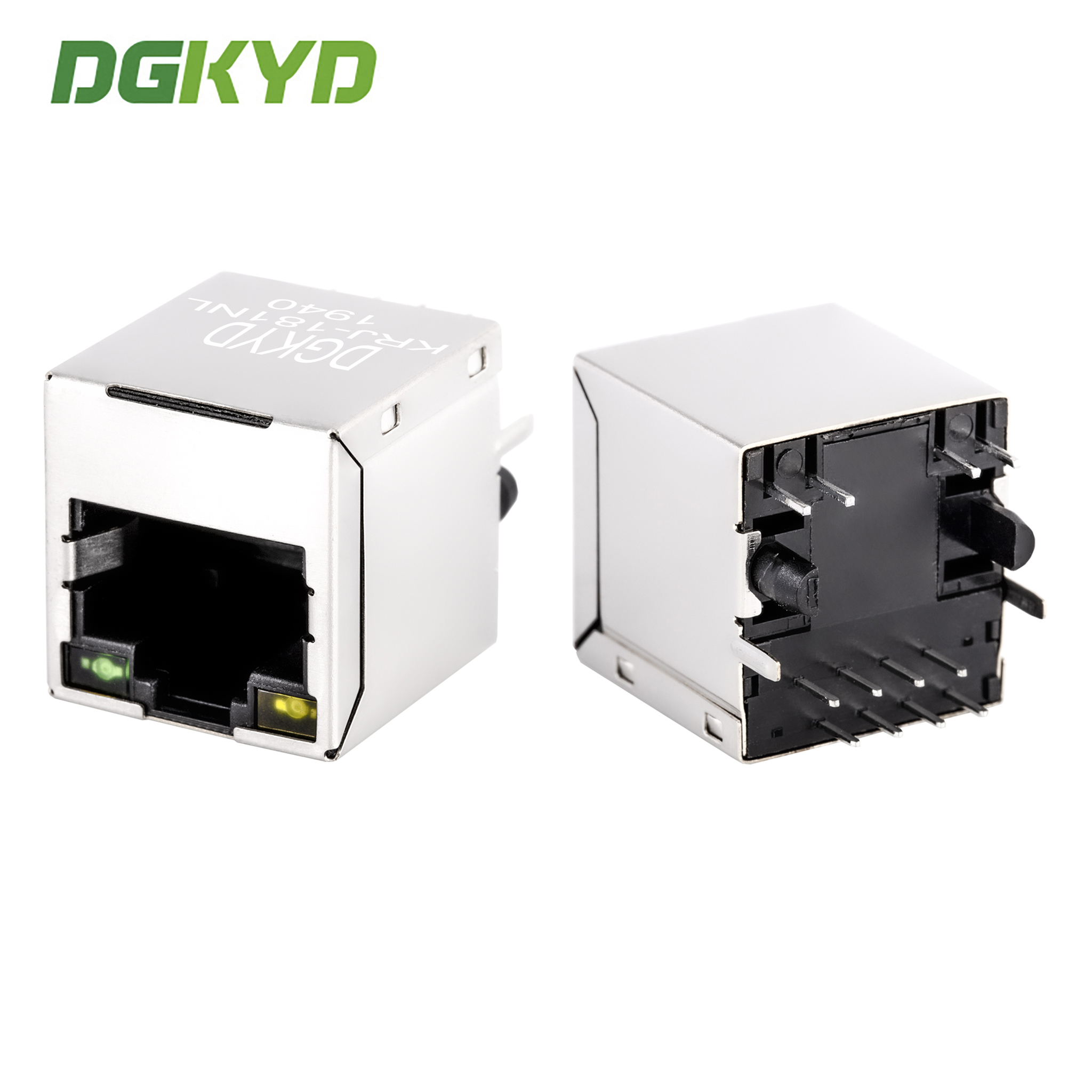

KRJ-181NL 180 degree RJ45 vertical mesh outlet socket RoHS cat5e Rj45 Lan Jack with Internal Magnetics and LED

Product Specification Document

KRJ-181NL.pdf

Parameters

Part Number	KRJ-181NL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Descriptions:

10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with top entry
Single port 1X1 Tab-UP RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range : -40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shield:Yes
Rohs compliant
LEDS:YES
LEFT LED:Yellow,RIGHT LED:Green
Usage:HY951180A,KRJ-181NL

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
