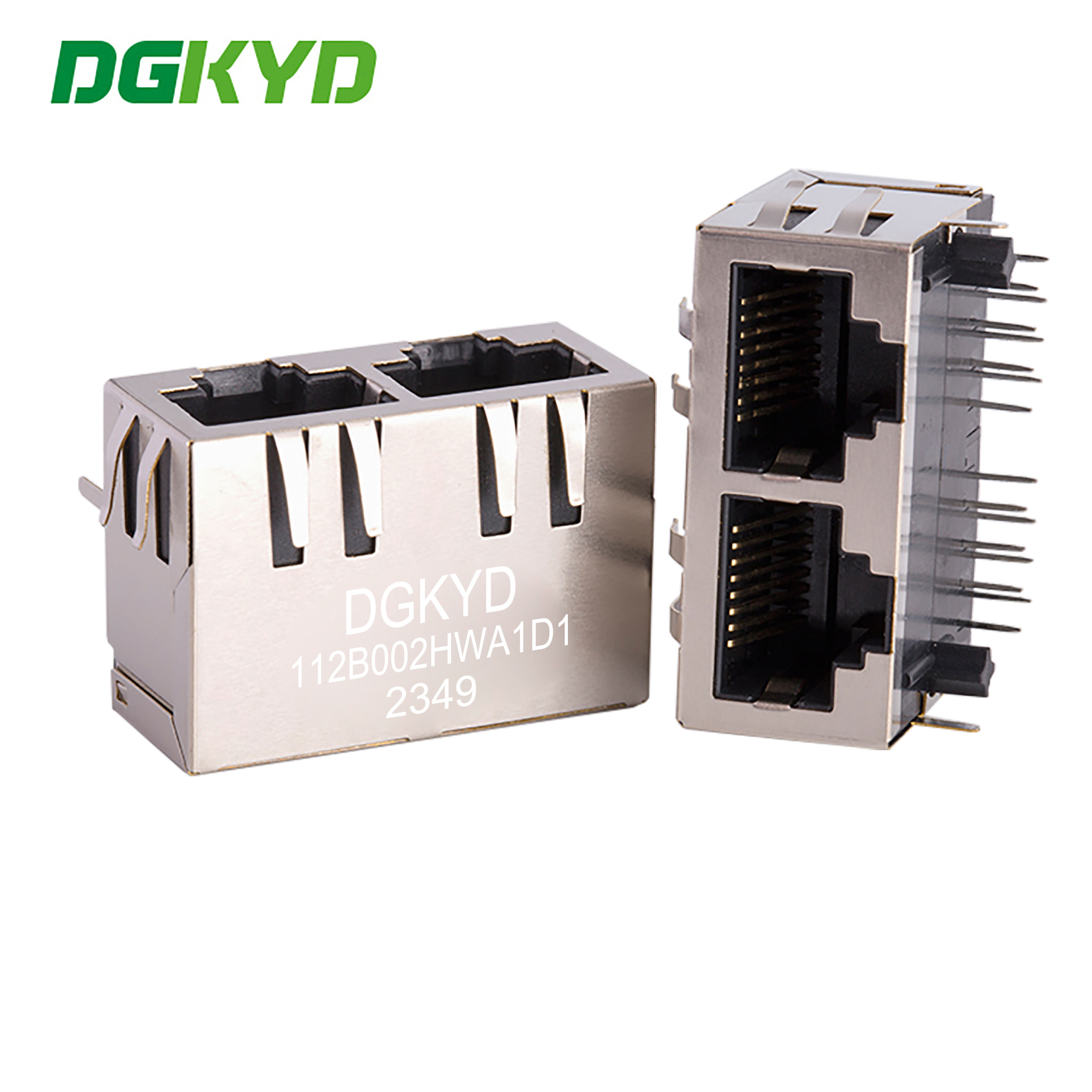

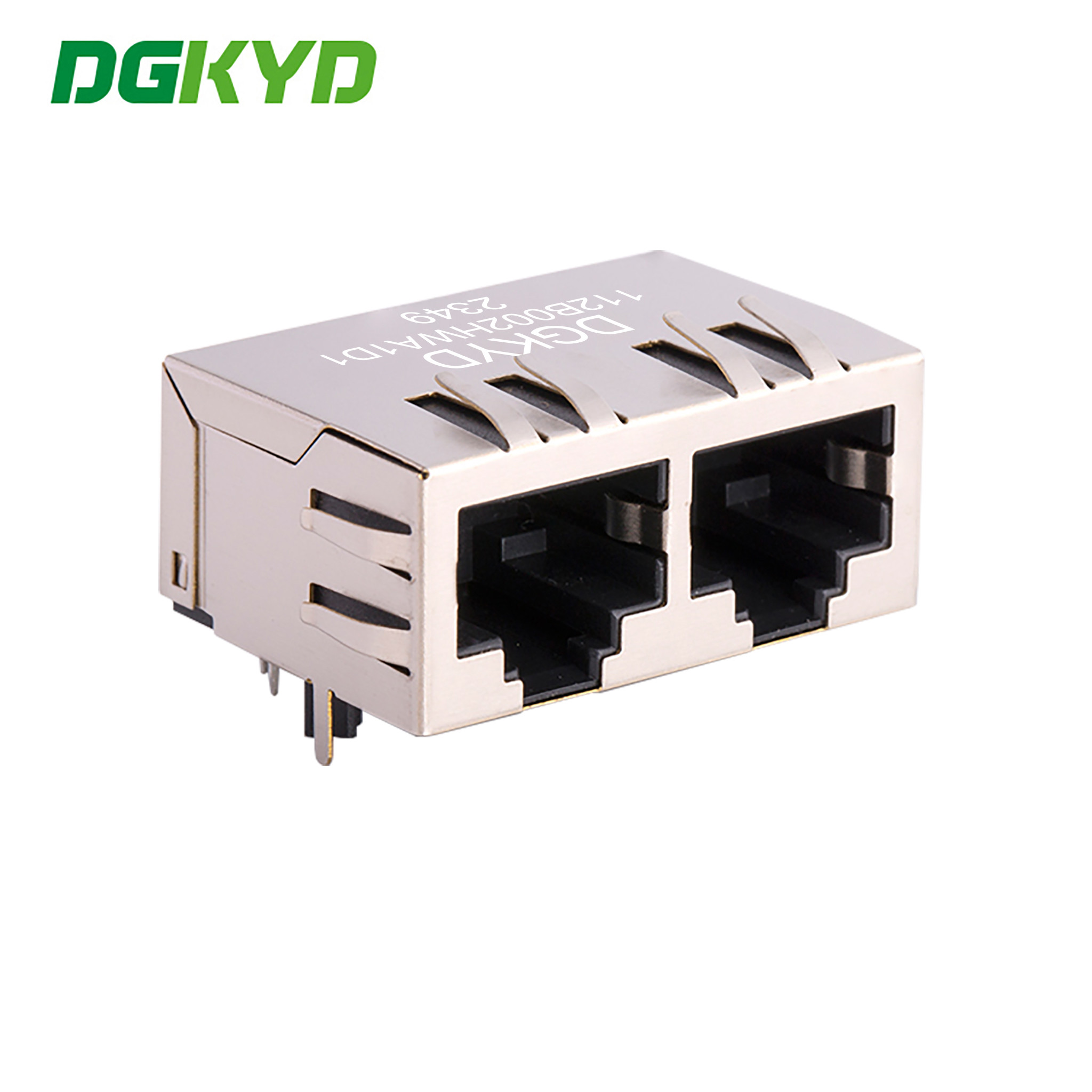

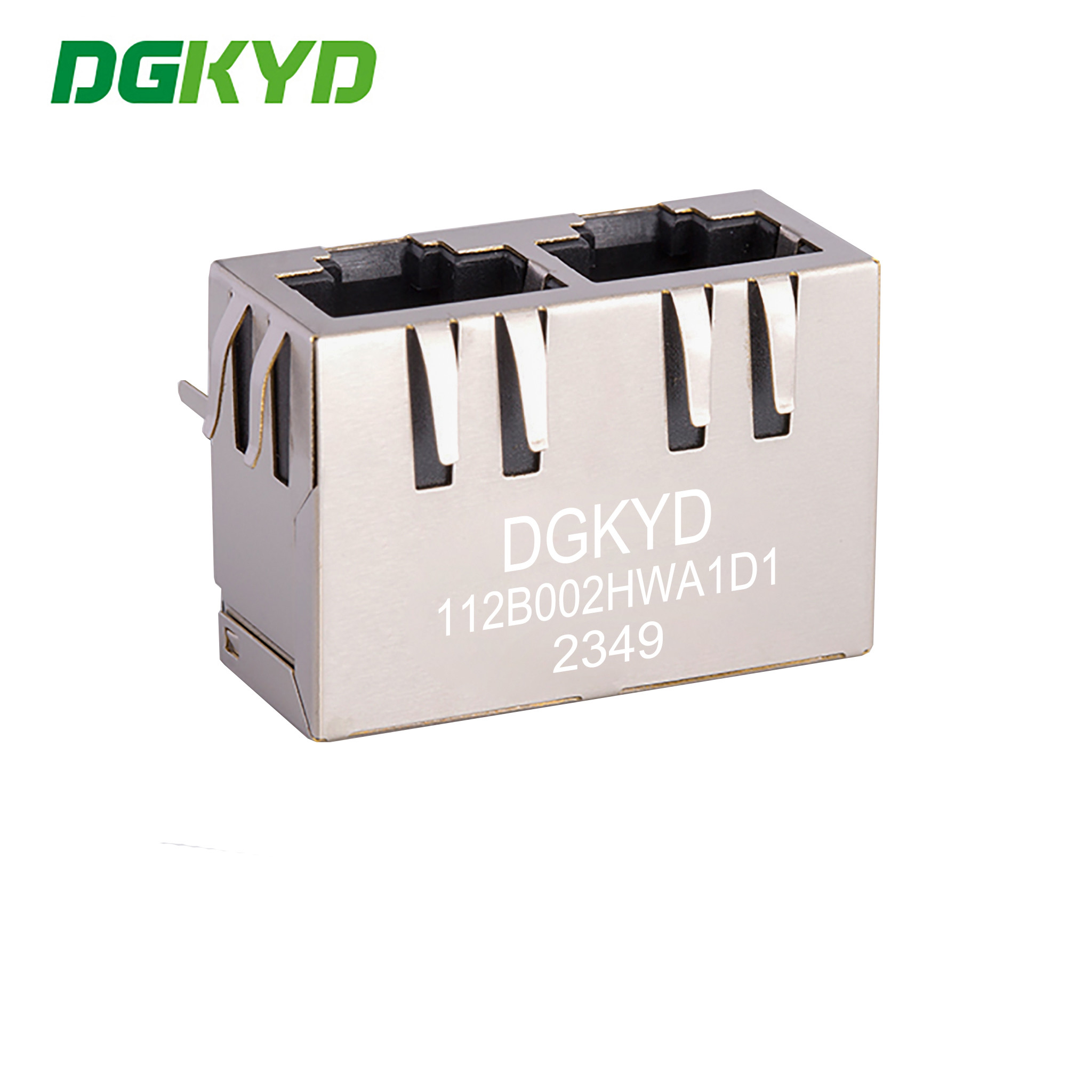

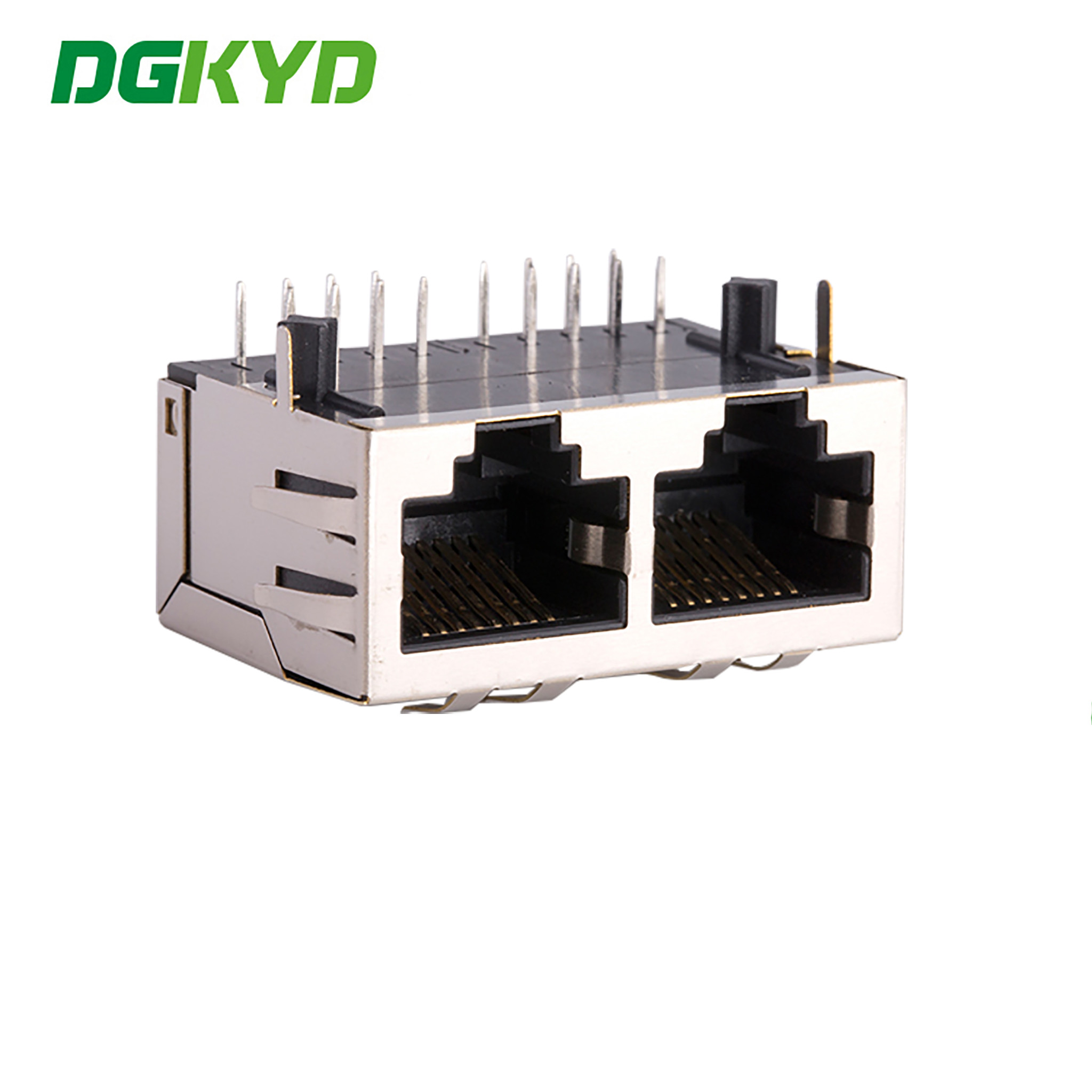

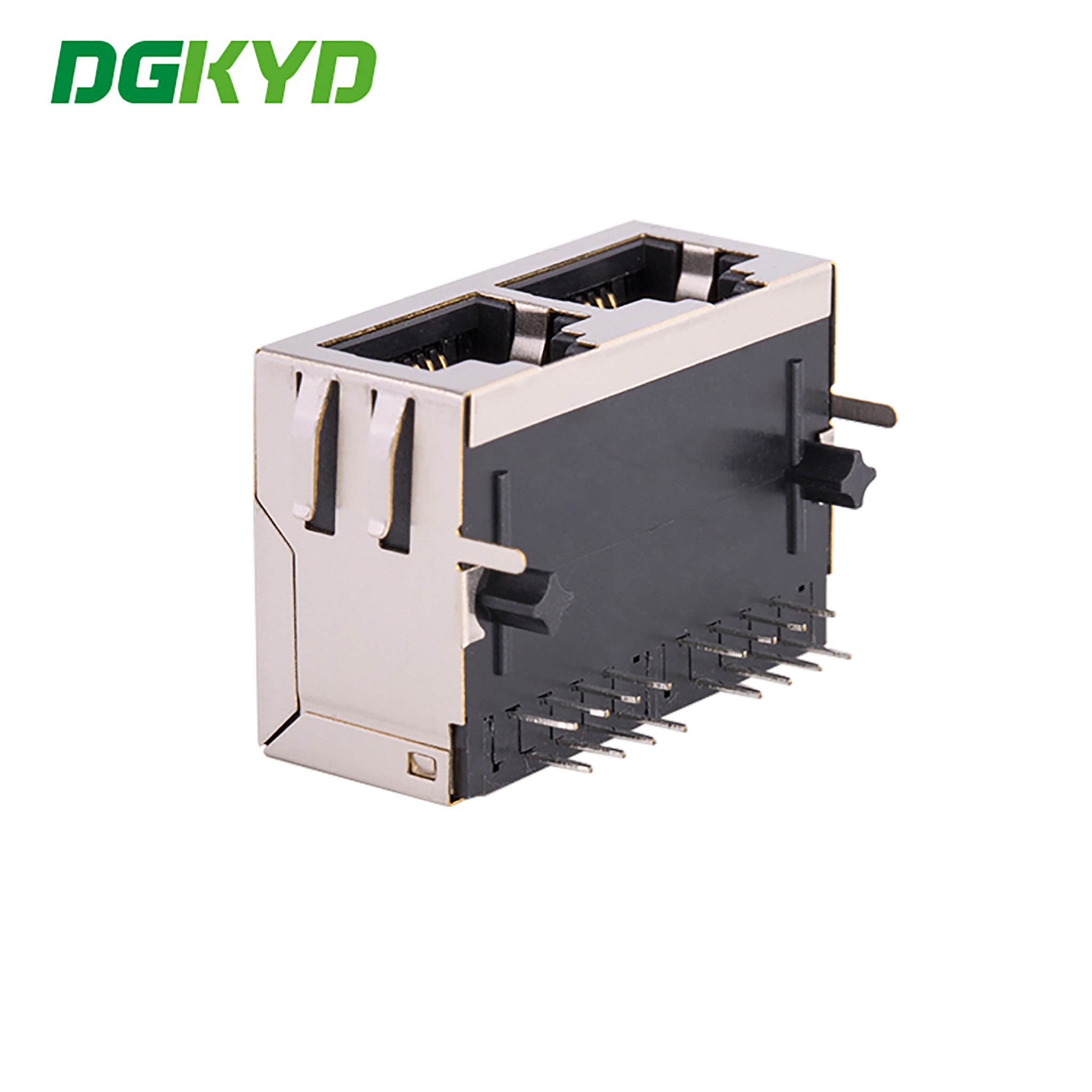

Side Entry KRJ-098GNL Shielded Rj45 Connector With Light Strip
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD112B002HWA1D1 |
|
Detail Information |
|||
| LEDS/EMI Fingers: | Custom,as Your Need | Feature: | High Performance,magnetic |
|---|---|---|---|
| RJ45 Suitable: | For CAT5&6 Ethernet Cable Or UTP | Application: | Lan,bridge,PC,router,usb Hub Network Rj45 |
| Gender: | Female RJ45 | Product Name: | RJ45 Ethernet Jack |
| High Light: | UTP Rj 45 Ethernet Connector,DGKYD112B002HWA1D1 Rj 45 Ethernet Connector,UTP Ethernet Jack Rj45 |
||
Product Description
Product Specification Document
DGKYD112B002HWA1D1.pdf
Parameters
| Part Number | DGKYD112B002HWA1D1 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | With Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | Without Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Descriptions:
With an extensive line of high-quality ethernet connector modules in our product lineup, DGKYD Electronics Networking BU can easily supply the parts you need to develop your next ethernet product.
