90 degrees 1x8 right angle RJ45 Female Jack 8 ports network switch connectors

China 90 degrees 1x8  right angle RJ45 Female Jack 8 ports network switch connectors supplier
90 degrees 1x8  right angle RJ45 Female Jack 8 ports network switch connectors supplier 90 degrees 1x8  right angle RJ45 Female Jack 8 ports network switch connectors supplier 90 degrees 1x8  right angle RJ45 Female Jack 8 ports network switch connectors supplier 90 degrees 1x8  right angle RJ45 Female Jack 8 ports network switch connectors supplier 90 degrees 1x8  right angle RJ45 Female Jack 8 ports network switch connectors supplier 90 degrees 1x8  right angle RJ45 Female Jack 8 ports network switch connectors supplier

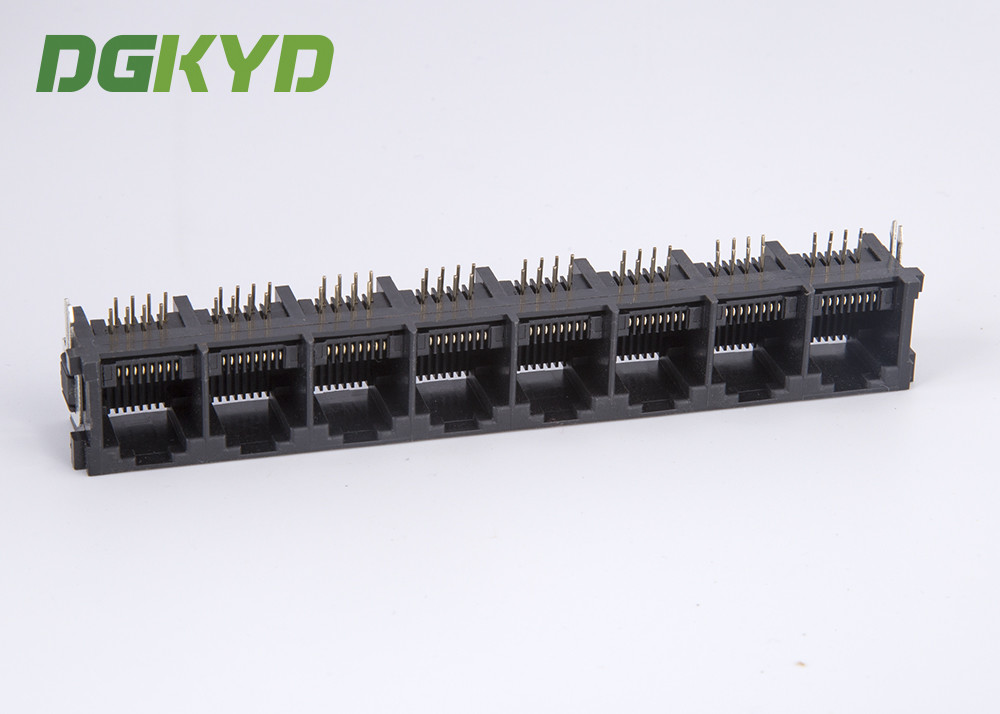

Large Image :  90 degrees 1x8 right angle RJ45 Female Jack 8 ports network switch connectors

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-5225 8P8C-1X8 90°

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Contacts: 8 Product Name: RJ45 Female Jack
Positions: 8 RJ45 PCB Terminal: Phosphor Bronze ,Tail-Tin Over Nickl
Shield: NONE Port: 1X8

RJ45 Female Jack , unshielded ethernet connectors 1 x 8 multiport for ethernet switch



ELECTRICAL
Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
High performance for maximum EMI suppression
350uH minmum OCL with 8mA bias current
1.Current Rating 1.5 amps
2.Voltage Rating 125vac
3.Insulation Resistance 500 MΩmin
4.Contact Resistance 30 MΩmax
5.Withstanding Voltage AC 1500V RMS 50Hz or 60Hz 1 min
Instertion Loss: -1.2dB Maximum @100KHz-100MHz
Return Loss: -18dB Minimum @1MHz-30MHz
-14dB Minimum @30MHz-60MHz
-12dB Minimum @60MHz-80MHz
Common Mode Rejection: -30dB Minimum @1MHz-100MHz
Cross Talk: -30dB Minimum @1MHz-100MHz
MECHANICAL
1.Insertion Force 2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g
8 CONTACTS….900g 10 CONTACTS....1050g
2.Retention Strength 7.7KG.F min between jack and plug
3.Durability 800 mating cycles min
MATERIAL
1.Housing ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness
phosphor bronze alloy selective gold plating over nickel
3.Shield 0.20~0.25mm thickness brass with tin plated
4.Gold Plating 3u inch,6u inch,15u inch,30u inch,50u inch
6.RoHS peak wave solder RoHS peak wave solder temperature rating 240°C±5°C
ENVIRONMENTAL
Operating Temperature: -40°C to 85°C
Working Temperature -40°C to 85°C



  • 10/100/1000Base-Tx RJ45 8 ports 1X8 Side Entry (Right Angle)
  • Number of positions:8
  • Number of contacts loaded:8
  • Rohs compliant

• Integrated RJ45 connector main used to :

10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set- top box,internet camera,net bridge,

computer,telecommunication,MODEM,HomePNA,DSL/ADSL and so on.

90 degrees 1x8  right angle RJ45 Female Jack 8 ports network switch connectors
