KRJ - 2011NL 2x1 stacked dual port rj45 connector 10P8C gigabit ethernet

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-2011NL

Detail Information

Product Name: Integrated RJ45 Jack Number Of Positions: 10
Number Of Contacts Loaded: 8 Port Structure: 2x1 Stacked
Metal Shell RJ45: Copper Alloy ,Tin Plated RJ45 PCB Terminal: Phosphor Bronze ,Tail-Tin Over Nickl

Product Description

 KRJ - 2011NL 2x1 stacked dual port rj45 connector 10P8C gigabit ethernet



DESCRIPTION
KRJ-2011NL 2x1 stacked port 10P8C Integrated RJ45 Female Jack gigabit ethernet connector
ELECTRICAL
Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
High performance for maximum EMI suppression
350uH minmum OCL with 8mA bias current
1.Current Rating 1.5 amps
2.Voltage Rating 125vac
3.Insulation Resistance 500 MΩmin
4.Contact Resistance 30 MΩmax
5.Withstanding Voltage AC 1500V RMS 50Hz or 60Hz 1 min
Instertion Loss: -1.2dB Maximum @100KHz-100MHz
Return Loss: -18dB Minimum @1MHz-30MHz
-14dB Minimum @30MHz-60MHz
-12dB Minimum @60MHz-80MHz
Common Mode Rejection: -30dB Minimum @1MHz-100MHz
Cross Talk: -30dB Minimum @1MHz-100MHz
MECHANICAL
1.Insertion Force 2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g
8 CONTACTS….900g 10 CONTACTS....1050g
2.Retention Strength 7.7KG.F min between jack and plug
3.Durability 800 mating cycles min
MATERIAL
1.Housing ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness
phosphor bronze alloy selective gold plating over nickel
3.Shield 0.20~0.25mm thickness brass with tin plated
4.Gold Plating 3u inch,6u inch,15u inch,30u inch,50u inch
5.LED Specification LED Color: LED Wavelength: Forward(V MAX): Typical (V TYP): Luminous Intensity:
Green 560-580 nm 2.5V 2.1-2.2V 9-25 MCD
Yellow 580-610 nm 2.5V 2.1-2.2V 9-30 MCD
LED intensity/wave length measured with Photo Research PR-650 Colormeter
With a forward current of 20 mA,Absolute Maximum Ratings (Ta=25°C)
6.RoHS peak wave solder RoHS peak wave solder temperature rating 240°C±5°C
ENVIRONMENTAL
Operating Temperature: -40°C to 85°C
Working Temperature -40°C to 85°C
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.



Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated
  • 10/100/1000Base-Tx RJ45 2 port 2X1 Side Entry without LED
  • 2 port 2X1 RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Number of positions:10
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:NO
  • EMI finger:NO

► Detailed Images

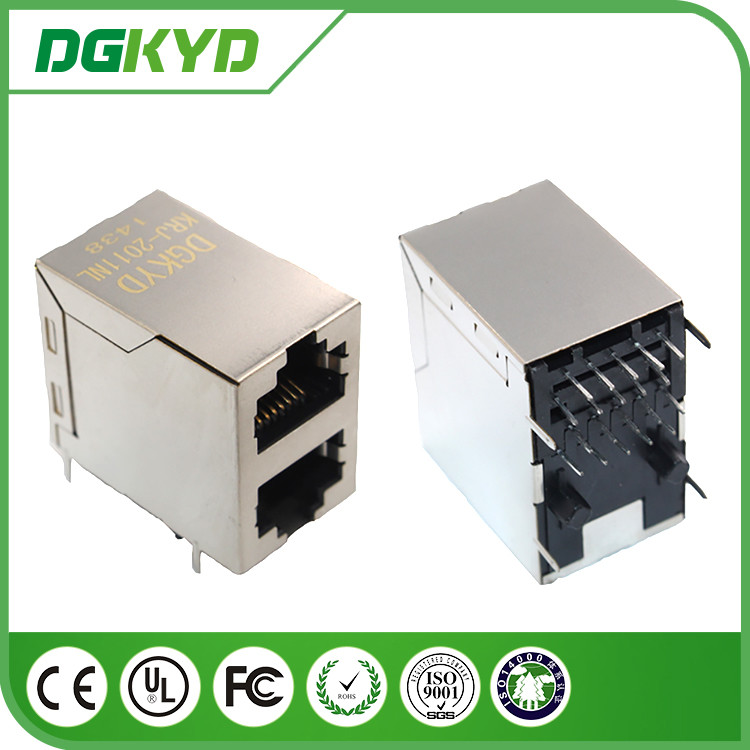

KRJ - 2011NL 2x1 stacked dual port rj45 connector 10P8C gigabit ethernet
