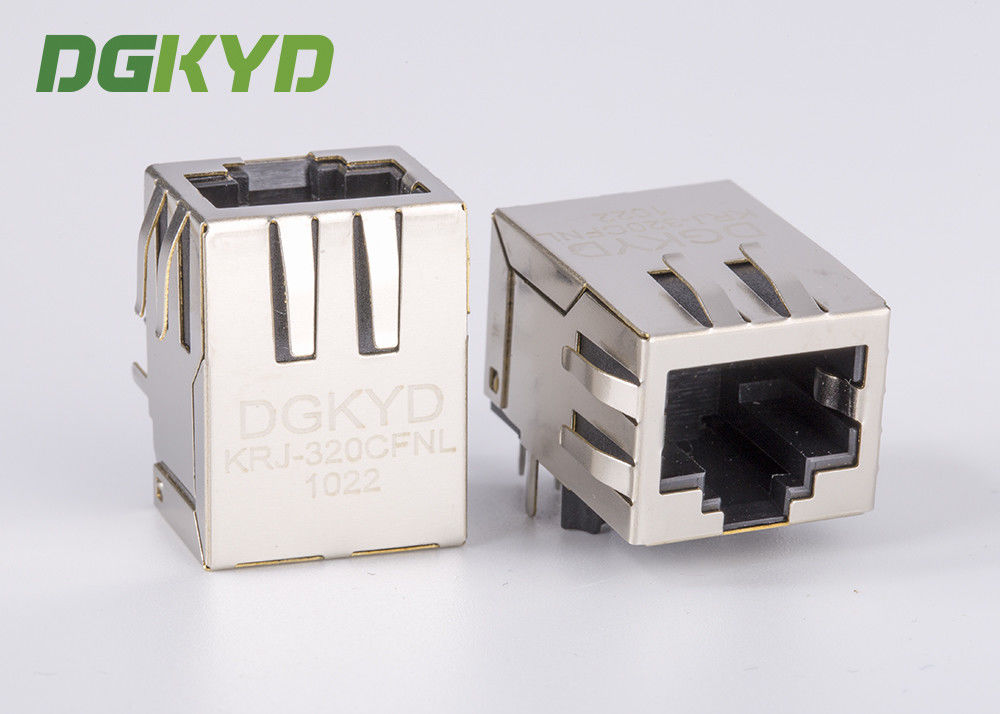

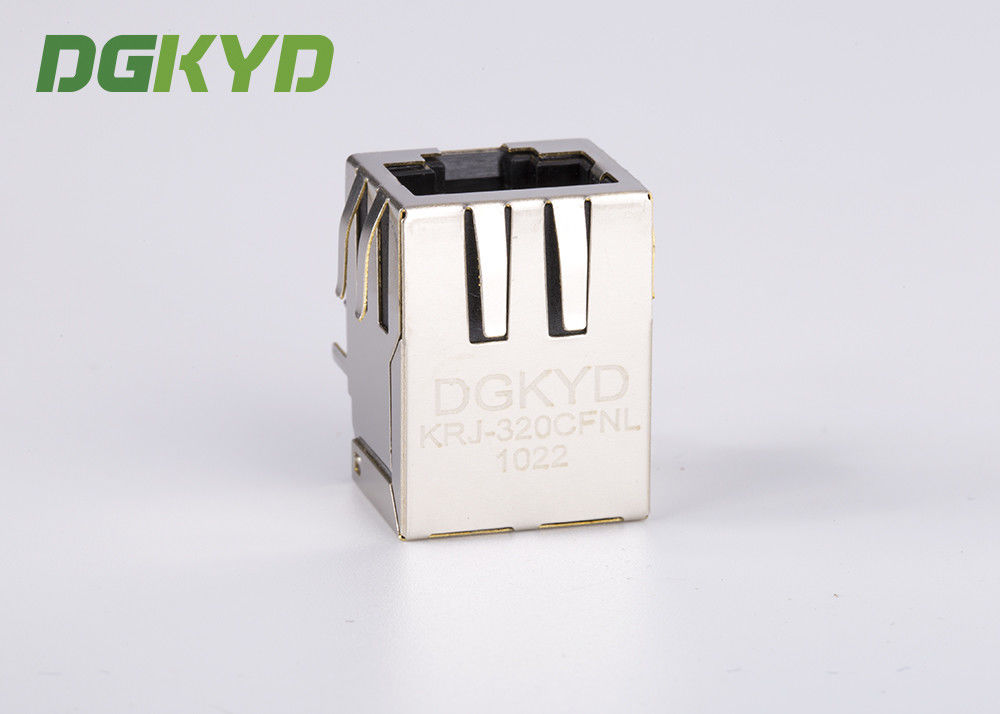

Shield single Port CAT6 RJ45 CONNECTOR, side entry, 1000BaseT

Contact Now

Shield single Port CAT6 RJ45 CONNECTOR, side entry, 1000BaseT

Name: Shield single Port CAT6 RJ45 CONNECTOR, side entry, 1000BaseT
Brand: DGKYD
SKU: KRJ-320CFNL
Price: 1.00 USD
Availability: InStock
Rating: 5 (133 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-320CFNL

Detail Information
Modular Jack & Plug Interface Type:	RJ45 With Integrated	Port Configuration:	Single
Connector Style:	Jack	Gender:	Female
Shielded:	Metal Shielded	Speed:	1000 Base-tx
Status Indicator:	NONE	Latch Orientation:	LATCH DOWN
High Light:	rj45 cat6 connector , cat6 connector rj45

Product Description

Shield single Port CAT6 RJ45 CONNECTOR, side entry, 1000BaseT
ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40℃ to +85℃
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	YES
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	DIP
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	8
LED OPTION	NONE
LATCH ORIENTATION	LATCH DOWN
HOUSING MATERIAL	PBT UL94V-0
CONTACT MATING AREA PLATING	GOLD 6U'' PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

Extensive temperature range between -40…+85 degrees C
Minimum product life requirement of 10 years
260 degrees C PIP soldering reflow capability
Plating thickness 0,76µm [30µinch] gold over 1,27µm [50µinch] nickel

Applications:

Programmable Logic Controllers
IO Modules
Servo Drive
Industrial PC
All Industrial applications requiring Ethernet or RJ45 connectivity

► Product Drawing

Shield single Port CAT6 RJ45 CONNECTOR, side entry, 1000BaseT 0
