Transformer Magnetic RJ45 Ethernet Plug Connector For Fiber Optic Transceivers

Contact Now

Transformer Magnetic RJ45 Ethernet Plug Connector For Fiber Optic Transceivers

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-256WDENL

Detail Information
Application::	Ethernet	Speed::	10/100/1000BASE-T
PCB Mount::	Right Angle Thru-Hole	Latch::	Tab Down
High Light:	gigabit ethernet rj45 , poe rj45 connector , Transformer Magnetic RJ45 Ethernet Plug Connector

Product Description

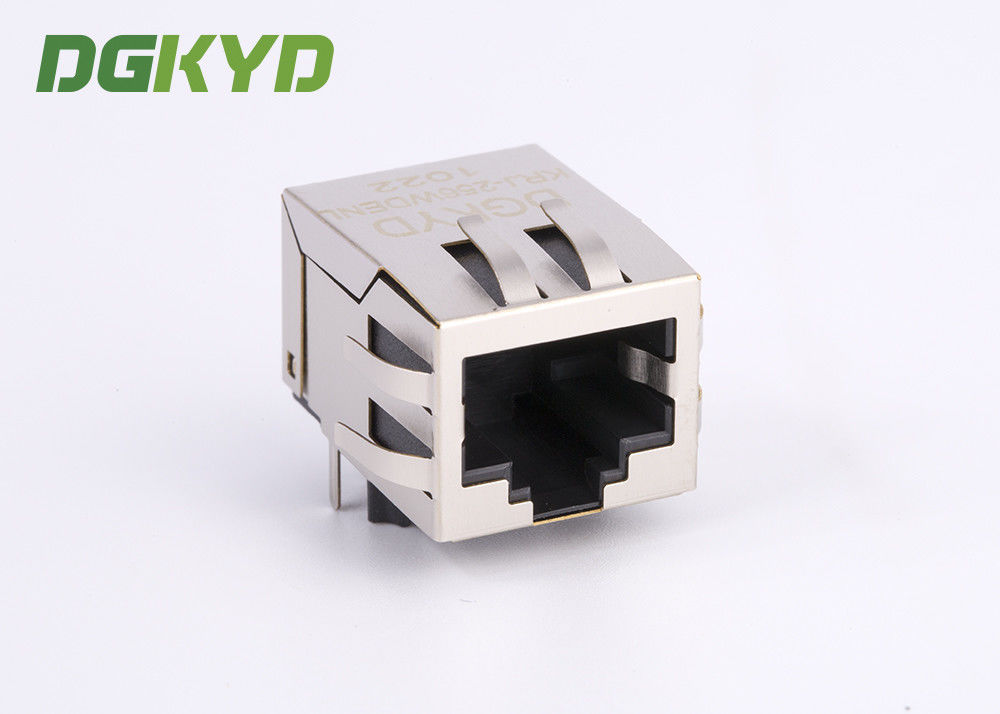

Transformer Magnetic RJ45 Ethernet plug connector for Fiber Optic Transceivers

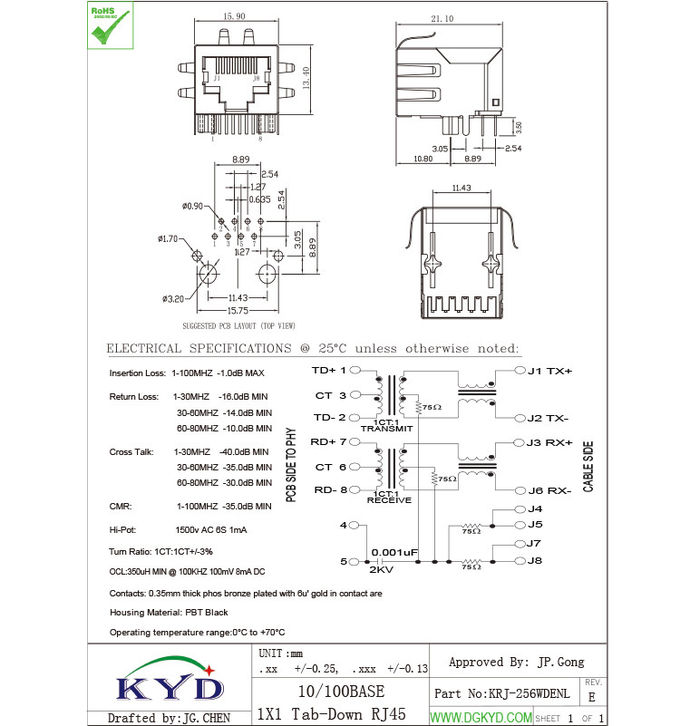

Transformer Magnetic RJ45 Ethernet Plug Connector For Fiber Optic Transceivers 0

The connector integrates the high performance of magnetics into industry standard connector designs. A complete line of Integrated RJ-45 connectors for Gigabit Ethernet. The result is an extremely robust, IEEE802.3 compliant solution. The complete FastJack Gigabit series is UL60950, EN60950 and RoHS compliant.

Options include:

Single, Double or Quad sockets
Choice of with or without LEDs
Tab Up, Tab Down, Low Profile, Long Body, and Vertical packages
Standard (0 to 70°C) or Extended (-40 to +85°C) Temperature Ranges
