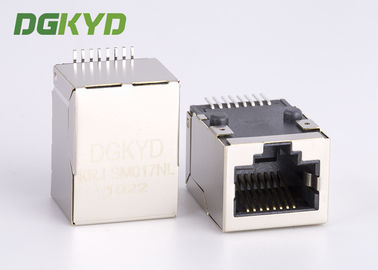

Customized Single Port Pcb Mount SMD/SMT Low Profile Rj45 Modular Jack

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-56SMTNL

Detail Information
Speed:	Cat 5	Mount Style:	SMT/SMD
Feature:	Low Profile	Latch:	Tab Up
High Light:	poe rj45 jack , rj45 connector jack , Low Profile Rj45 Modular Jack

Product Description

10/100 base SMT/SMD rj45 connector

10/100/1000 Base-Tx RJ45 without LED
Single port Tab-UP RJ45 modular jack
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shield:YES
Rohs compliant

Customized Single Port Pcb Mount SMD/SMT Low Profile Rj45 Modular Jack 0

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer, telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
