DGKYD111B479GWA1D RJ45 8P8C Connector Integrated Circuit Board Electronic Components

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 1080 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: DGKYD111B479GWA1D

Detail Information

Brand Name: DGKYD Type: RJ45, Headers And PCB Receptacles
HOUSING: PBT Type Of Installation: PCB Receptacles
LED Color: No Package: Carton Pallet
Colour: Black Plating: 6u Glod Plating
Storage Temperature: - 40 ℃ ~ 85 ℃ Applications Speed: 10/100 Base-T, AutoMDIX
Latch: TAB-down
High Light:

FCC RJ45 8P8C Connector

,

RoHS RJ45 8P8C Connector

,

RJ45 8P8C Modular Connector

Product Description

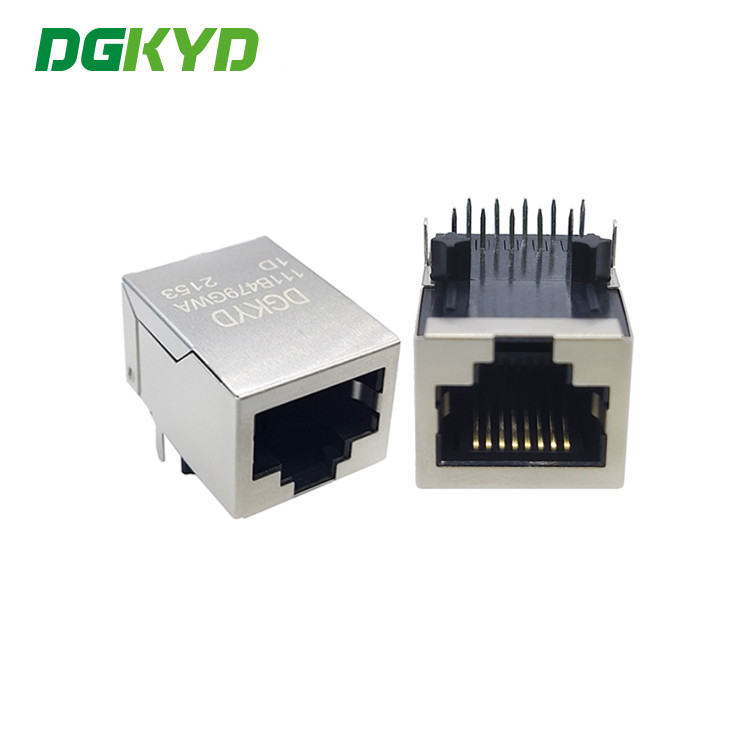

RJ45 8P8C Connector Integrated Circuit Board Electronic Components



RJ45 network port socket 8P8C in-line female socket with LED light integrated circuit board electronic components



Parameters

Part Number

DGKYD111B479GWA1D

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-down
Filter With Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions 

8

Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

RJ45 type network cable plug is also called crystal plug. It is made of eight cores. It is widely used in the connection of network cables between LAN and ADSL broadband Internet users' network equipment (called Category 5 cable or twisted pair). In specific applications, there are two connection methods (wire sequence) for RJ45 plugs and network cables, which are called T568A wire sequence and T568B wire sequence respectively.

The identification method of the pin number of the RJ45 network cable plug is: hold the plug in your hand, the end with 8 small gold-plated pieces is up, the end with the large rectangular opening for the network cable is down, and the one without the slender plastic bayonet is facing downwards. With your eyes, starting from the first small gilded piece on the left, it is foot 1, foot 2, ..., foot 8.
