1x2 Dual Port Rj45 Connector with Transformer DGKYD312B002DB1A4DN

Minimum Order Quantity : 1 piece Price : Negotiable
Packaging Details : 1080pcs/carton Delivery Time : 7-14days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 60000pcs per day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD312B002DB1A4DN

Detail Information

Product Name: RJ45 Ethernet Jack Housing Material: PBT Black
Number Of Ports: Multiport Clamp Direction: TAB-UP
Gilded: 6U PCB Mount Style: DIP
LED Option: Yellow/Green Shield: With Metal Shield
Product Standard: Meets IEEE 802.3 Specification
High Light:

1x2 Dual Port Rj45 Connector

,

6U Dual Port Rj45 Connector

,

PBT Rj45 Connector With Transformer

Product Description

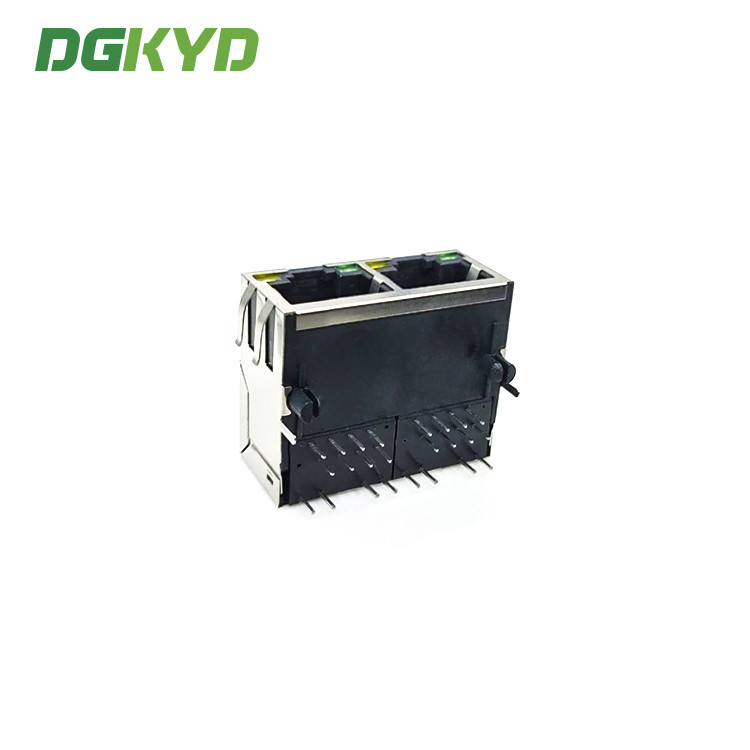

1x2 Dual Port Rj45 Connector With Transformer DGKYD312B002DB1A4DN



RJ45 Cat6 connector dual port 1x2 100M rj45 transformer modular jack network led DGKYD312B002DB1A4DN



Electrical:
1. Turn ratio:1~2:J1~J2=1CT:1CT(+2%).
3~6:J3~J6= 1CT:1CT(+2%).
2. OCL:350uH Min. at 100KHz 100mV 8mA DC.
3. Insertion Loss: -1.0 dB Max 1~ 100MHz.
4. Return loss: -20dB Min 1~10MHz;
-16dB Min 10~ 30MHz.
-12dB Min 30~60MHz.
-10dB Min 60~80MHz.
5. Cross talk: -40dB Min 1~30MHz;
- 35dB Min 30~60MHz;
-30dB Min 60~ 100MHz;
6. CMR: -30dB Min 1~100MHz;
7. Hi-Pot:1500V AC & 2250V DC
6S 1mA PRI TO SEC



Specification



Part Number

DGKYD312B002DB1A4DN

Brand

DGKYD/OEM/ODM

Place of Origin

Guangdong of China

Certification

RoHS/CE/FCC/CE/ISO9001/ISO14001

Product Type 

Connector-Modular

Connector Style

Jack

Jack Type

RJ45

Connector Type 

Modular Jack

Latch Style

Standard

Latch

TAB-UP

Filter

With Filter

LED Option

With LED

LED Color

Yes, L-Yellow/ R-Green

Panel Stops

With Panel Stops

Shielded

With metal shield

Applies To 

Printed Circuit Board

Performance Speed

10/100/1000 BASE-T/TX

Suitable for welding type

Reflowsolding(Alternative).

Port Configuration 

multi Port

Number of Positions 

8

Jack Configuration

1 x 2

Terminals per Port

8

Shield Material

Copper Alloy preplated with Nickel

PCB Mounting Orientation 

Side Entry (Right Angle)

Contact Mating Area Plating Material 

Gold 6u/15u/30u/50u

Contact Base Material 

Phosphor Bronze

Solder Tail Contact Plating Material 

Tin-Lead over Nickel

PCB Mounting Style 

Through Hole

Termination Method to PC Board 

Through Hole-Press-Fit

Board Lock

With/Without Board Lock

Housing Material 

PBT Polyester

Housing Color

Black

Housing Material  Temperature

Standard

UL Flammability Rating 

UL 94V-0
