DGKYD711Q170AE5W2D057 Integrated Tab Up Double USB 2.0 RJ45 Network Connector For PCMCIA Net Card

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD711Q170AE5W2D057

Detail Information

Jack Type : RJ45 Encapsulation Method: Single In-line Package
PCB Mount Style: DIP Shape: Rectangle
Shield: Brass Plastic Housing Material: Black PA66
Number Of Pins: 10 Number Of Cores: 8
Dimension (mm): 18.95 * 27.46 * 30.87 Gold Plating On Contact Pins: G/FU — 6U
Operating Temperature: - 40 ℃ ~ 85 ℃ Storage Temperature: - 40 ℃ ~ 85 ℃
High Light:

Integrated RJ45 Network Connector

,

PCMCIA Net Card RJ45 Network Connector

,

USB 2.0 RJ45 Multiple Port Connectors

Product Description

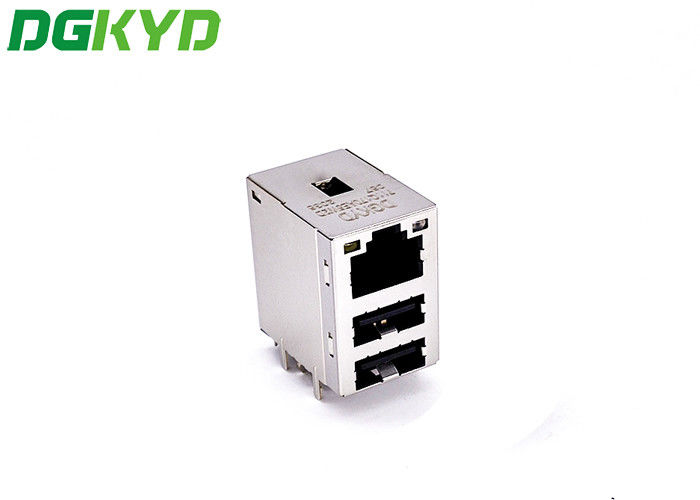

Integrated Tab-Up RJ45 DoubleUSB Network Connector With Usb 2.0 For PCMCIA Net Card

Specification



Part Number DGKYD711Q170AE5W2D Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color L-Yellow/R-Green/Orange Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  1X1 Ports Number of Positions  12
Jack Configuration Single port Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PA66 Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



Our strengths:



Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply



1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!



Performance parameters:



1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6.Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω



DGKYD711Q170AE5W2D057 Integrated Tab Up Double USB 2.0 RJ45 Network Connector For PCMCIA Net Card 0DGKYD711Q170AE5W2D057 Integrated Tab Up Double USB 2.0 RJ45 Network Connector For PCMCIA Net Card 1DGKYD711Q170AE5W2D057 Integrated Tab Up Double USB 2.0 RJ45 Network Connector For PCMCIA Net Card 2

DGKYD711Q170AE5W2D057 Integrated Tab Up Double USB 2.0 RJ45 Network Connector For PCMCIA Net Card 3
