Shieded Cat6 RJ45 jack 8 pin network connector Integrated magnetics for Router
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-138ENL |
|
Detail Information |
|||
| Component Type: | PCB Jack | Magnetic: | Yes |
|---|---|---|---|
| Performance Category: | 5,5e | Product Name: | Magnetic Jack, Modular Jack 8/8, RJ45 |
| PCB Mount Style: | DIP | Shield: | Phosphor Copper Nickel Plating |
| Plastic Housing Material: | Black PBT | Number Of Pins: | 8 |
| Operating Temperature: | - 40 ℃ ~ 85 ℃ | Gold Plating On Contact Pins: | 6U |
| Encapsulation Method: | Single In-line Package | ||
| High Light: | cat6 rj45 jack,rj45 cat6 connector,100 megabit cat6 RJ45 Connector |
||
Product Description

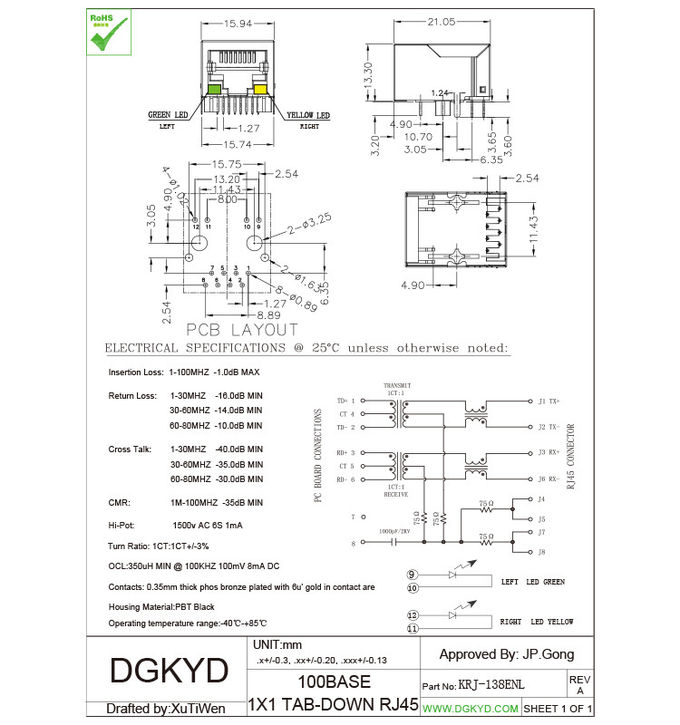

Product Specification Document
| Part Number | KRJ-138ENL | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | Without Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | 1X 1 Ports | Number of Positions | 8 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
The KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector with Internal Magnetics Registered Jack is a high-quality network connector designed for use with 100 Megabit CAT6 Ethernet networks. This product is manufactured according to strict quality standards and is extensively tested to ensure maximum performance and reliability. The connector is equipped with an RJ45 interface type and features a registered jack with internal magnetics, which provides superior signal quality and performance. It is ideal for use in a wide range of Ethernet applications, including routers, switches, hubs, and other networking equipment.
This connector is designed with high-frequency characteristics to provide filtering and anti-interference properties, ensuring reliable data transmission. It is capable of operating within a wide temperature range, from -40℃ to 85℃, and can withstand lead-free wave soldering with a height of up to 260℃. The KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector with Internal Magnetics Registered Jack is a high-quality and reliable network connector that offers superior performance and durability.
The KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector with Internal Magnetics Registered Jack is ideal for use in a wide range of Ethernet applications, including routers, switches, hubs, and other networking equipment. It is designed to provide superior signal quality and performance, making it an ideal choice for demanding Ethernet applications.
FAQ:
Q: What is the maximum working temperature of the KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector with Internal Magnetics Registered Jack?
A: The maximum working temperature of this connector is -40℃ to 85℃.
Q: Does this connector come with a registered jack and internal magnetics?
A: Yes, the KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector comes with a registered jack and internal magnetics.
Q: What is the interface type of this connector?
A: This connector is equipped with an RJ45 interface type.
Q: What is the working frequency of this connector?
A: This connector is designed with high-frequency characteristics to provide filtering and anti-interference properties.
Q: Can this connector be used with routers, switches, and other networking equipment?
A: Yes, the KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector with Internal Magnetics Registered Jack is ideal for use in a wide range of Ethernet applications, including routers, switches, hubs, and other networking equipment.
Our Advantage:
DGKYD designs and manufactures a wide range of IEEE 802.3 compliant LAN product including Discrete Ethernet Transformers, a complete line of integrated RJ45 FastJacks, Common Mode Filters, Token Ring Magnetics, and Fibre Channel Transformers.
