Customized RJ45 Network Connector High Performance , RJ45 10P8C

Contact Now

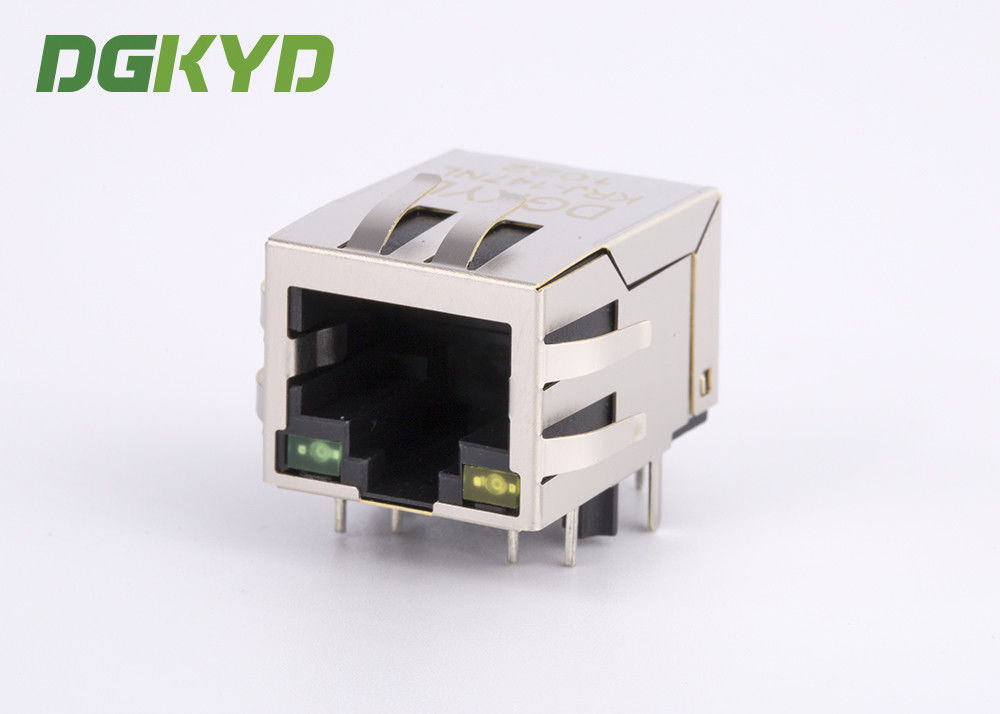

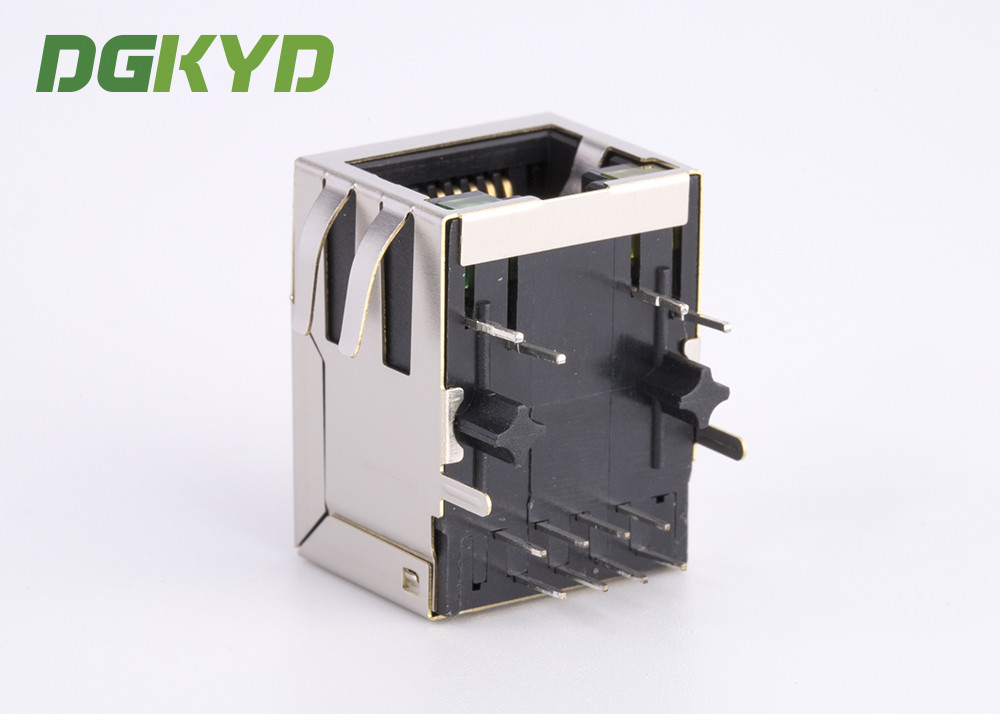

Customized RJ45 Network Connector High Performance , RJ45 10P8C

Name: Customized RJ45 Network Connector High Performance , RJ45 10P8C
Brand: DGKYD
SKU: KRJ-147NL
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (133 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-147NL

Detail Information
SPEED:	100BASE-TX	POE RATING:	NON-POE
PCB MOUNT ANGLE:	SIDE ENTRY	LED OPTION:	NO LEDS
LATCH:	Down	NUMBER OF PORTS:	1x1
High Light:	rj45 connector pcb mount , rj45 pcb jack , Customized RJ45 Network Connector

Product Description

Customized RJ45 Network Connector High Performance RJ45 8P8C ethernet jack

Part Number	KRJ-147NL	Brand	DGKYD/OEM/ODM
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Down
Filter	With Filter	LED Option	Without LED
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	100 BASE-TX	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Housing Material	PBT Polyester	Housing Color	Black
Operation Temperature	-40℃ to +85℃	UL Flammability Rating	UL 94V-0

Customized RJ45 Network Connector High Performance , RJ45 10P8C 0

DGKYD Electronics is developing the next generation of networking components to support the future expansion of the following markets and applications. DGKYD has full line of network products which include Discrete Ethernet Magnetics, Integrated Connector Modules, Connectors, RF Inductors, Common Mode Chip Chokes, and Telecom Magnetics and Filters.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
