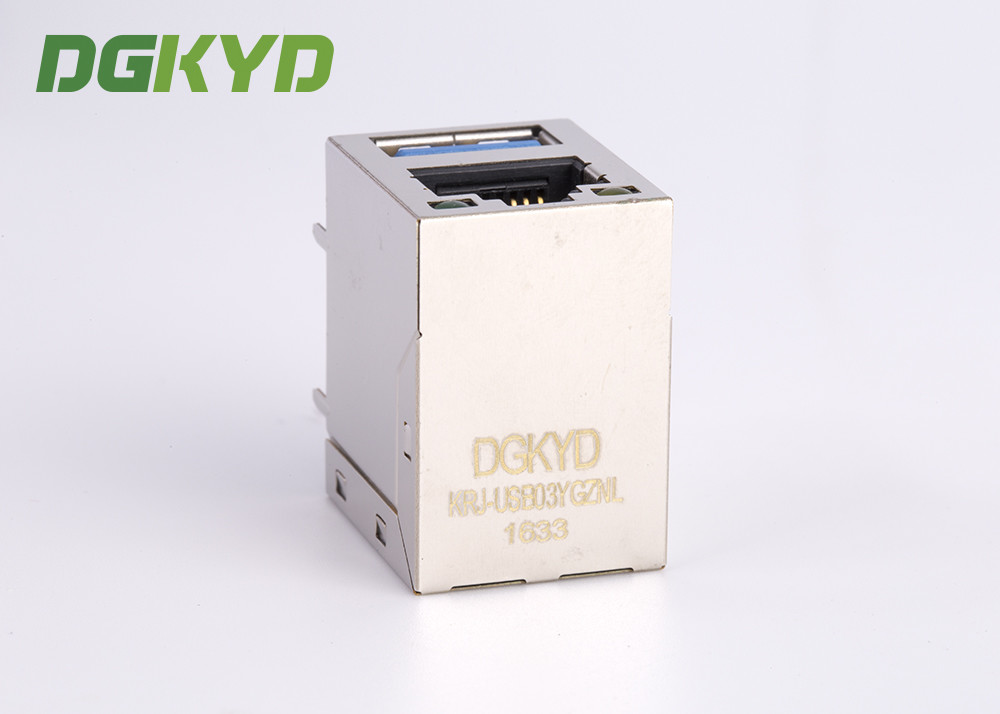

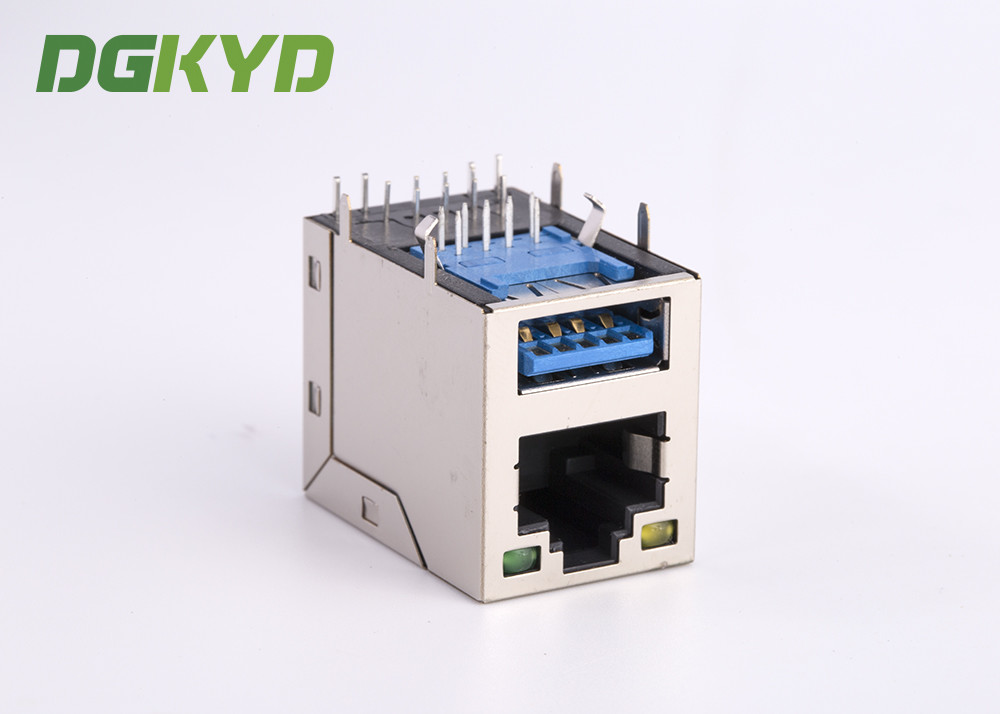

2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance

Contact Now

2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance

Name: 2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance
Brand: DGKYD
SKU: KRJ-USB03YGZNL
Rating: 4.9 (123 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-USB03YGZNL

Detail Information
Magnetics:	Without Magnetics	Shielded :	Metal Shielded
Connector Style :	Modular Jack	Housing Color :	Black
RoHS:	YES	Performance:	CAT 5
High Light:	usb rj45 connector , usb to rj45 connector , 2x1 usb rj45 connector

Product Description

KRJ-USB03YGZNL stack usb rj45 combo MODULAR JACK, RJ45+USB 3.0 x1F, W/ LED,1-1909119-4

Product Type Features

Jack Type RJ45 over Single USB
Performance Category Cat 5
Profile Standard
Shielded Yes
LED With
Product Type Connector
Grounding Options PCB Ground
Connector Style Jack
PCB Mounting Orientation Right Angle
Panel Stops Without
Multi-Port Modular Jack No

Configuration Features

Jack Configuration 2 x 1
Port Configuration Stacked
Number of Positions 8
Number of PCB Ground Tabs 4
Preloaded Yes
Keyed No

Body Features

Inverted Jack Face No
Shield Material Brass
Shell Plating Material Brass
Color Black
Shield Plating Material Nickel

Contact Features

Solder Tail Contact Plating Material Gold Flash over Nickel
Contact Base Material Phosphor Bronze

Termination Features

Termination Method to PC Board Solder

Mechanical Attachment

Panel Mount Retention Without
PCB Mounting Style Through Hole

► Product Drawing

2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance 0
