KRJ-5921S28NL 180 Degree Vertical RJ45 Multiple Port Connectors 16 port 0811-2X8T-28

China KRJ-5921S28NL 180 Degree Vertical RJ45 Multiple Port Connectors 16 port 0811-2X8T-28 supplier
KRJ-5921S28NL 180 Degree Vertical RJ45 Multiple Port Connectors 16 port 0811-2X8T-28 supplier KRJ-5921S28NL 180 Degree Vertical RJ45 Multiple Port Connectors 16 port 0811-2X8T-28 supplier KRJ-5921S28NL 180 Degree Vertical RJ45 Multiple Port Connectors 16 port 0811-2X8T-28 supplier KRJ-5921S28NL 180 Degree Vertical RJ45 Multiple Port Connectors 16 port 0811-2X8T-28 supplier KRJ-5921S28NL 180 Degree Vertical RJ45 Multiple Port Connectors 16 port 0811-2X8T-28 supplier KRJ-5921S28NL 180 Degree Vertical RJ45 Multiple Port Connectors 16 port 0811-2X8T-28 supplier

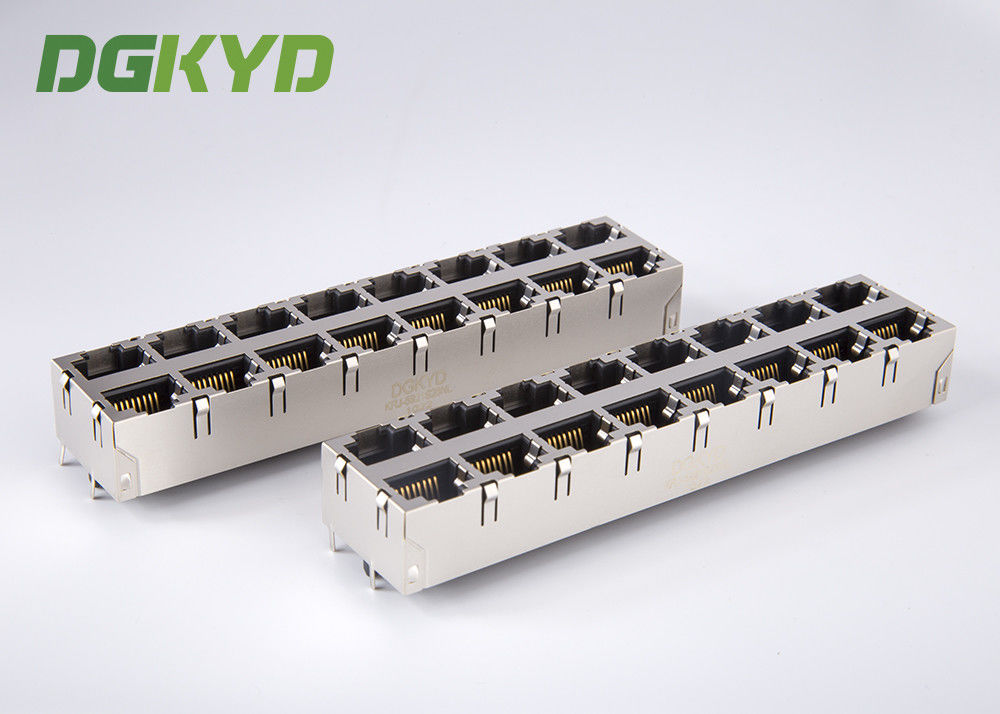

Large Image :  KRJ-5921S28NL 180 Degree Vertical RJ45 Multiple Port Connectors 16 port 0811-2X8T-28

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-5921S28NL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Jack Type : RJ45 Magnetics: Without Magnetics
Product Type : Connector Connector Type : Dip
Number Of Ports: 2x8 RoHS: YES

KRJ-5921S28NL 180 degree stack rj45 connector,2X8, vertical, No LED, 0811-2X8T-28



CONNECTOR MATERIAL COLOR BLACK
CONNECTOR TYPE RJ45
CONTACT MATING AREA PLATING GOLD 6 U''
FRE LOGO FRE LOGO
HOUSING MATERIAL PBT
KEYED NO
LATCH NOT APPLICABLE
LED OPTION NO LEDS
NUMBER OF CONTACTS 8.000
NUMBER OF PORTS 2X6
NUMBER OF POSITIONS 8.000
PACKAGE THT
PANEL STOP Yes
ROHS COMPLIANT YES-RoHS-6
SHIELD FULLY SHIELDED
SHIELD EMI TABS YES
SHIELD PLATING MATERIAL NICKEL
SPEED CAT 3
TEMPERATURE -40 TO +85

Specifications

  • Plastic Materials: UL 94V-0 rated
  • Contact Material: Copper Alloy
  • Contact Plating: 50 micro-inch selective hard gold or as specified
  • Mechanical dimensions comply with IEC 61076-3-110
  • Electrical performance as defined by IEC 60603-7-71 and IEEE802.3
  • Operating Temperature: 0°C to 70°C or as specified

Design Features

  • ICMs designed for 10/100BT, 1GBT, 10GBT and PoE(plus)
  • Port configurations ranging from 1×1 to 2×8 (16 ports)
  • Some port configurations available in vertical mount, low-profile and compressed-mid-plane mounted options.
  • Entire line of integrated USB-A 2.0 connector options
  • Optional LEDs, EMI tab-shields and EMI-gasket options
  • Board-mount options: thru-hole, SMT, pin-and-paste and limited press-fit configurations
  • Multiple footprint and pin-out configurations available.
