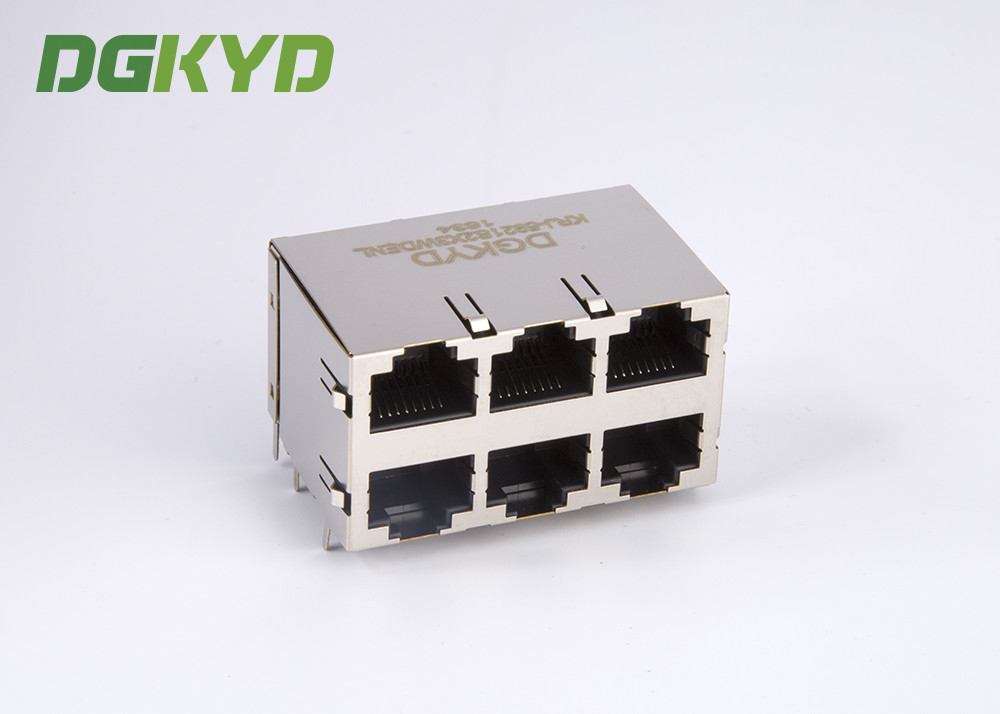

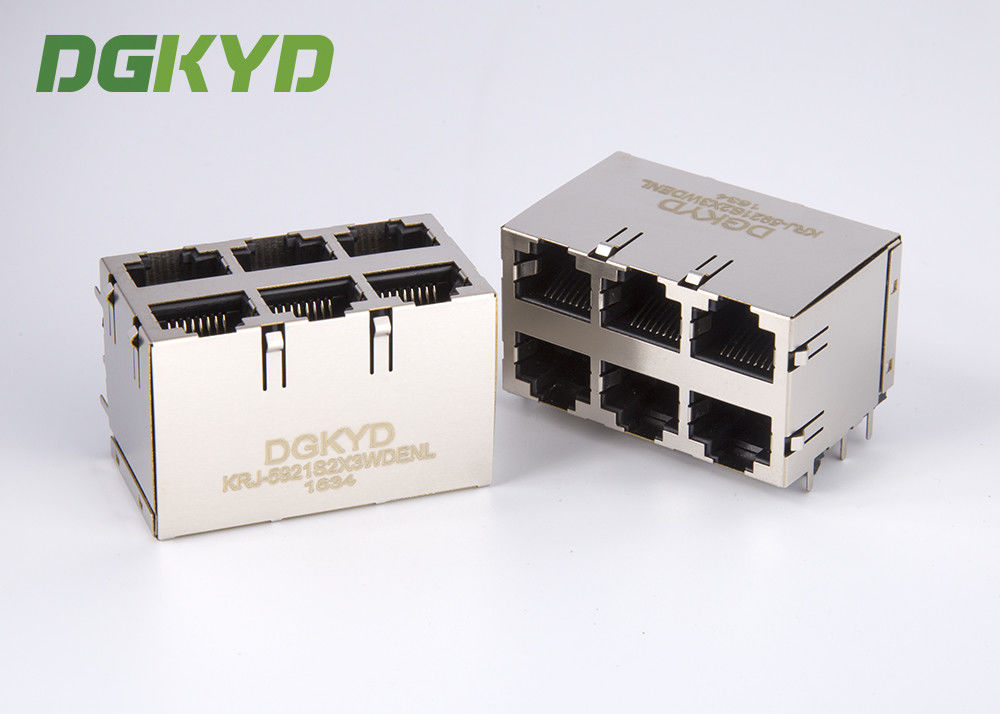

POE Rj45 Connector RJ45 Stack Jack MagJack 10/100BaseT 2X3 Y/G -40 to - 85C

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-5921S2X3WDENL

Detail Information

Jack Type : RJ45 MAGNETICS: NONE
SHIELD: YES Connector Type : Connector Assembly
Number Of Ports: 2x3 SPEED: 10/100/1000
High Light:

gigabit ethernet rj45

,

poe rj45 connector

,

2x3 POE Rj45 Connector

Product Description

RJ45 stack jack, MagJack 10/100BaseT, 2X3, Y/G, -40 to 85*C, RoHS



ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
SPEED Cat 3
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
NUMBER OF POSITIONS 8
NUMBER OF PORTS 2X3
NUMBER OF CONTACTS 8
LED OPTION
LATCH UP & DOWN
KEYED NO
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD FLASH PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK



















































► Product Features


Product Type Features

  • Profile  Offset - Overhangs PCB

  • PCB Mounting Orientation  Side Entry (Right Angle)

  • Product Type  Connector

  • Grounding Options  Panel Ground and PCB Ground

Body Features

  • Grounding Tab Plating Material  Tin over Copper

  • Shield Plating Material  Tin over Copper

Design Features
  • ICMs designed for 10/100BT, 1GBT, 10GBT and PoE(plus)
  • Port configurations ranging from 1×1 to 2×8 (16 ports)
  • Some port configurations available in vertical mount, low-profile and compressed-mid-plane mounted options.
  • Entire line of integrated USB-A 2.0 connector options
  • Optional LEDs, EMI tab-shields and EMI-gasket options
  • Board-mount options: thru-hole, SMT, pin-and-paste and limited press-fit configurations
  • Multiple footprint and pin-out configurations available.
