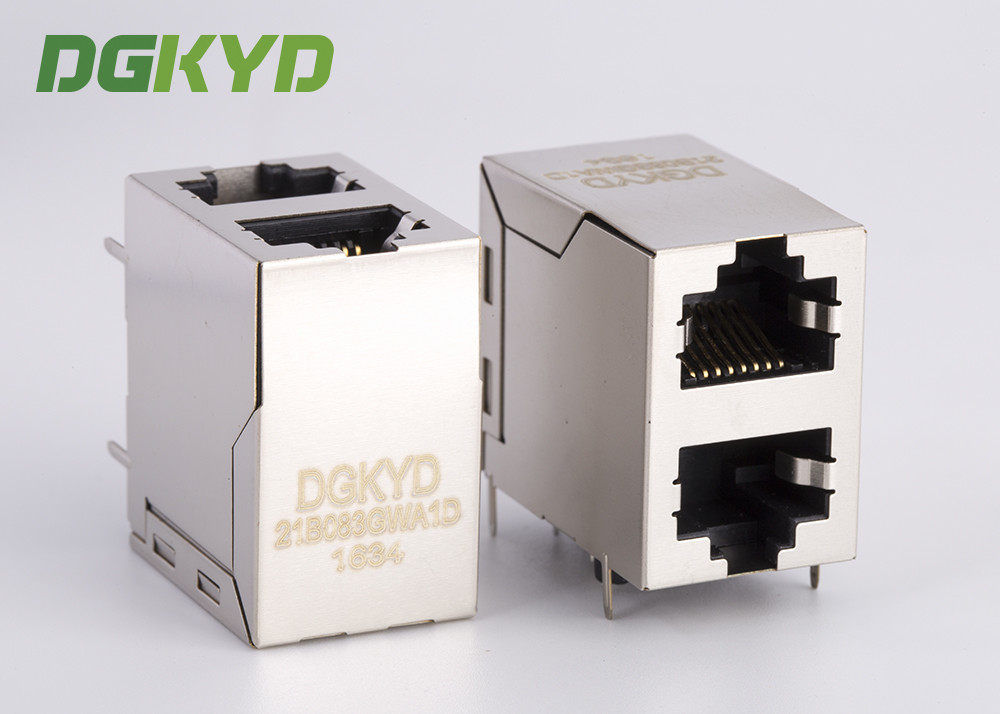

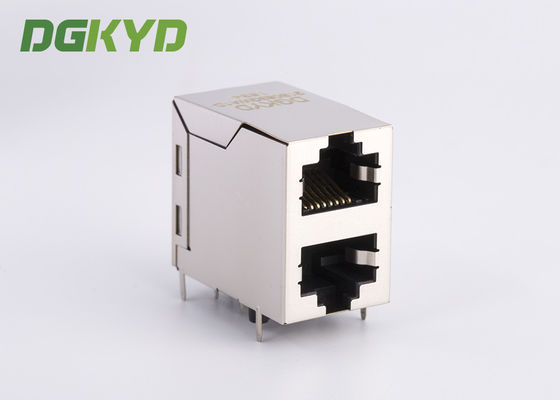

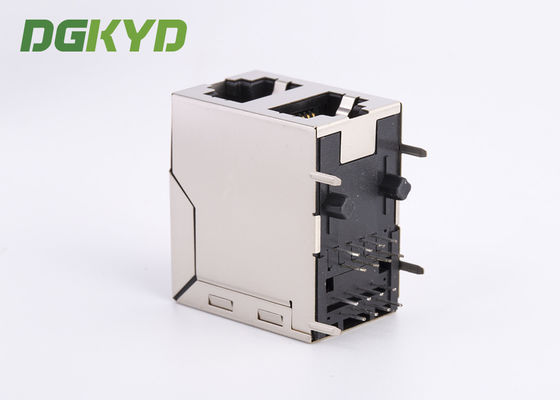

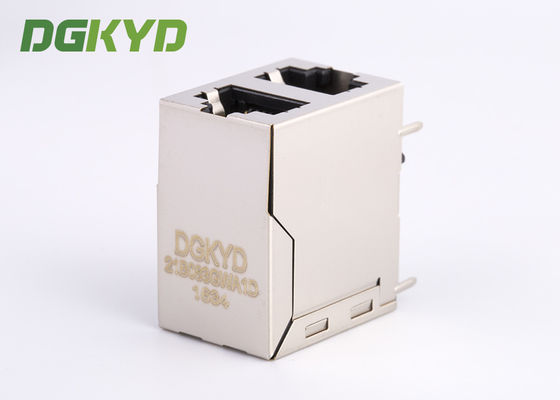

Shielded Magnetics Dual Port Rj45 Connector OFFSET STACK JACK 100 BaseT

Name: Shielded Magnetics Dual Port Rj45 Connector OFFSET STACK JACK 100 BaseT
Brand: DGKYD
SKU: DGKYD21B083GWA1D
Rating: 5 (167 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD21B083GWA1D

Detail Information
LED:	NONE	OPERATING TEMP:	-40 To 85℃
SPEED:	10/100BASET	NUMBER OF PORTS:	2X1
PORT CONFIG:	STACK	HEIGHT RPOFILE:	STANDARD
High Light:	dual port rj45 connector , dual port rj45 , Magnetics Dual Port Rj45 Connector

Product Description

Shielded Magnetics Dual Port Rj45 Connector OFFSET STACK JACK 100 BaseT
ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85
SPEED	Cat 5
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	NO
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	DIP
NUMBER OF POSITIONS	8
NUMBER OF PORTS	2X1
NUMBER OF CONTACTS	8
LED OPTION	NONE
LATCH	UP & DOWN
KEYED	NO
HOUSING MATERIAL	PBT UL94V-0
CONTACT MATING AREA PLATING	GOLD 6 U''
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

► PRODUCT FEATURES

Plastic Materials: UL 94V-0 Rated
Contact Material: Copper Alloy
Contact Plating: Selective Gold Plate in the Contact Interface Area
Current Rating: 1.5 Amps (max)
Voltage Rating: 150 VAC (max)
-40C to +85C operating temperature
Suitable for CAT 3, CAT 5 UTP or higher
PoE and PoE+ options available
Compact form factor optimizing board space
Supports all major PHY manufactures
