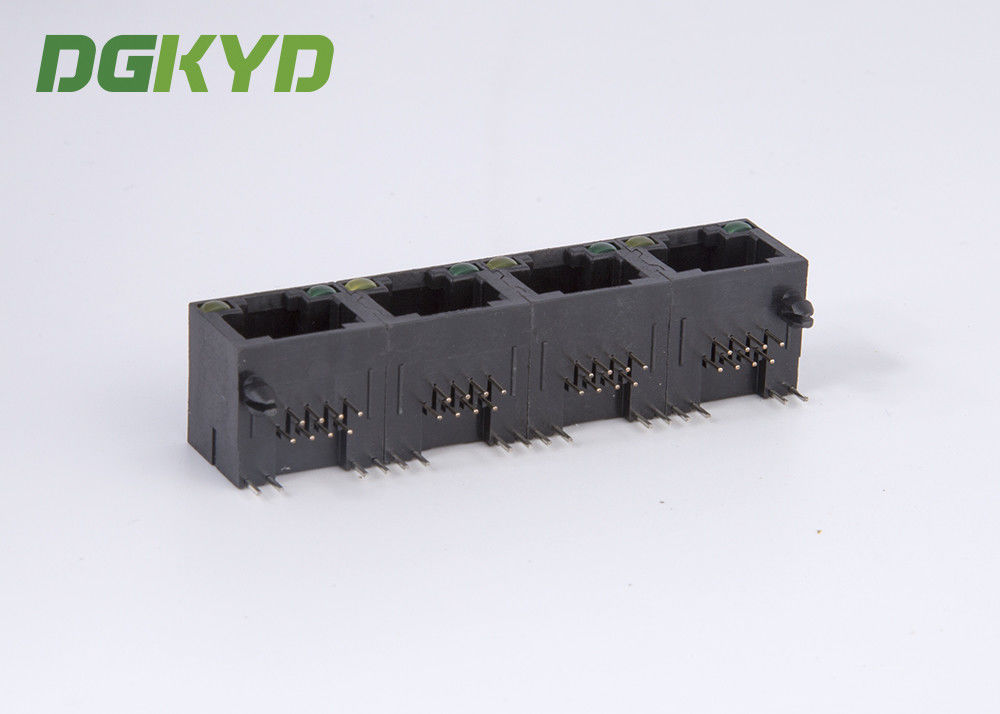

RJ45 Direct 1X4 With Light Strip Shielding 8P8C Network Interface RJ45 Connector DGKYD561488DE3A8D18B7MH
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-561X4YGWNL |
|
Detail Information |
|||
| LED: | Green & Yellow | Feature: | High Performance |
|---|---|---|---|
| RJ45 Suitable: | For CAT5 | Application: | Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices |
| Gender: | Female RJ45 | Product Name: | RJ45 Ethernet Connector |
| High Light: | multi rj45 connector,plug modular rj45,4 position rj45 keystone jack |
||
Product Description
| Part Number | KRJ-561X4YGWNL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | CE /UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | up |
| Filter | Without internal filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | Without Panel Stops |
| Shielded | unshielded | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | 4 port | Number of Positions | 8 |
| Jack Configuration | 1 x 4 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 0.6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board |
Through Hole-Press-Fit
|
Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
• Plastic Materials: UL 94V-0 Rated Glass-Filled Thermoplastics
• Contact Material: Copper Alloy
• Contact Plating: Selective Gold Plate in the Contact Interface Area
• Current Rating: 1.5 Amps (max)
• Voltage Rating: 150 VAC (max)
• Operating Temperature: -40°C to 85°C
• CAT3 to CAT5E connectors are available in shielded and unshielded configurations to support Gigabit Ethernet
• Jack dimensions meet FCC requirements when plated with 50 microinches of gold
Custom designs are available on request. Email techhelp@belf.com to submit your specific application needs.
Data sheets with electrical and mechanical specifications and Custom designs are available on request. Email dgkyd@dgkyd.com to submit your specific application needs.
► Product Drawing
