unshielded 4 position rj45 lan jack, tab up, without transformer

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-56S14WDWKNL

Detail Information

Feature: High Performance Application: Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices
Gender: Female Conenctor Product Name: RJ45 Connector

Product Description

► Product Description

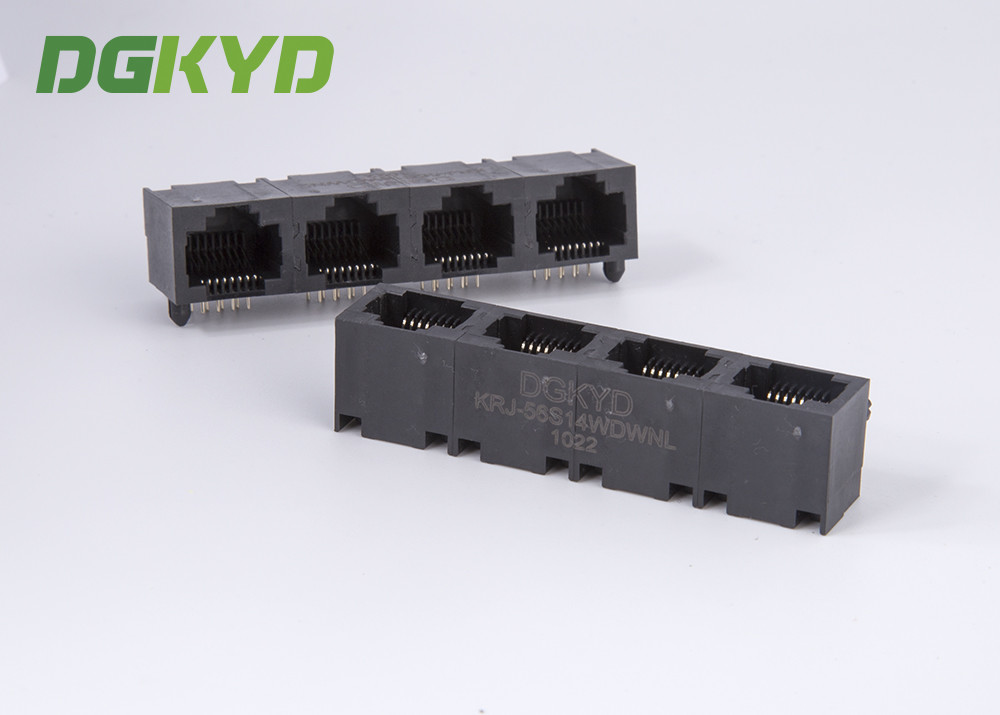

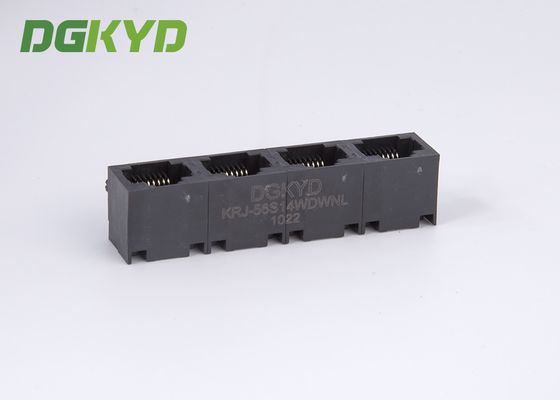

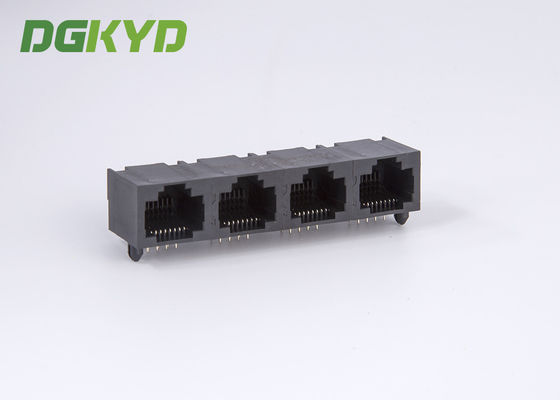

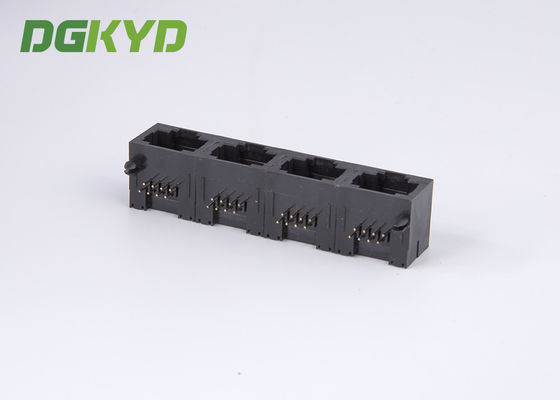

unshielded 4 position rj45 lan jack, tab up, without transformer



► Product Datasheet



Part Number KRJ-56S14WDWNL Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch down
Filter Without internal filter LED Option Without LED
LED Color N/A Panel Stops Without Panel Stops
Shielded unshielded Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  4 port Number of Positions  8
Jack Configuration 1 x 4 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 0.6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit



Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0






• Plastic Materials: UL 94V-0 Rated Glass-Filled Thermoplastics
• Contact Material: Copper Alloy
• Contact Plating: Selective Gold Plate in the Contact Interface Area
• Current Rating: 1.5 Amps (max)
• Voltage Rating: 150 VAC (max)
• Operating Temperature: -40°C to 85°C



• CAT3 to CAT5E connectors are available in shielded and unshielded configurations to support Gigabit Ethernet
• Jack dimensions meet FCC requirements when plated with 50 microinches of gold




► Product Drawing




unshielded 4 position rj45 lan jack, tab up, without transformer
