Unshielded black plastic housing CAT5 two port rj45 Female connector 100 BASE - TX Speed

China Unshielded black plastic housing CAT5 two port rj45 Female connector 100 BASE - TX Speed supplier
Unshielded black plastic housing CAT5 two port rj45 Female connector 100 BASE - TX Speed supplier Unshielded black plastic housing CAT5 two port rj45 Female connector 100 BASE - TX Speed supplier Unshielded black plastic housing CAT5 two port rj45 Female connector 100 BASE - TX Speed supplier Unshielded black plastic housing CAT5 two port rj45 Female connector 100 BASE - TX Speed supplier Unshielded black plastic housing CAT5 two port rj45 Female connector 100 BASE - TX Speed supplier Unshielded black plastic housing CAT5 two port rj45 Female connector 100 BASE - TX Speed supplier

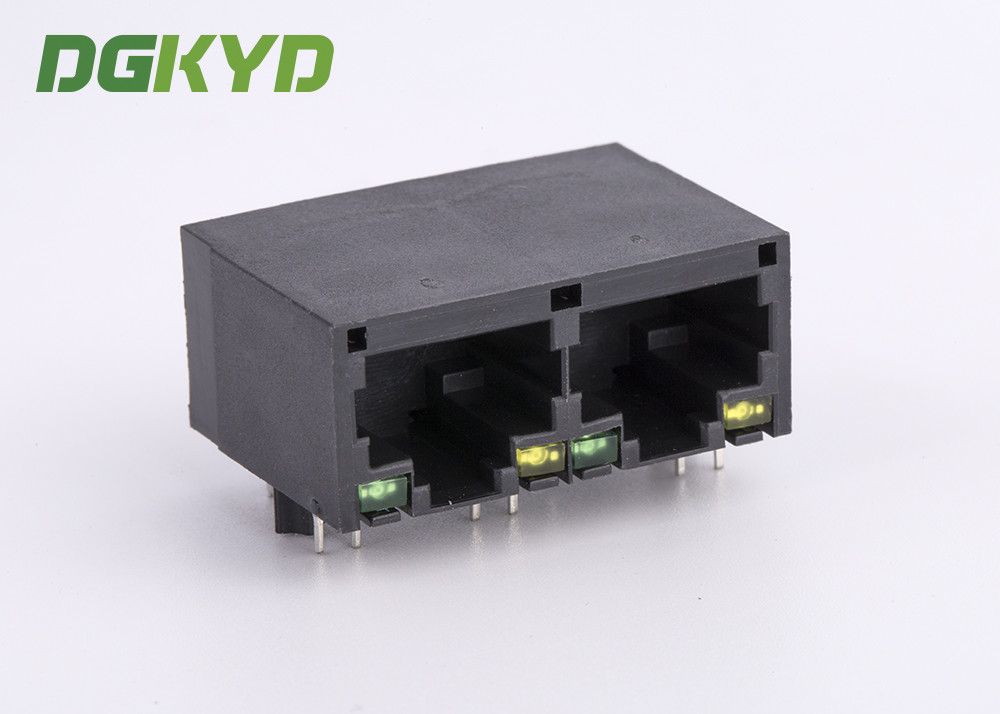

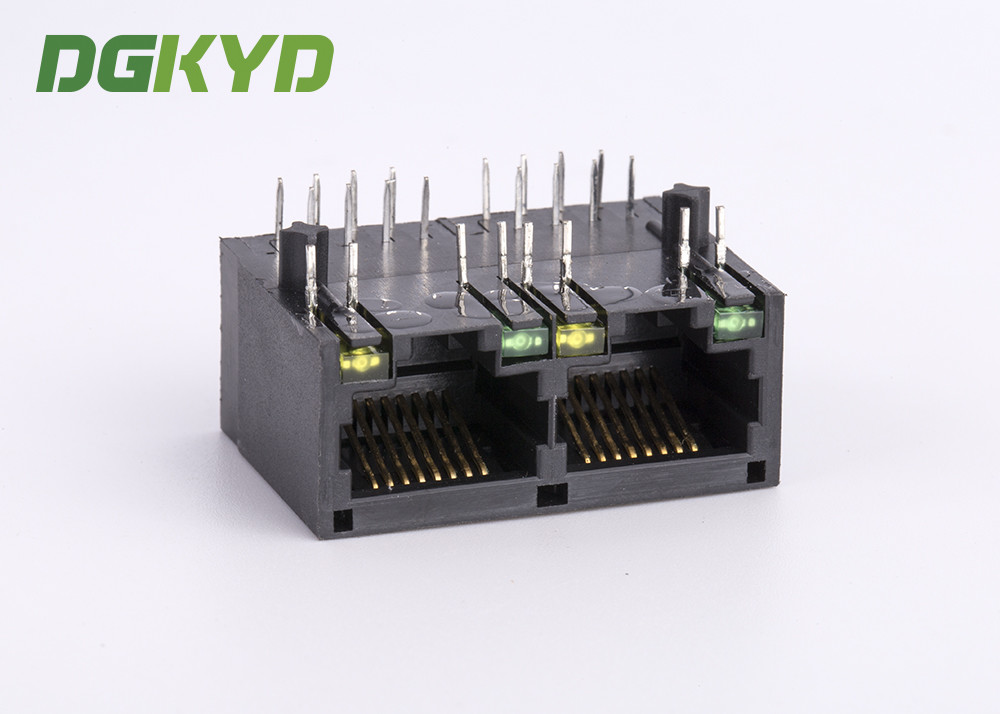

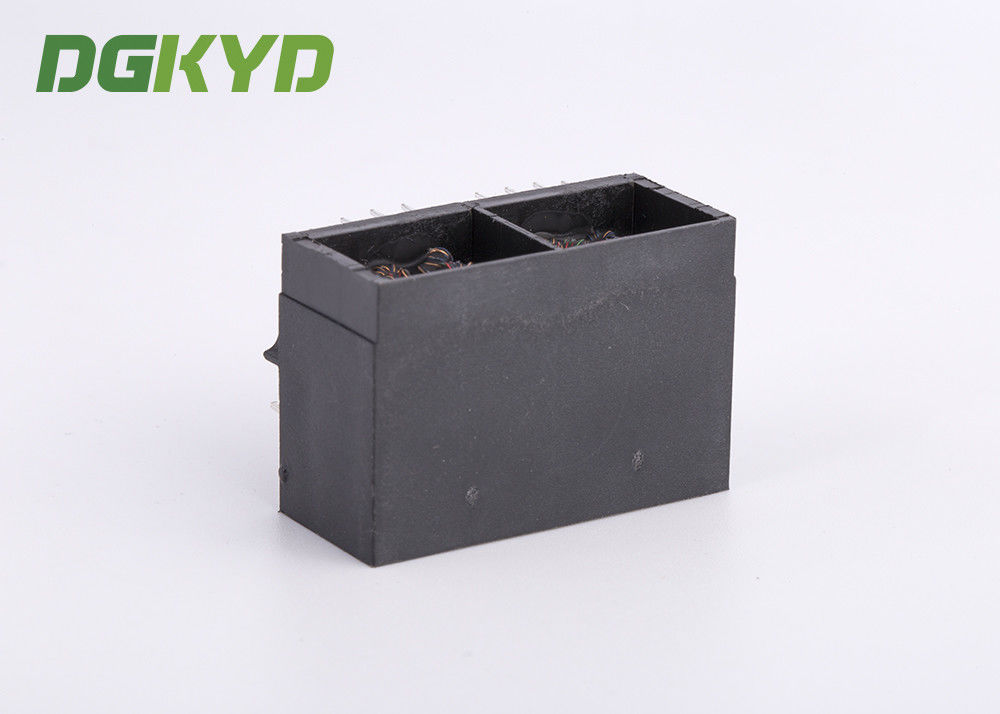

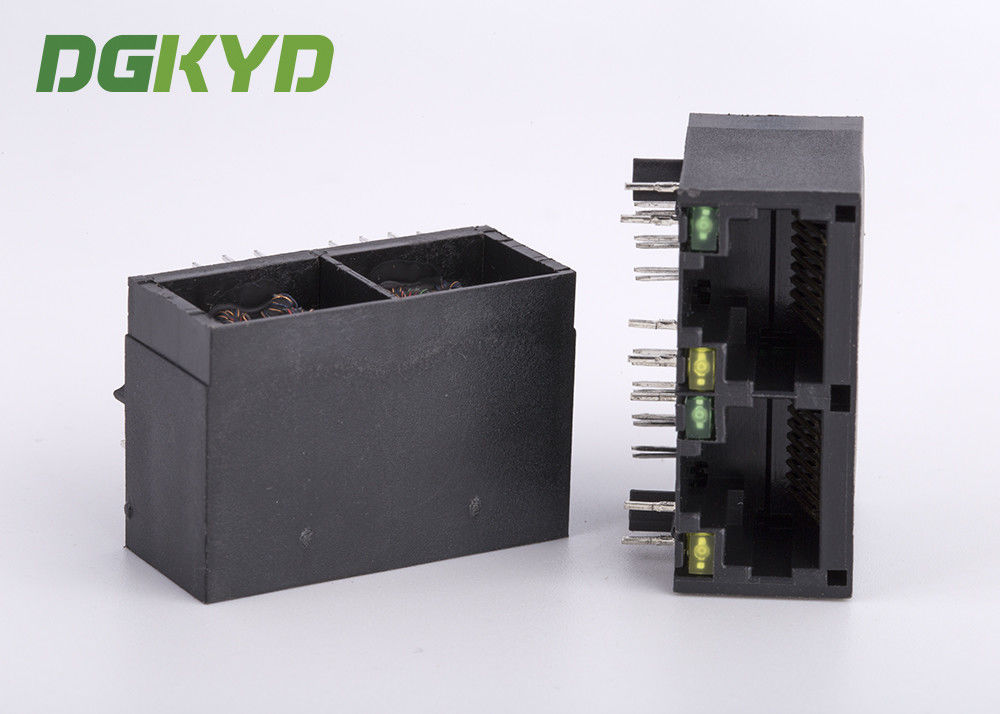

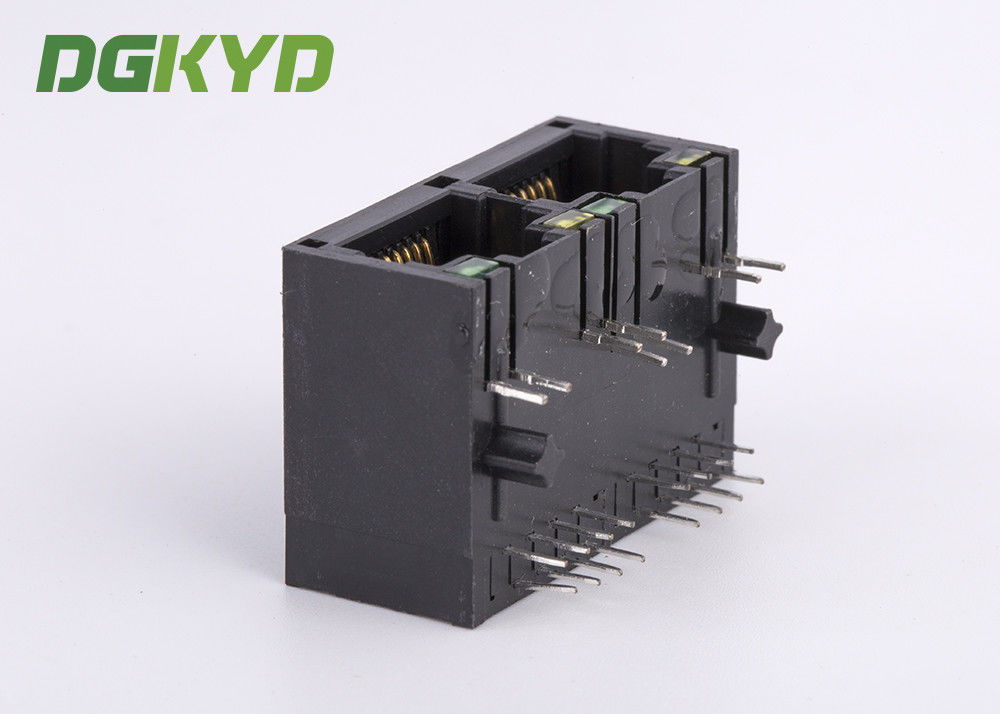

Large Image :  Unshielded black plastic housing CAT5 two port rj45 Female connector 100 BASE - TX Speed

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-201BNL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
EMI Fingers: For Optional Feature: High Performance
RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP Application: Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices
Gender: Female Jack Product Name: RJ45 Jack

KRJ -201BNL unshielded CAT5 2 port rj45 Female connector 100 BASE - TX Speed



Part Number KRJ-201BNL Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch down
Filter With internal filter LED Option With LED
LED Color Green / Yellow Panel Stops Without Panel Stops
Shielded unshielded Applies To  Printed Circuit Board
Performance Speed 100 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  2 port Number of Positions  8
Jack Configuration 1 x 2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit



Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0




Descriptions:

  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Length: 21.3 mm
