Gigabit Ethernet Modular Jack 2 Port RJ45 Connector 2x1 Offset St / Jk With Leds
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-562110P8C12NL |
|
Detail Information |
|||
| EMI Fingers: | For Optional | RJ45 Suitable: | For CAT5&6 Ethernet Cable Or UTP |
|---|---|---|---|
| Application: | Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices | Gender: | Female |
| Product Name: | RJ45 Connector | Housing Color: | Black |
| High Light: | dual port rj45 connector,dual port rj45,rj45 connector without transformer |
||
Product Description
► Product Description

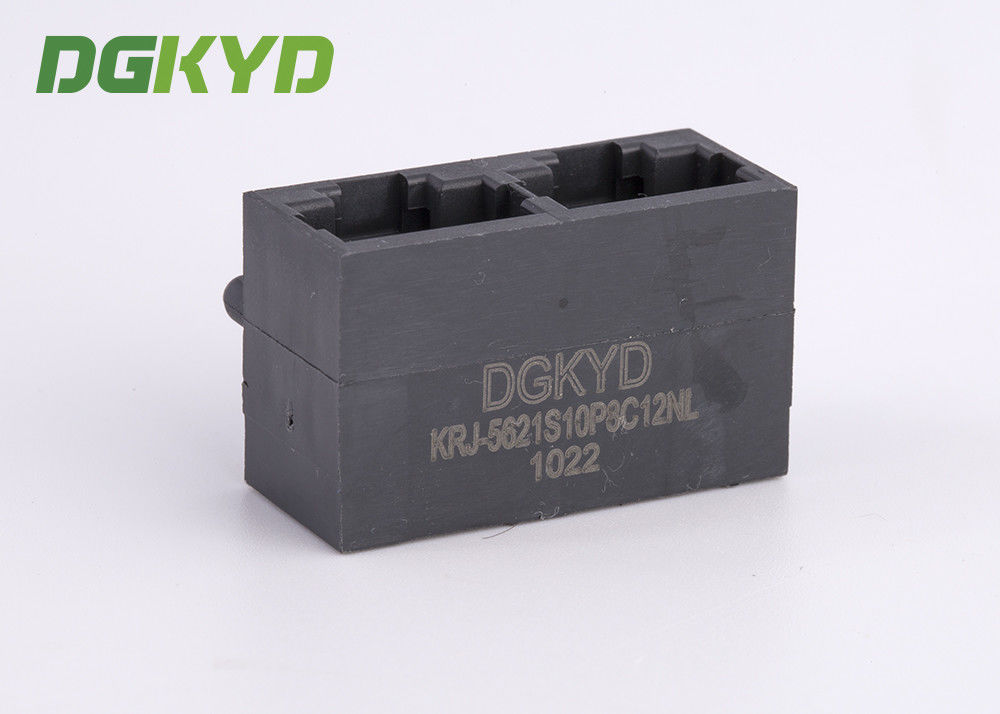

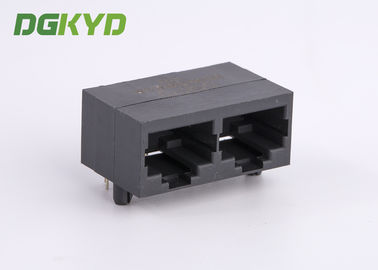

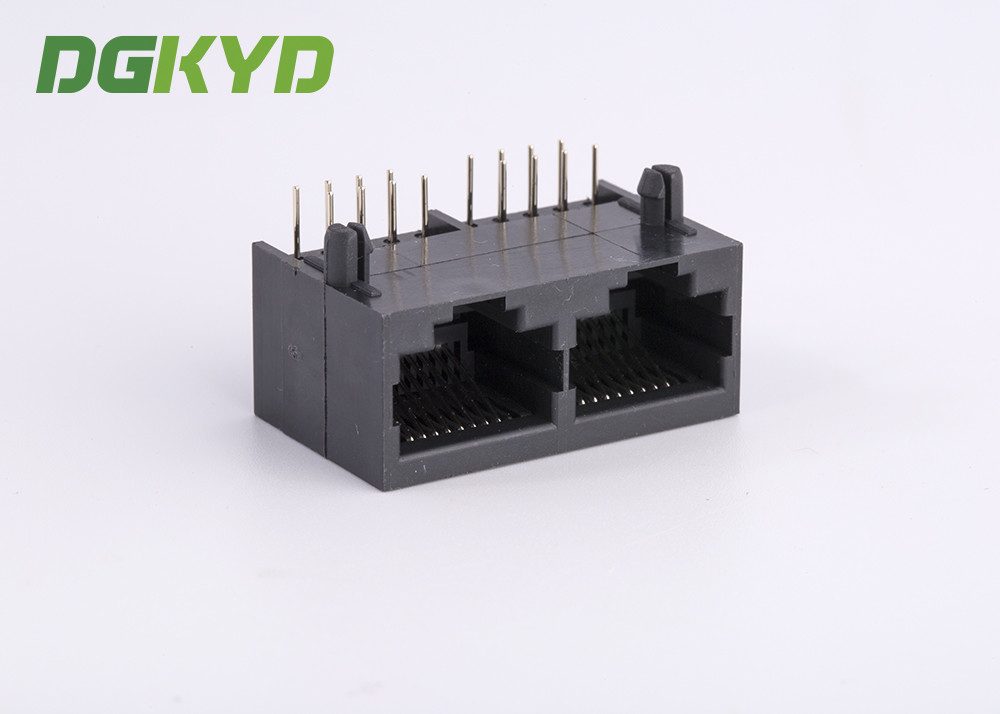

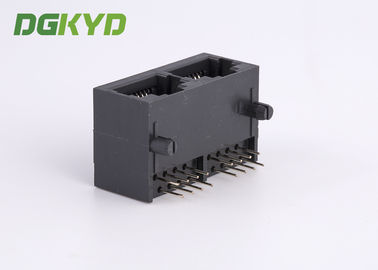

Black color unshielded2 position rj45 connector without transformer ,10P8C
► Product Datasheet
| Part Number | KRJ-562110P8C12NL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | CE /UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | down |
| Filter | Without internal filter | LED Option | Without LED |
| LED Color | N/A | Panel Stops | Without Panel Stops |
| Shielded | unshielded | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Two ports | Number of Positions | 10 |
| Jack Configuration | 1 x 2 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 0.6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board |
Through Hole-Press-Fit
|
Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
• Available in a two port harmonica jack configuration
• Allows for sealed protection from outside elements for IP67 applications per IEC 60529 Specifications
• The connector housing is comprised of a Zinc die cast alloy with Nickel plating
• A compact design that minimizes weight, volume and area over competitive products
• Port Density volume of 2.3 ports per in3
• Available with optional EPP 918-A protective coating
• Minimum of 750 mating cycles
• Includes a gasket that allows for front panel mounting or rear panel mounting
• Multiple LED configurations available
• POE+ compatible and RoHS compliant
