Shield right angle extra low profile rj45 ethernet connector, 8p8c jack

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-72A75MMNL

Detail Information

Port Configuration: Single Connector Style: Jack
Gender: Female Performance Category: Cat3
Transformer: NONE Height Profile: Extra Low Profile
High Light:

network jack rj45

,

rj45 connector jack

,

low profile rj45 ethernet connector

Product Description

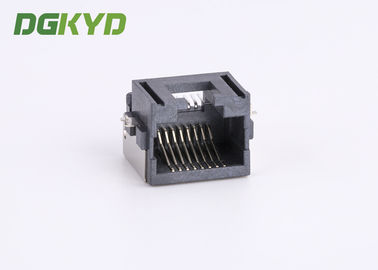

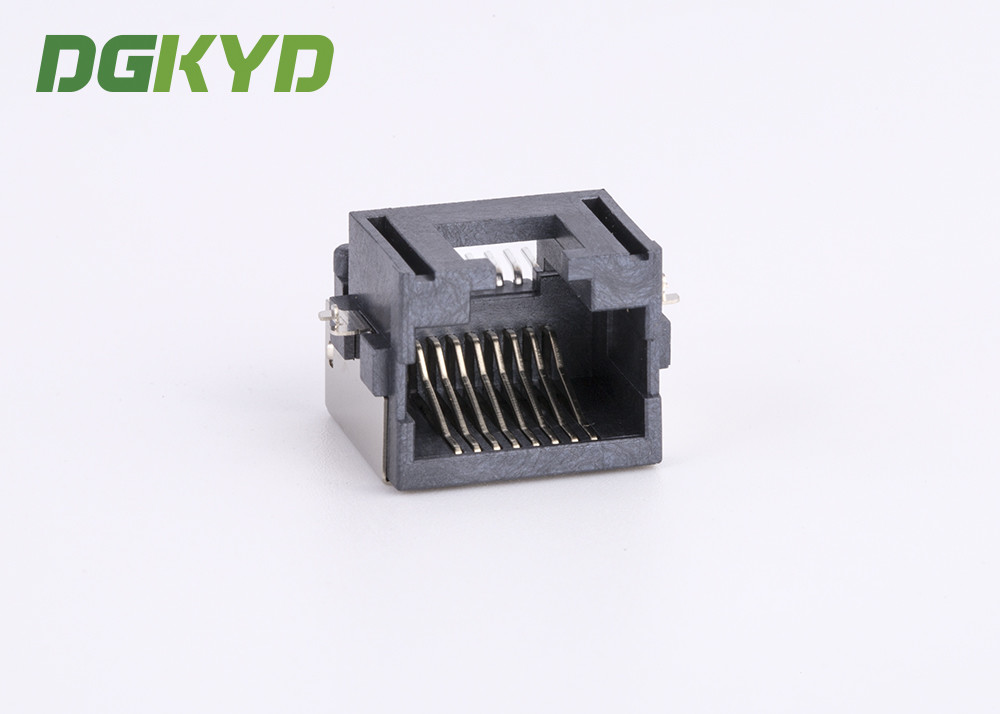

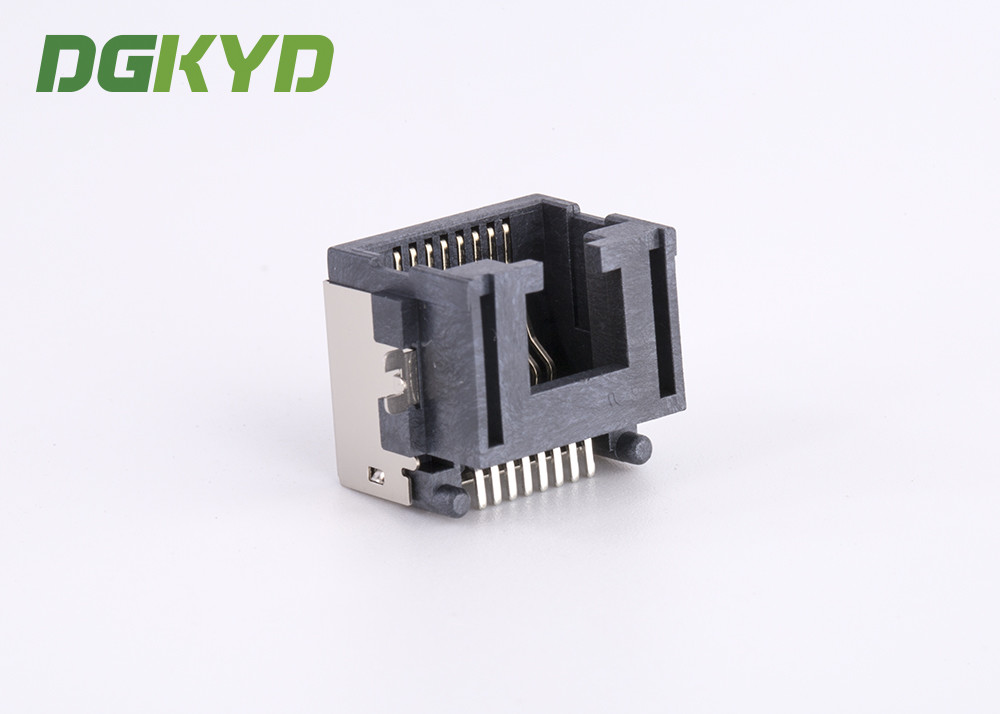

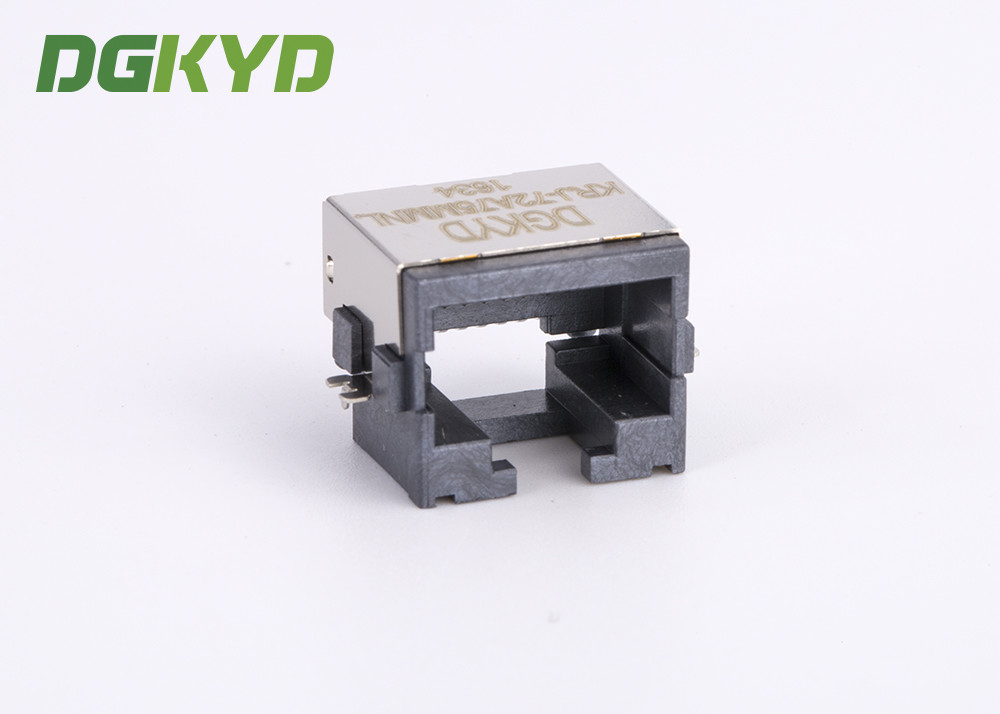

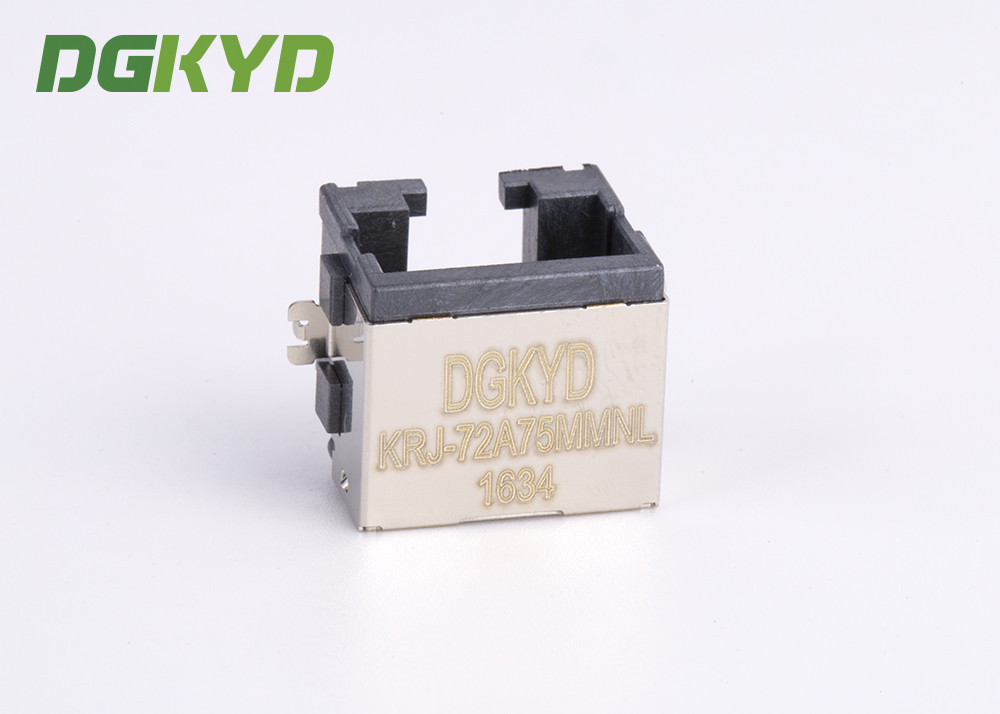

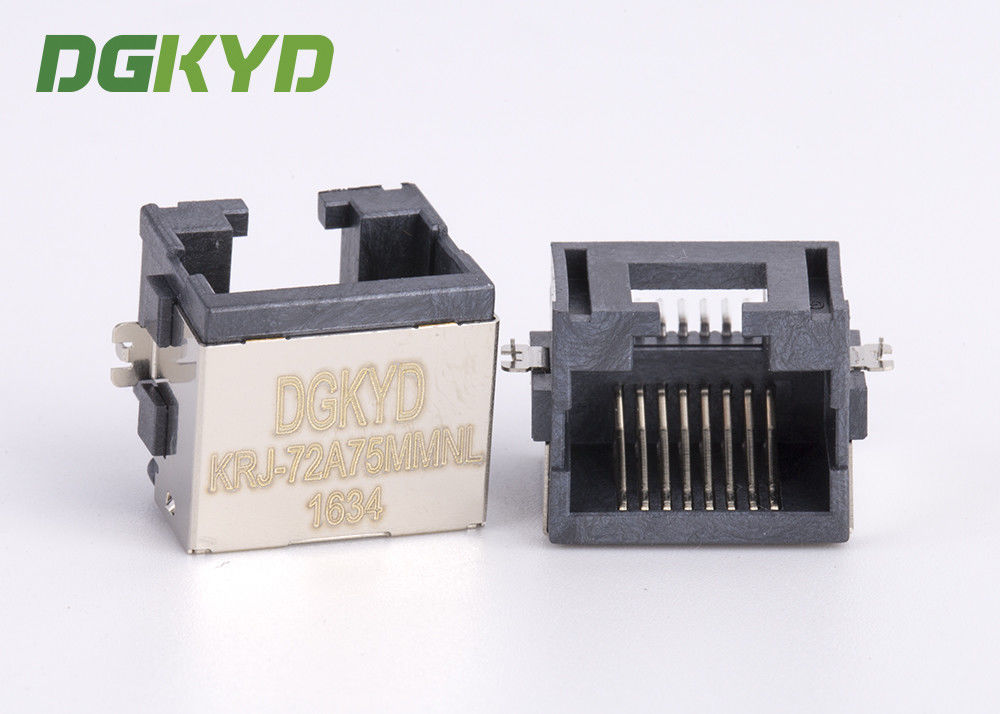

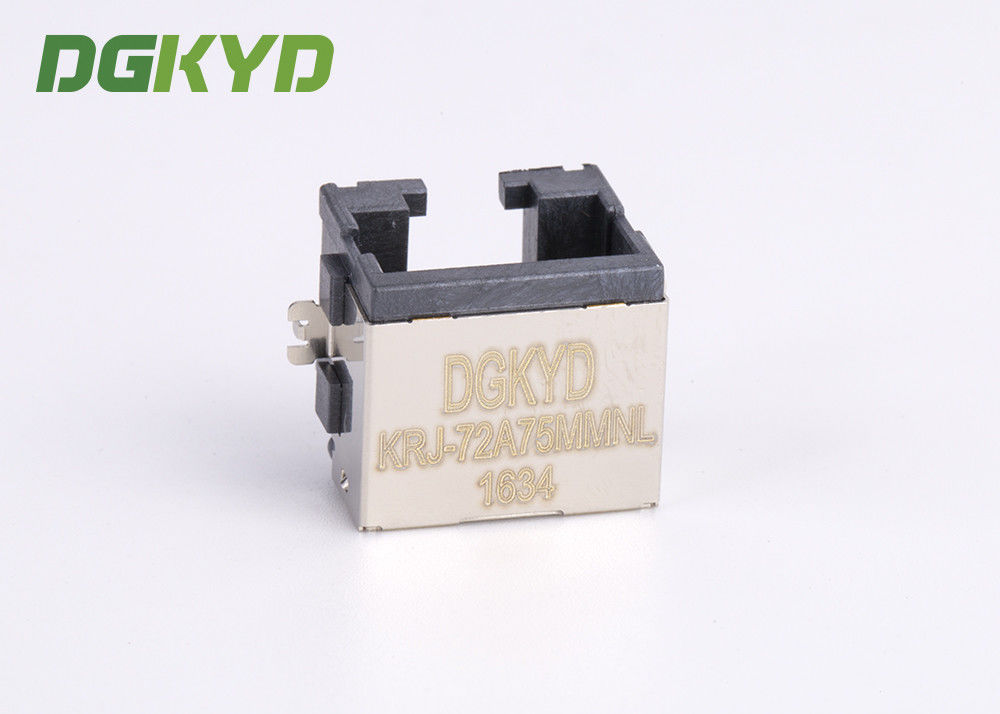

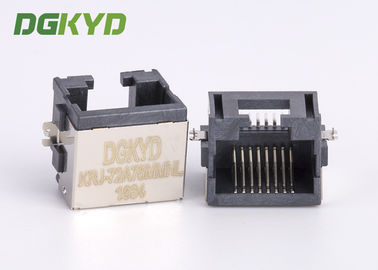

Shield right angle extra low profile rj45 ethernet connector, 8p8c jack

ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP NONE
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE SMT
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION NONE
LATCH ORIENTATION LATCH DOWN
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD FLASH PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK

















































► Product Description


Industrial RJ45 connector jacks with integrated magnetics are 260 degrees C PIP reflow capable which fit industrial assembly/solder process removing the need for an extra assembly/solder step. The thicker gold plating improves corrosion resistance and reduces electrical problems over the equipment lifetime, making the connectors more durable and reliable. With its extended temperature range the connector enables customers to use industrial RJ45 connectors in industrial environments.



  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Length:12.3mm

Electrical Specifications at 25℃

.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

            30-60MHZ -14.0dBmin

            60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

         30-60MHZ -35.0dBmin

         60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH  @100KHZ 100Mv 8mA  DC
