Single port Integrated magnetic rj45 USB jack with 10/100base transformer

China Single port Integrated magnetic rj45 USB jack  with 10/100base transformer supplier
Single port Integrated magnetic rj45 USB jack  with 10/100base transformer supplier Single port Integrated magnetic rj45 USB jack  with 10/100base transformer supplier Single port Integrated magnetic rj45 USB jack  with 10/100base transformer supplier Single port Integrated magnetic rj45 USB jack  with 10/100base transformer supplier Single port Integrated magnetic rj45 USB jack  with 10/100base transformer supplier

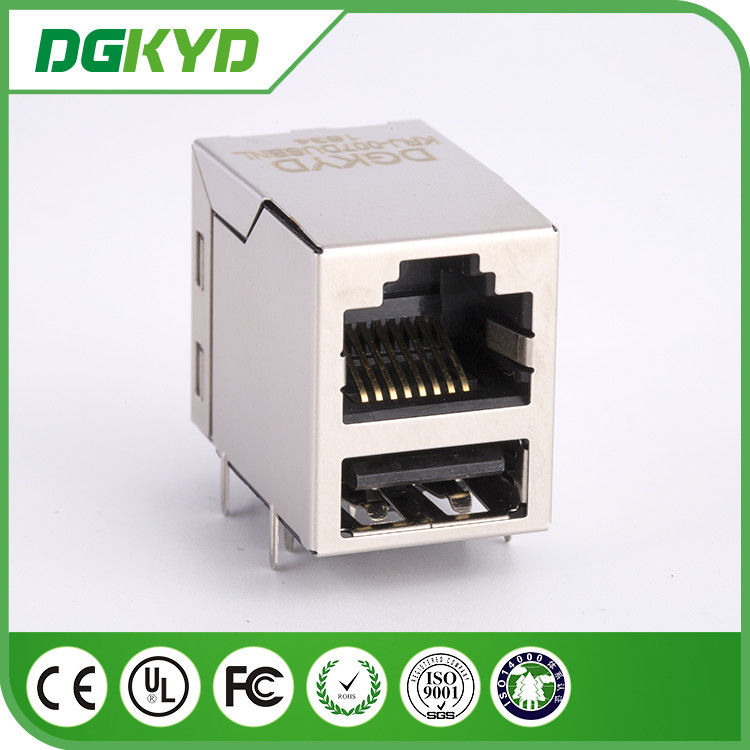

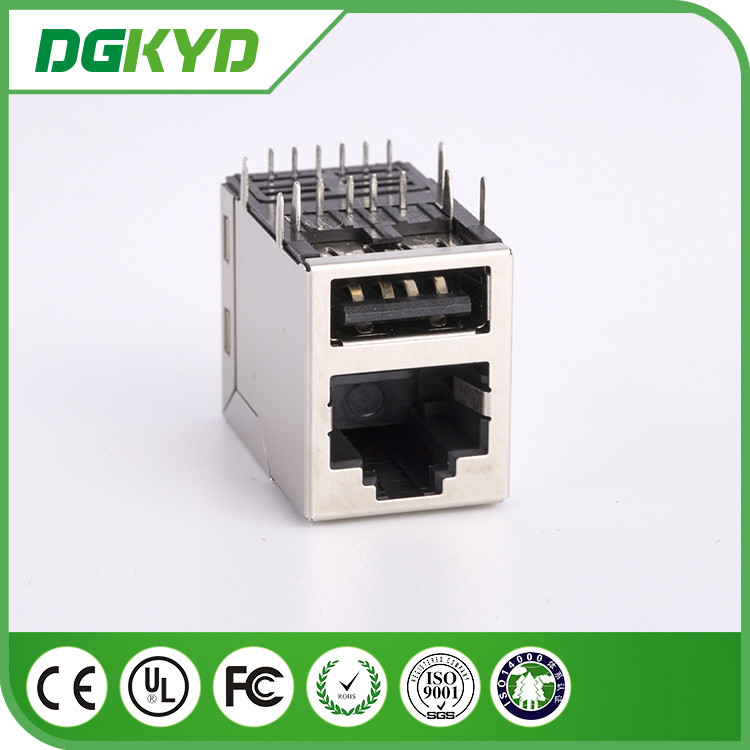

Large Image :  Single port Integrated magnetic rj45 USB jack with 10/100base transformer

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-007DWWUSBNL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description

Single port Integrated rj45 Modular jack  with 10/100base transformer and without led

1x1 Tab Up RJ45 With Single USB and w/o led KRJ-007DWWUSBNL



Electrical Specifications:

.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH @100KHZ 100Mv 8mA DC



Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,

100% test, 0 defect, short lead time are our best advantages



Single port Integrated magnetic rj45 USB jack  with 10/100base transformer
