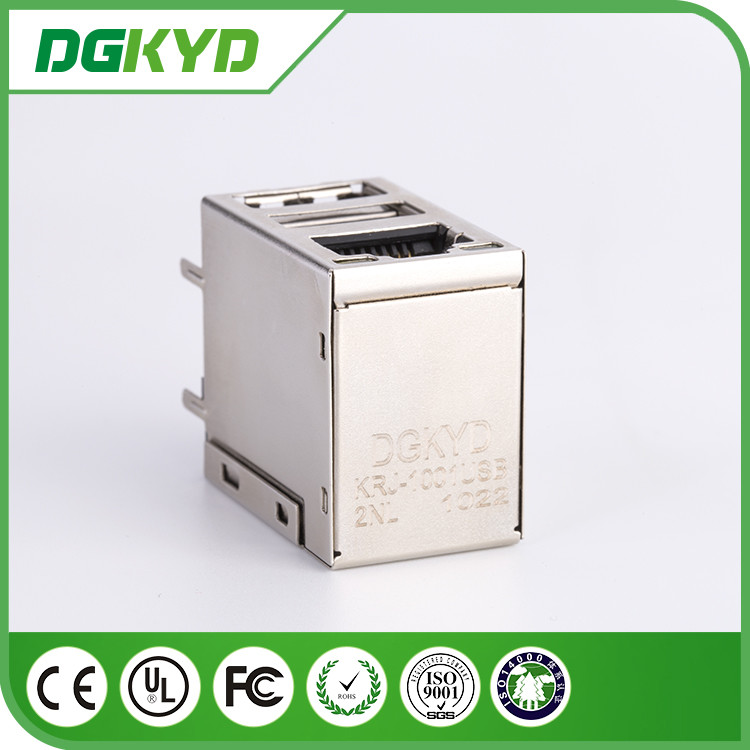

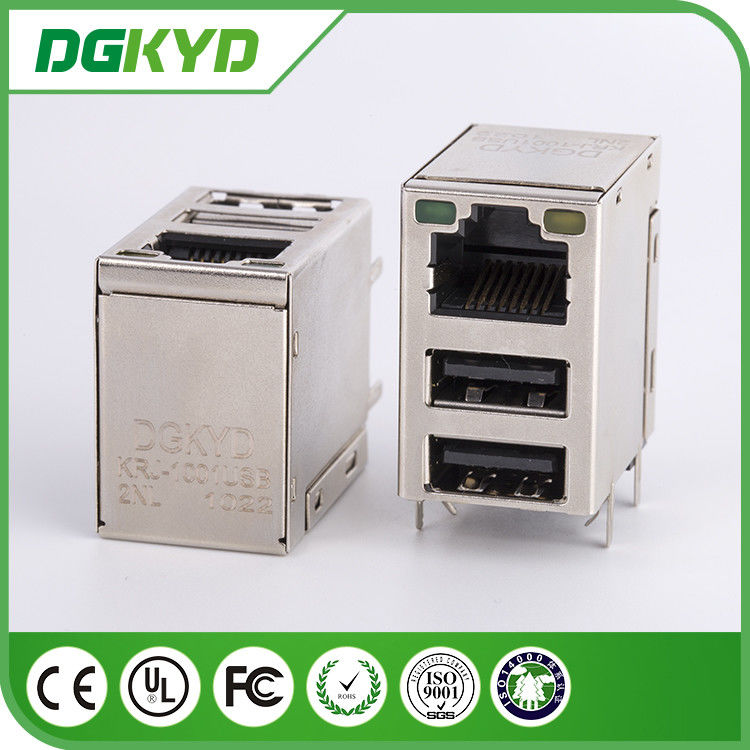

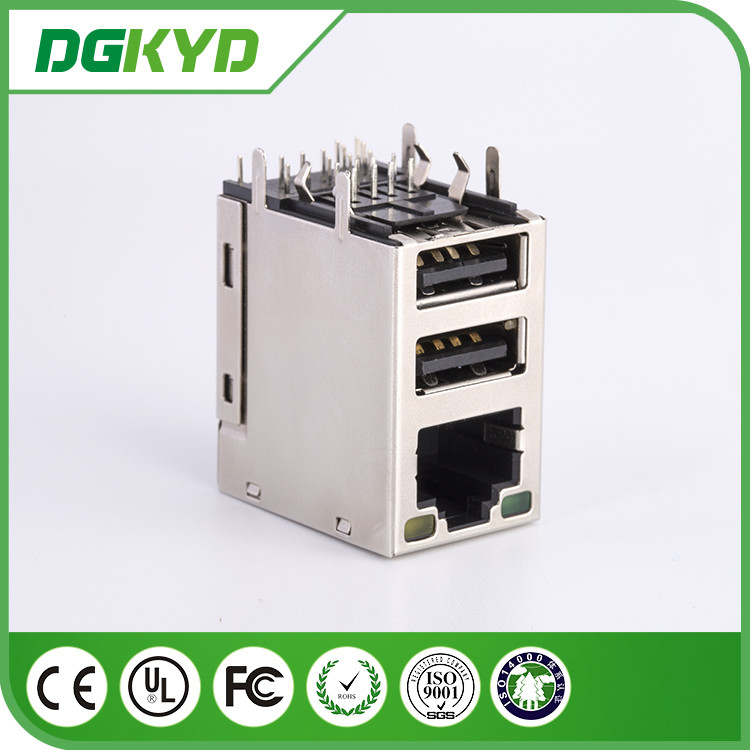

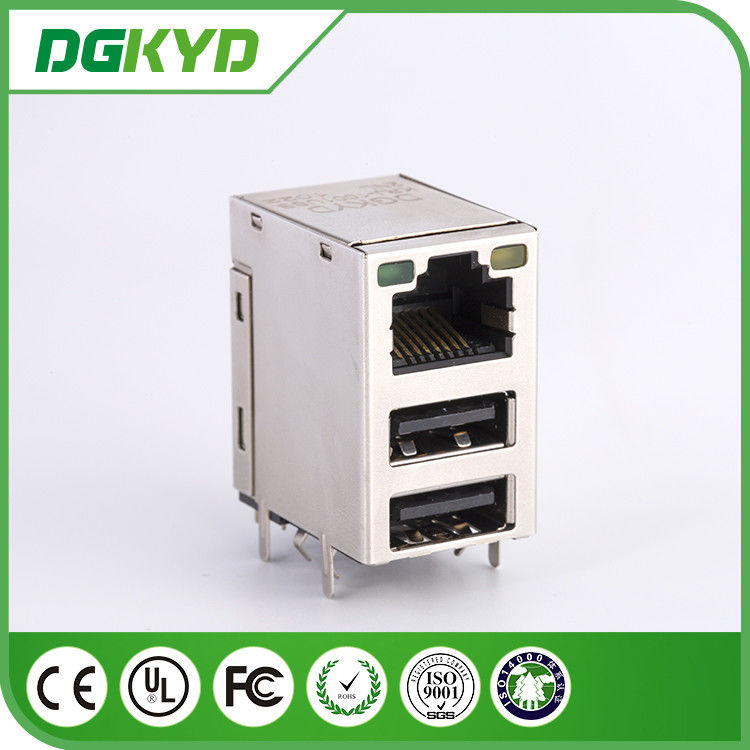

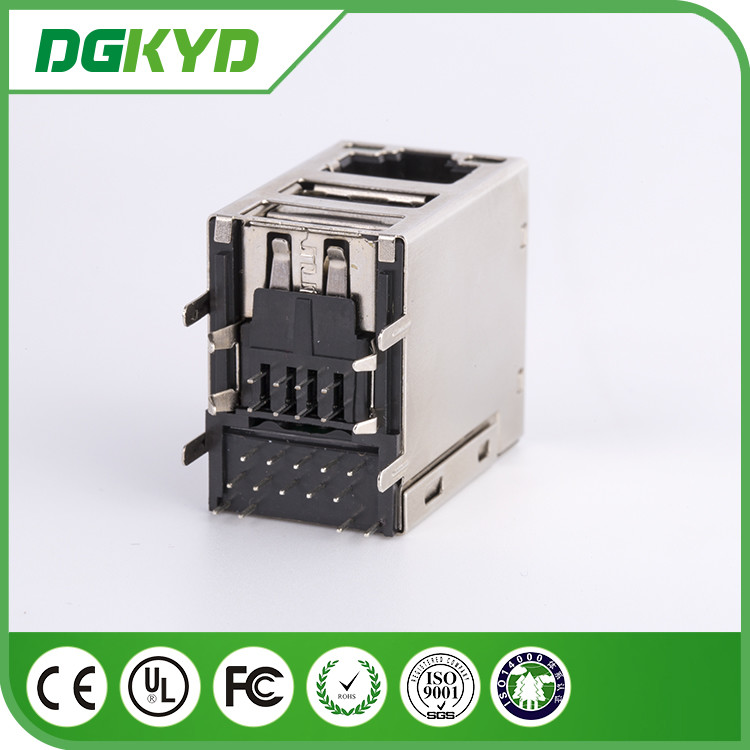

Gigabit RJ45 Connector Shielded with Double USB , Registered Jack 45





P/N:KRJ-1001USB2NL





Descriptions:



  • 10/100/1000Base-Tx RJ45 single port 1X1 Side Entry (Right Angle) with LEDS with 2 USB
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:10
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:29.0mm
  • LEDS:YES
  • EMI finger:NO
  • LEFT:Green,RIGHT:Yellow
  • Usage:KRJ-1001USB2NL





Mechanical Dimensions:(Unit:mm)



Gigabit RJ45 Connector Shielded with Double USB , Registered Jack 45

. XX Tolerance:+/-0.25

.XXX Tolerance:+/-0.13

Material specifications:



  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated



Electrical Specifications at 25℃

.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

            30-60MHZ -14.0dBmin

            60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

         30-60MHZ -35.0dBmin

         60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH  @100KHZ 100Mv 8mA  DC





Schematic:



Gigabit RJ45 Connector Shielded with Double USB , Registered Jack 45Gigabit RJ45 Connector Shielded with Double USB , Registered Jack 45

Applications:



• Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers, optical

transceiver, IPphone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA, DSL/ADSL and so on.





Competitive Advantage:



Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages.
