Gigabit ethernet RJ45 Jack stacked with Double USB port for industial application

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-1001USB2NL

Detail Information

No.Port: RJ45 Single Port Product Name: RJ45 With Transformer
Type: RJ45 Female Housing: Phenolic, PBT Black (UL94V-0)
Plastic Core: Glass Fiber Filler PBT Black(UL94V-0),ROHS Shield RJ45: Yes

Product Description

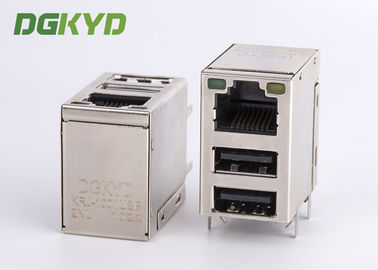

RJ45 Network Jack Double USB / Registered Jack 45 Single Port



Part Number:KRJ-1001USB2NL





Feature:

RJ45 ,in order to keep good touch between gold finger and crystal head, should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u, according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.







Description:



  • 10/100/1000Base-Tx RJ45 single port 1X1 Right Angle with LEDS and double USB
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:10
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant
  • Length:29.0mm
  • LEDS:YES
  • EMI finger:NO
  • LEFT LED:Green,RIGHT LED:Yellow
  • Usage:KRJ-1001USB2NL







Applications:





• Integrated RJ45 connector main used to :

• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set- top box,internet camera,netbridge,computer,telecommunication,

MODEM,HomePNA,DSL/ADSL and so on.









Specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0),ROHS
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated





Dimensional Drawing:(UNIT:mm



. XX Tolerance:+/-0.25

 .XXX Tolerance:+/-0.13

Electrical Specifications at 25:

.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

            30-60MHZ -14.0dBmin

            60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

         30-60MHZ -35.0dBmin

         60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH  @100KHZ 100Mv 8mA   DC







Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly , 100% test, 0 defect, short lead time are our best advantages
