High Performance Stacked USB RJ45 connector combo, 1000Mb, with LEDs
-
-
Large Image :
High Performance Stacked USB RJ45 connector combo, 1000Mb, with LEDs
|
Product Details:
| Place of Origin: |
DongGuan of China |
| Brand Name: |
DGKYD |
| Certification: |
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 |
| Model Number: |
KRJ-008QUSBNL |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 piece |
| Price: |
Please contact us to get the latest price. |
| Packaging Details: |
Tray in Carton |
| Delivery Time: |
10 days |
| Payment Terms: |
T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability: |
100K pcs/day |
|
Detailed Product Description
| Product Name: |
RJ45 With Transformer |
Type: |
Connector Combo |
| Housing: |
Phenolic, PBT Black (UL94V-0) |
Shield RJ45: |
Yes |
| No.Port: |
RJ45 Single Port With USB |
RoHS: |
Yes |
KRJ-008QUSBNL High Performance Shielded USB RJ45 connector, 1000 BASE, with LEDs
Part Number: KRJ-008QUSBNL
- 10/100Base-Tx RJ45 single port 1X1 Right Angle with LEDS with USB
- Single port 1X1 Tab-Up RJ45 with internal magnetics
- Internal magnetics are 100% electrically tested for HI-POT and functionality
- 350uHminimum OCL with 8mA bias current
- High performance for maximum EMI suppression
- Minimum 1500Vrms isolation per IEEE 802.3 requirement
- ROHS-6 peak wave solder temperature rating 260℃
- Operating temperarure range :0℃ to +70℃
- Storage temperature range :-40℃ to +85℃
- Number of positions:8
- Number of contacts loaded:8
- Shield:YES
- Rohs compliant
- LEDS:YES
- EMI fingers:YES
- LEFT LED:Green,RIGHT LED:Yellow
- Usage: KRJ-008QUSBNL

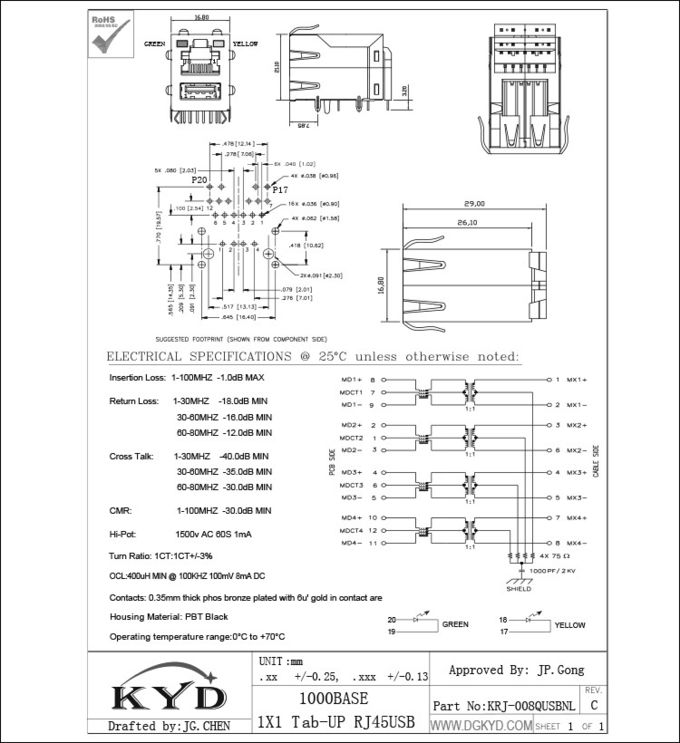

Specifications:
Material specifications:
- Plastic core:Glass fiber filler PBT Black(UL94V-0)
- Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
- PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
- Housing:Phenolic, PBT Black (UL94V-0)
- Metal shell:Copper Alloy ,Tin and Nickel plated
RJ45 ,in order to keep good touch between gold finger and crystal head, should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u, according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.
