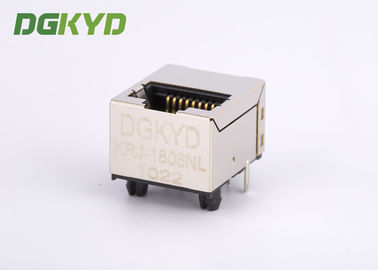

height 12mm low profile 100 BASE Top entry Female RJ45 lan jack with Magnetics

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-1806NL

Detail Information

Product Name: RJ45 With Transformer Type: RJ45 Female
Housing: Phenolic, PBT Black (UL94V-0) Plastic Core: Glass Fiber Filler PBT Black(UL94V-0),ROHS
Shield RJ45: Yes No.Port: RJ45 Single Port

Product Description

Height 12mm low profile 100 BASE Top entry Female RJ45 lan jack with Magnetics



height 12mm  low profile 100 BASE Top entry Female RJ45 lan jack with Magnetics

Features

  • Improves durability and reliability for RJ11 and RJ45 modular jacks
  • Helps prevent corrosion from harsh environmental conditions
  • Withstands high temperature soldering (in excess of 260° C for 10 seconds)
  • Low Level Contact Resistance (LLCR) testing to 10K cycles with no measurable change to gold plated contacts
  • Contains a UV tracer for visible inspection of the EPP-918A coating on the contacts
  • EPP-918A contact protectant can be used with any Bel Stewart jack to increase durability and reliability



Electrical Specifications at 25℃

.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

            30-60MHZ -14.0dBmin

            60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

         30-60MHZ -35.0dBmin

         60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH  @100KHZ 100Mv 8mA   DC





Applications:



Integrated RJ45 connector main used to :



• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL/ADSL and so on.

height 12mm  low profile 100 BASE Top entry Female RJ45 lan jack with Magnetics



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, 0 defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,pls do not hesitate to contact us by email or TradeManager. We will asap reply with in 24h.
