Vertical entry 100 Base-tx RJ45 LAN Jack High Performance Communication IEEE 802.3

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-180RNL

Detail Information

Plastic Core: Glass Fiber Filler PBT Black(UL94V-0),ROHS Product Name: RJ45 With Transformer
Housing: Phenolic, PBT Black (UL94V-0) Type: RJ45 Female
No.Port: RJ45 Single Port Shield RJ45: Yes

Product Description

Communication RJ45 Magnetic Jack IEEE 802.3 High Performance

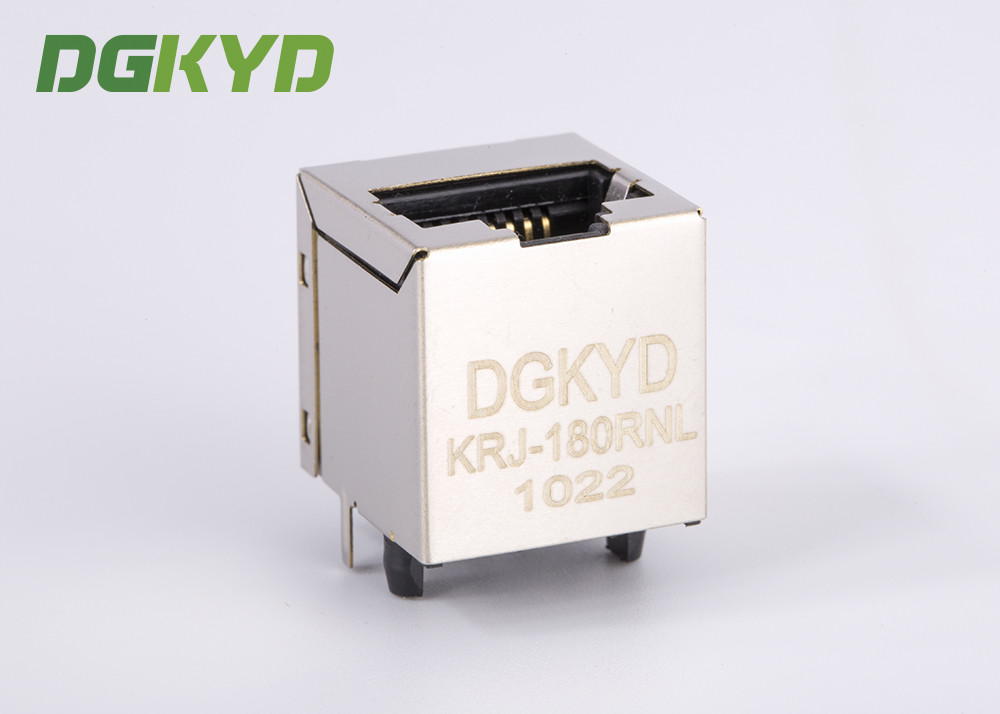

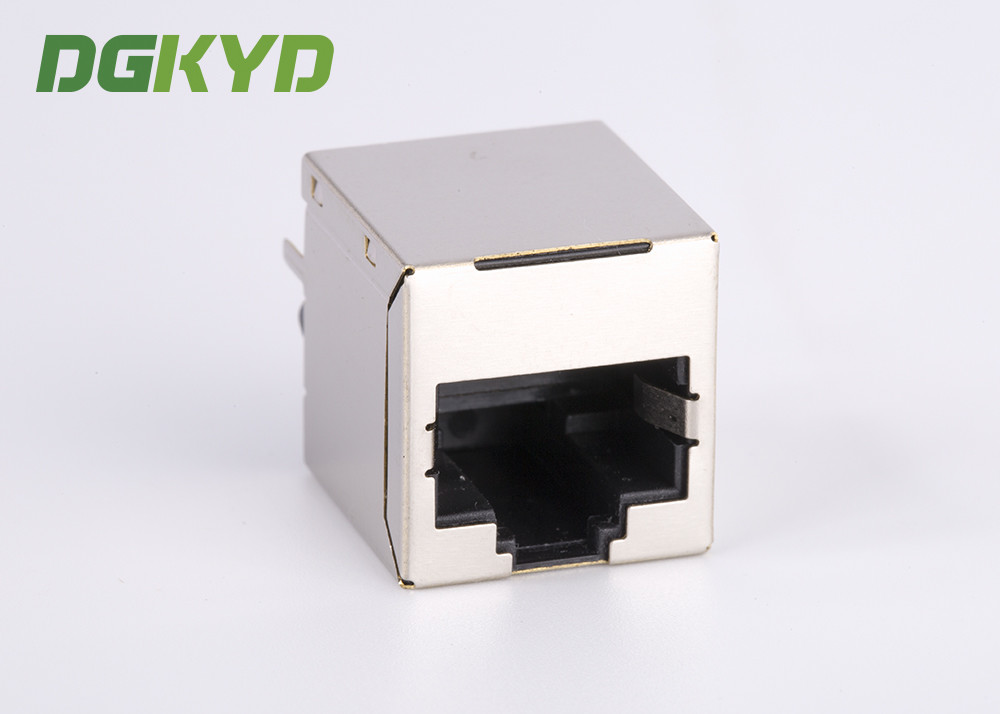

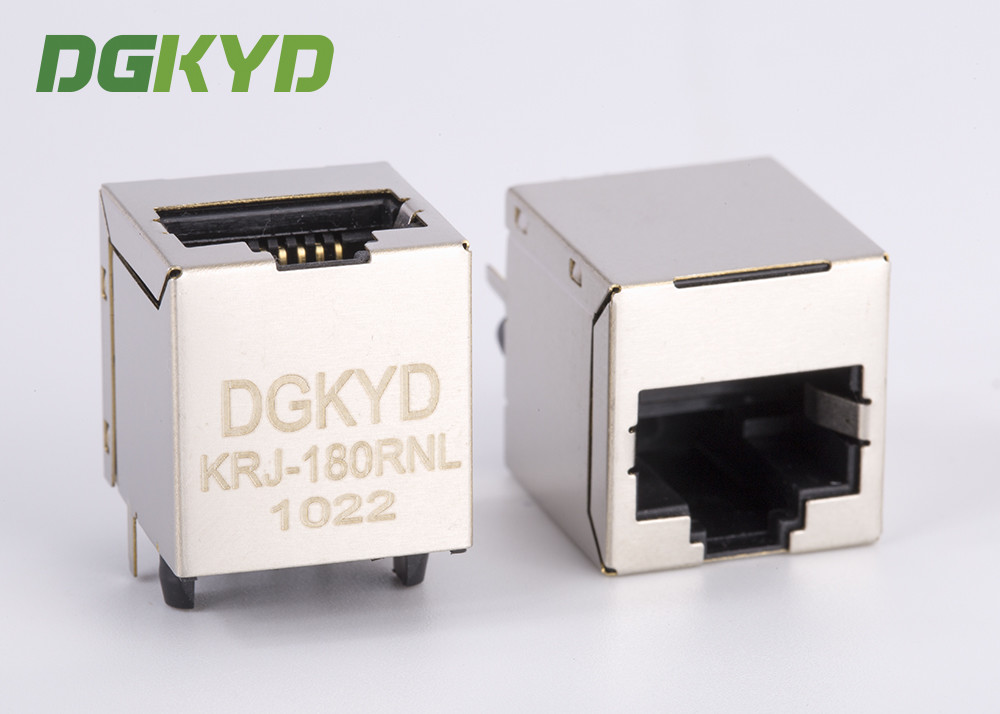

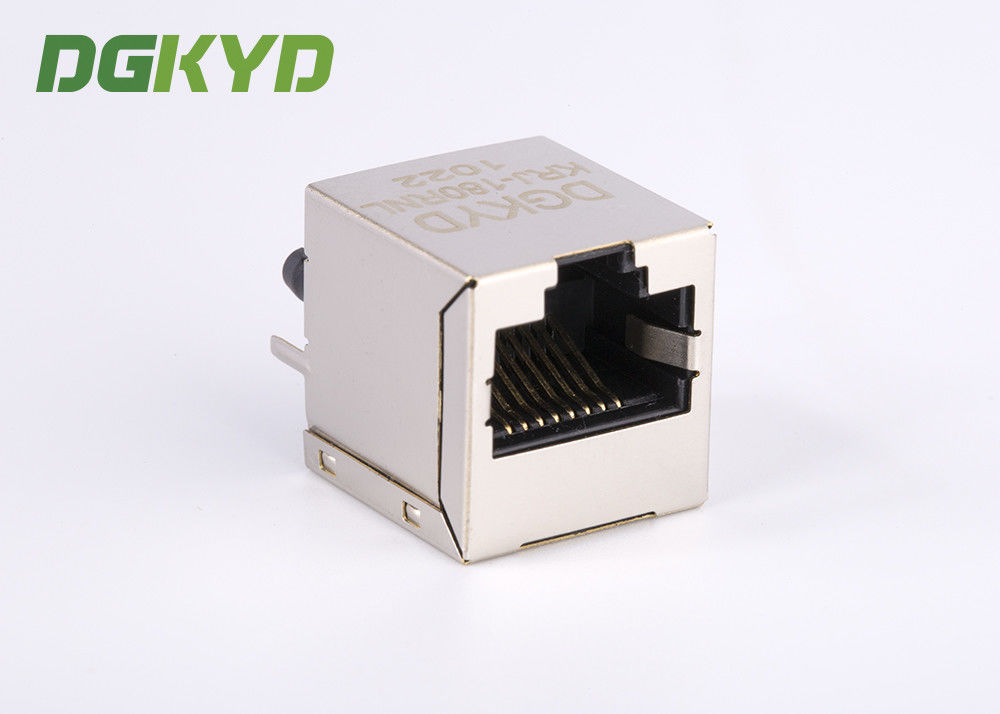

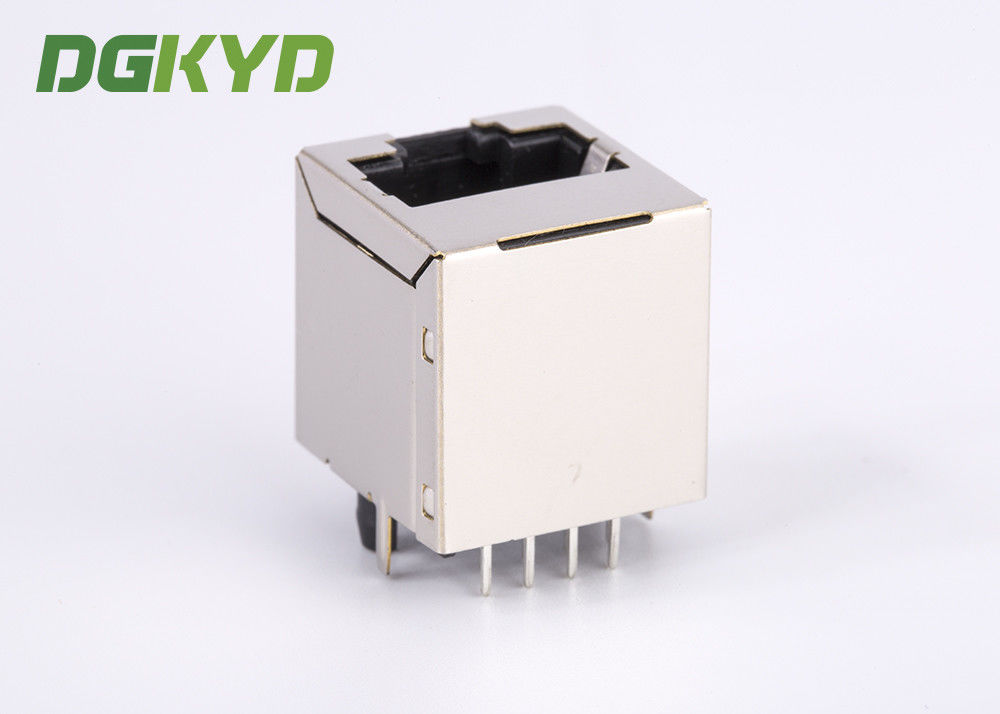

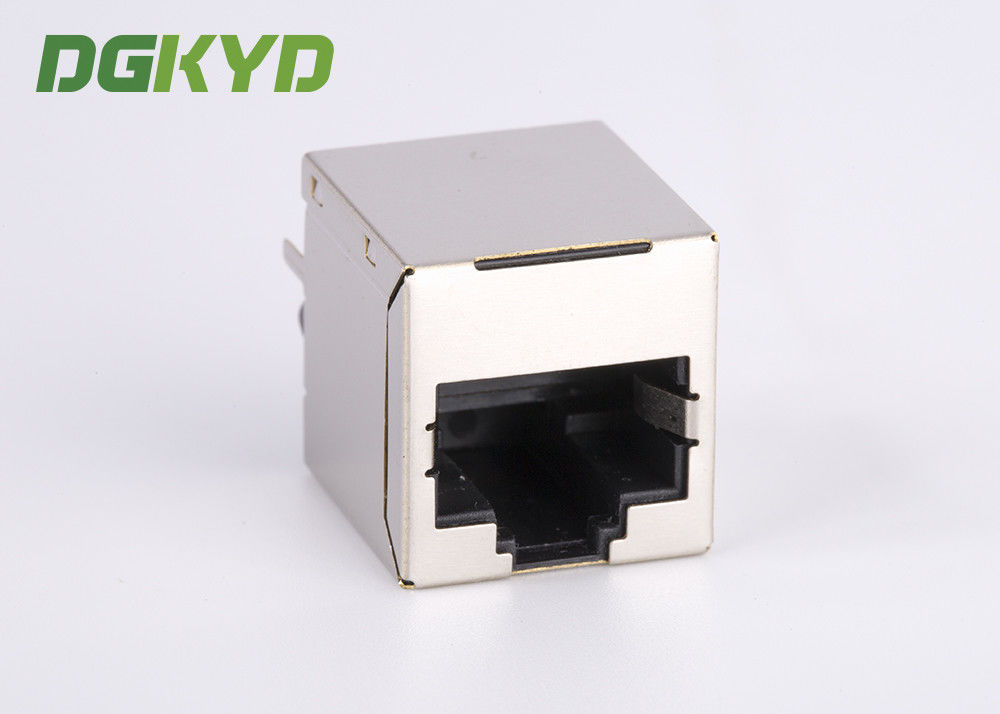

Vertical entry 100 Base-tx RJ45 LAN Jack High Performance Communication IEEE 802.3

  • 10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with top entry
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:Yes
  • Rohs compliant
  • Length:16.00mm
  • LEDS:No
  • Usage:KRJ-180RNL



Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Electrical Specifications at 25℃

.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

            30-60MHZ -14.0dBmin

            60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

         30-60MHZ -35.0dBmin

         60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH  @100KHZ 100Mv 8mA   DC



Competitive Advantage:



Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, 0 defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,pls do not hesitate to contact us by email or TradeManager. We will asap reply with in 24h.
