Tap Up RJ45 with Transformer megabit ethernet magnetic connector jack custom

Place of Origin: Dong Guan China Brand Name: DGKYD
Certification: SGS、ISO9001-2008、ISO14001-2004 Model Number: KRJ-098DBNL

Detail Information

Housing: Phenolic, PBT Black (UL94V-0) Plastic Core: Glass Fiber Filler PBT Black(UL94V-0),ROHS
Shield RJ45: Yes No.Port: Single Port
Type: RJ45 Product Name: RJ45 With Transformer

Product Description

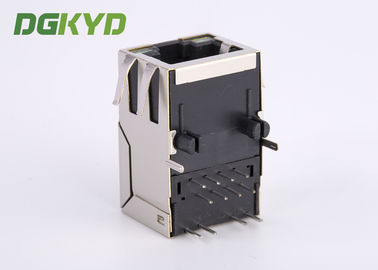

Tap Up RJ45 with Transformer megabit ethernet magnetic connector jack custom

  • 10/100Base-Tx RJ45 single port 1X1 with LEDS, Side Entry (Right Angle)
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant
  • Length:25.4mm
  • LEDS:YES
  • EMI finger:NO
  • LEFT LED:Green,RIGHT LED:Yellow



Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Tap Up RJ45 with Transformer megabit ethernet magnetic connector jack custom

RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed,

gold finger insert and pull life should be 750 times above



Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set top box,internet camera,netbridge,computer, telecommunication, MODEM, HomePNA, DSL/ADSL and so on.



Competitive Advantage:



Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
