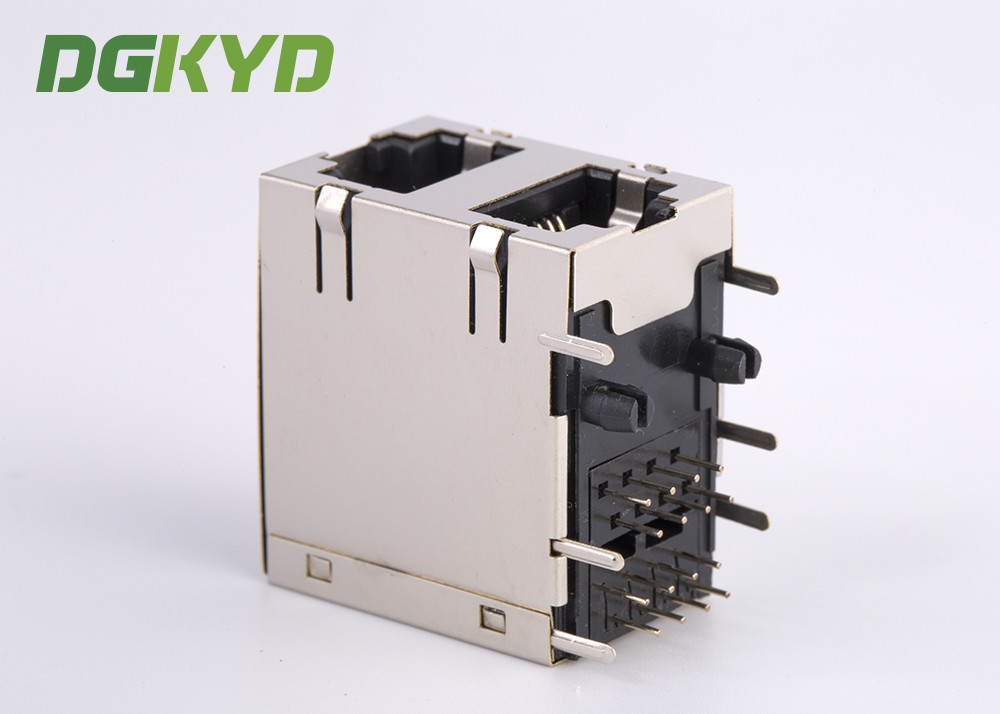

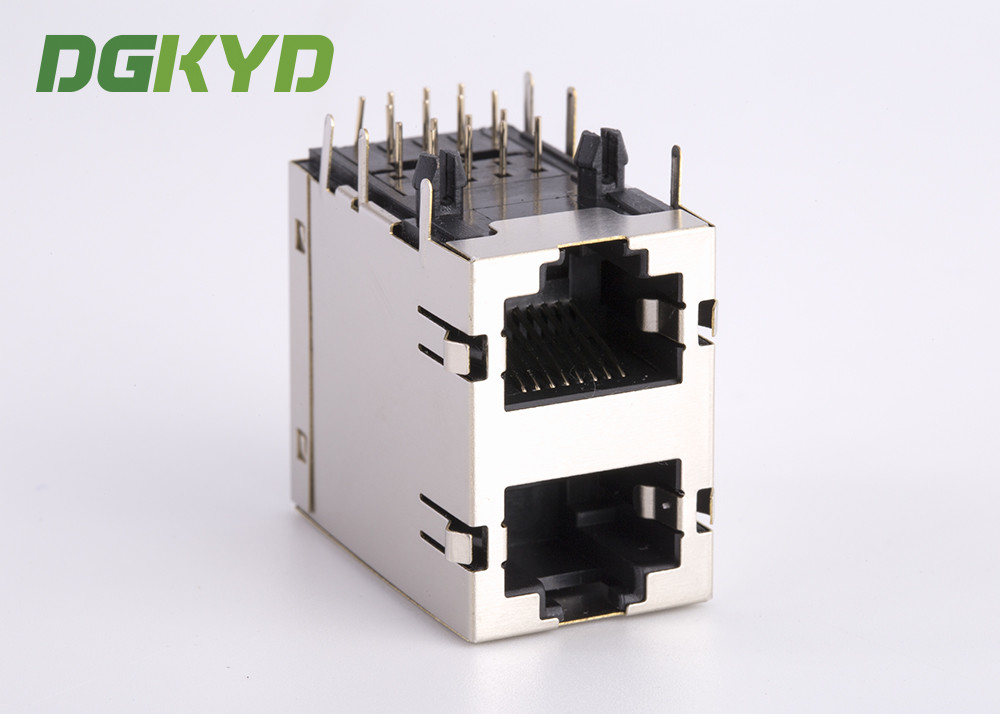

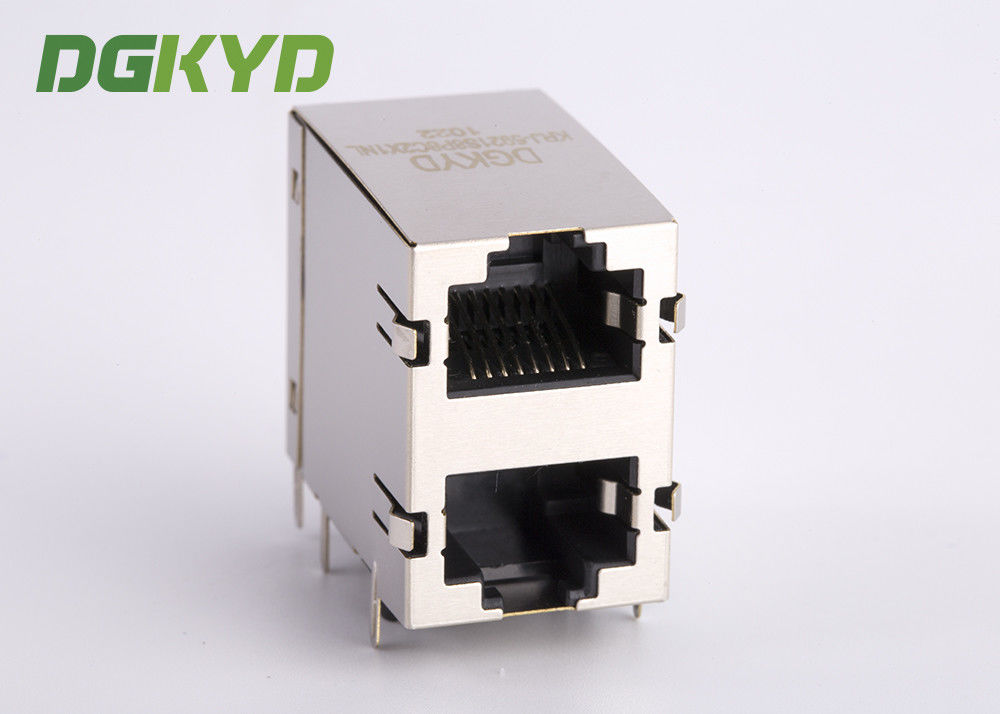

Shield right Angle 2 x 1 dual Port RJ45 Ethernet Connector, 10/100/1000 BASE-TX

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD

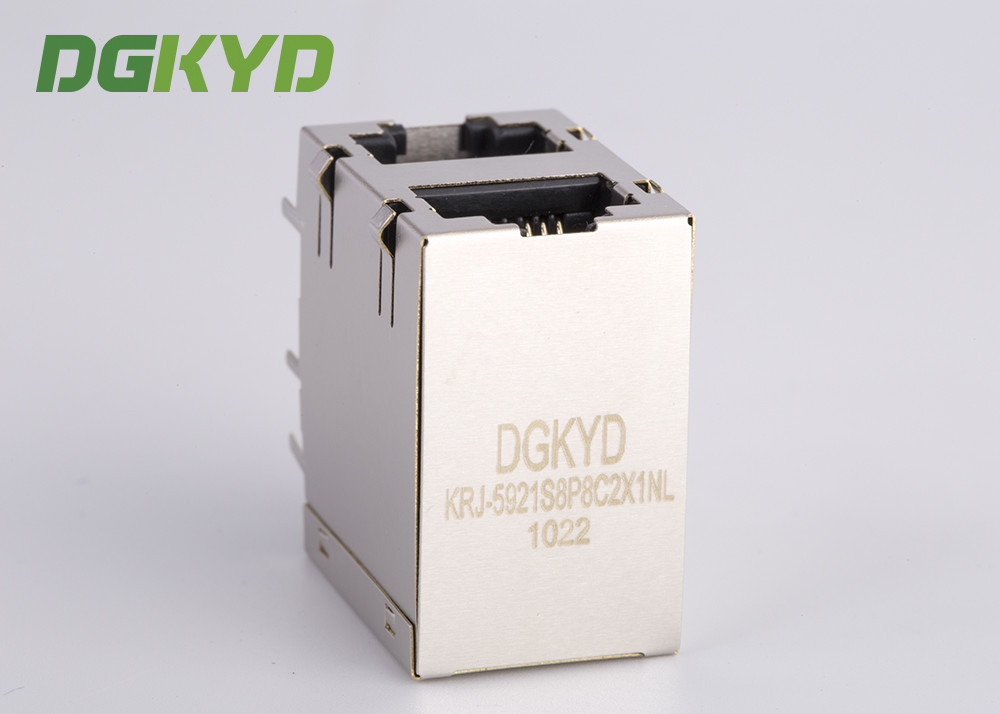

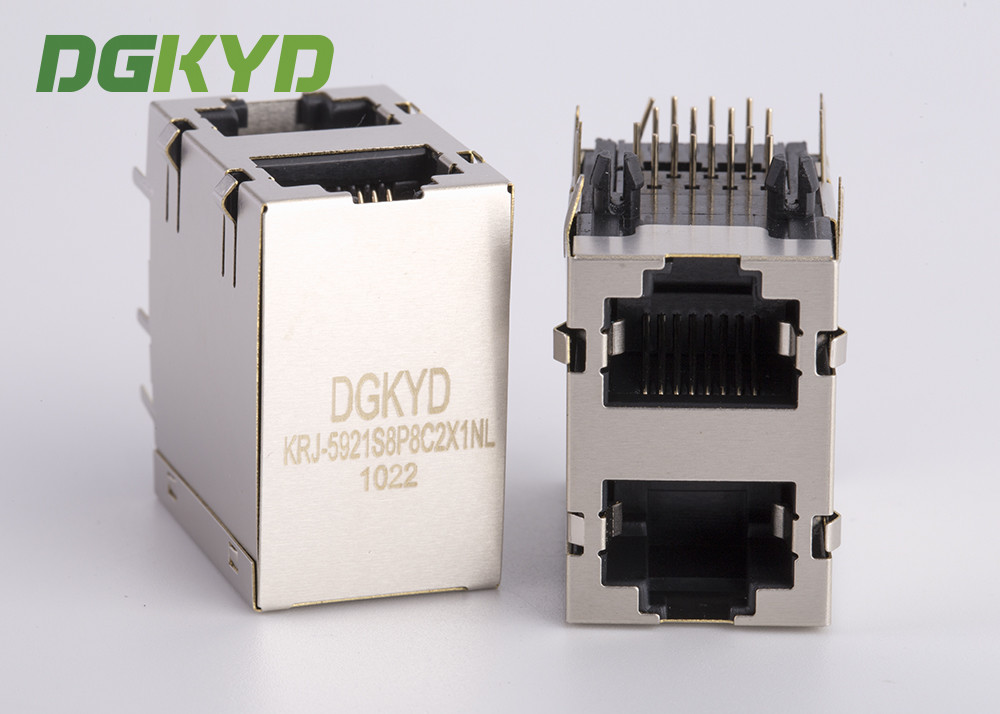

Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-5921S8P8C2X1NL

Detail Information

Housing: Phenolic, PBT Black (UL94V-0) Plastic Core: Glass Fiber Filler PBT Black(UL94V-0),ROHS
Type: RJ45 Shield: Yes
Product Name: Dual Port Rj45 Connector No.Port: 2
High Light:

dual port rj45 connector

,

dual rj45 connector

,

dual Port RJ45 Ethernet Connector

Product Description

Right Angle Multi port RJ-45 Lan Port , 2x1 RJ45 Ethernet Connector

Shield right Angle 2 x 1 dual Port RJ45 Ethernet Connector, 10/100/1000 BASE-TX 0



Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 0.6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

.RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the

surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed,

gold finger insert and pull life should be 750 times above



Applications:



Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL/ADSL and so on.

Shield right Angle 2 x 1 dual Port RJ45 Ethernet Connector, 10/100/1000 BASE-TX 1

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
