POE RJ45 Connector with internal isolationTransformer 100base-TX 8P8C OEM / ODM

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD111B163HWA1DP

Detail Information

Product Name: RJ45 With Transformer Type: Rj45 Female Jack
Housing: Phenolic, PBT Black (UL94V-0) Plastic Core: Glass Fiber Filler PBT Black(UL94V-0),ROHS
Shield RJ45: Yes No.Port: Single Port
High Light:

rj45 cat6 connector

,

1 port rj45

,

POE RJ45 Connector with Transformer

Product Description

Shielded POE RJ45 Connector with Transformer 10 / 100base-TX 8P8C ETHERNET CONNECTOR


ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION NONE
LATCH ORIENTATION LATCH DOWN
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK

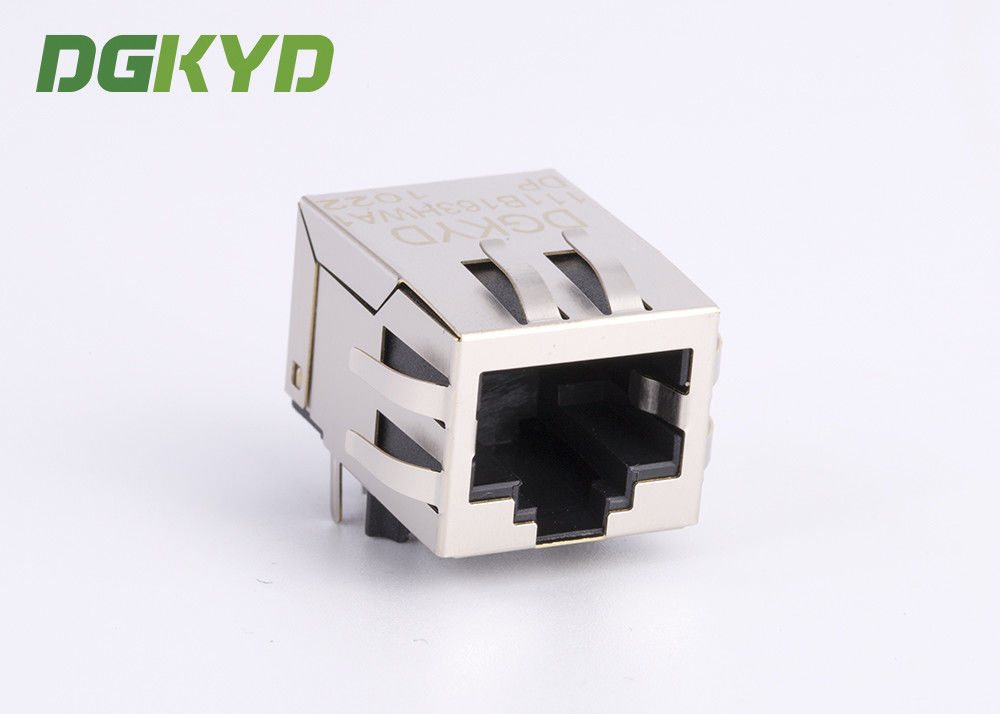

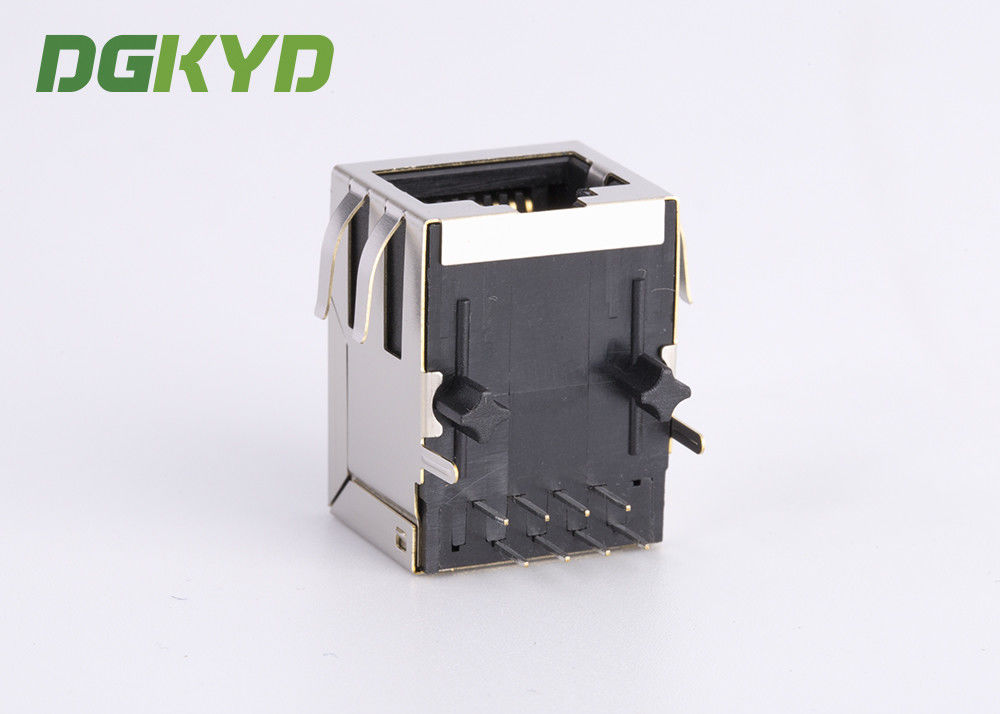

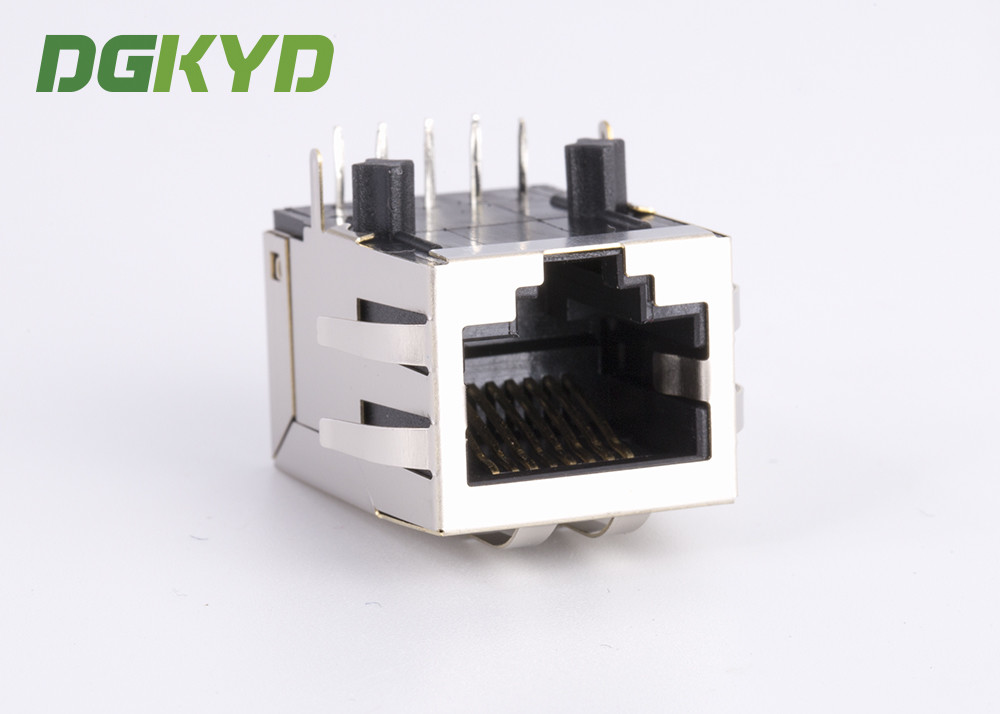

POE RJ45 Connector with internal isolationTransformer 100base-TX 8P8C OEM / ODM 0POE RJ45 Connector with internal isolationTransformer 100base-TX 8P8C OEM / ODM 1POE RJ45 Connector with internal isolationTransformer 100base-TX 8P8C OEM / ODM 2
RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.
Applications:
• Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,
internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL/ADSL and so on.
For example:

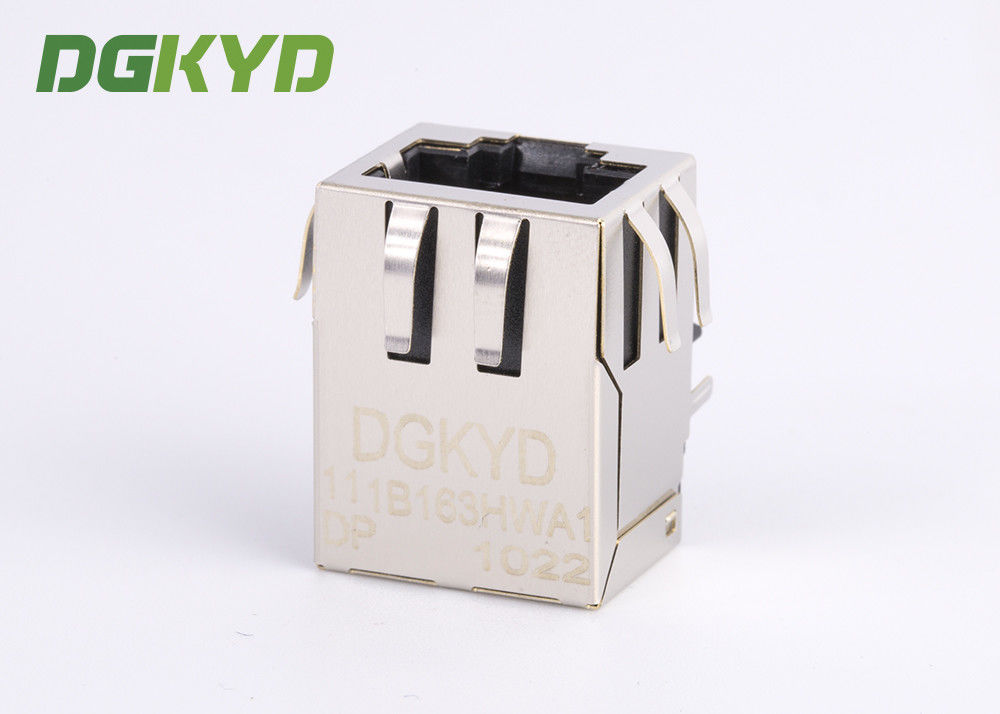

POE RJ45 Connector with internal isolationTransformer 100base-TX 8P8C OEM / ODM 3

Competitive Advantage:
Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
customer firstly ,100% test, 0 defect, short lead time are our best advantages
