100 BASE Lan RJ45 with Transformer Tab up Megabit ethernet Connector

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-H13FWDENL

Detail Information

Product Name: RJ45 With Transformer Type: RJ45 Female Jack
Housing: Phenolic, PBT Black (UL94V-0) Plastic Core: Glass Fiber Filler PBT Black(UL94V-0),ROHS
Shield RJ45: Yes No.Port: RJ45 Single Port

Product Description

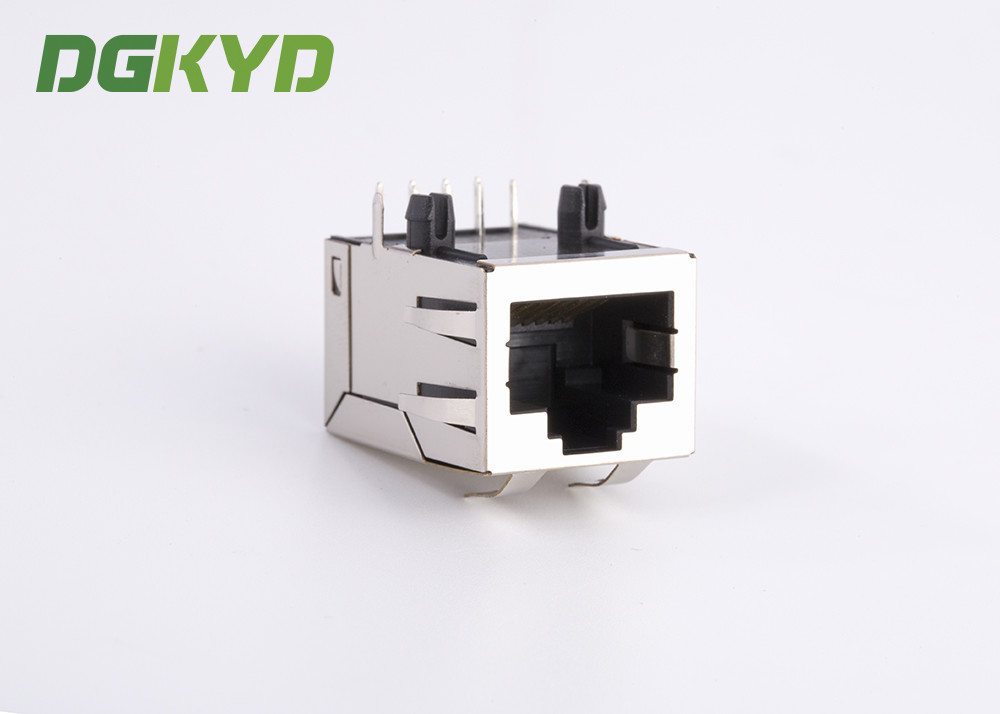

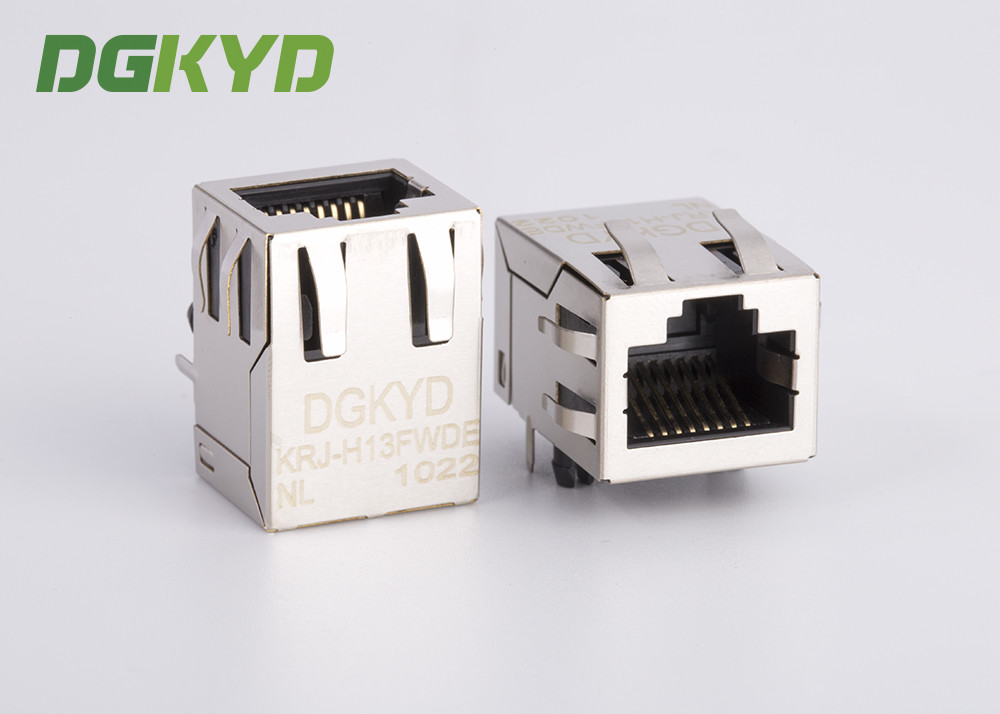

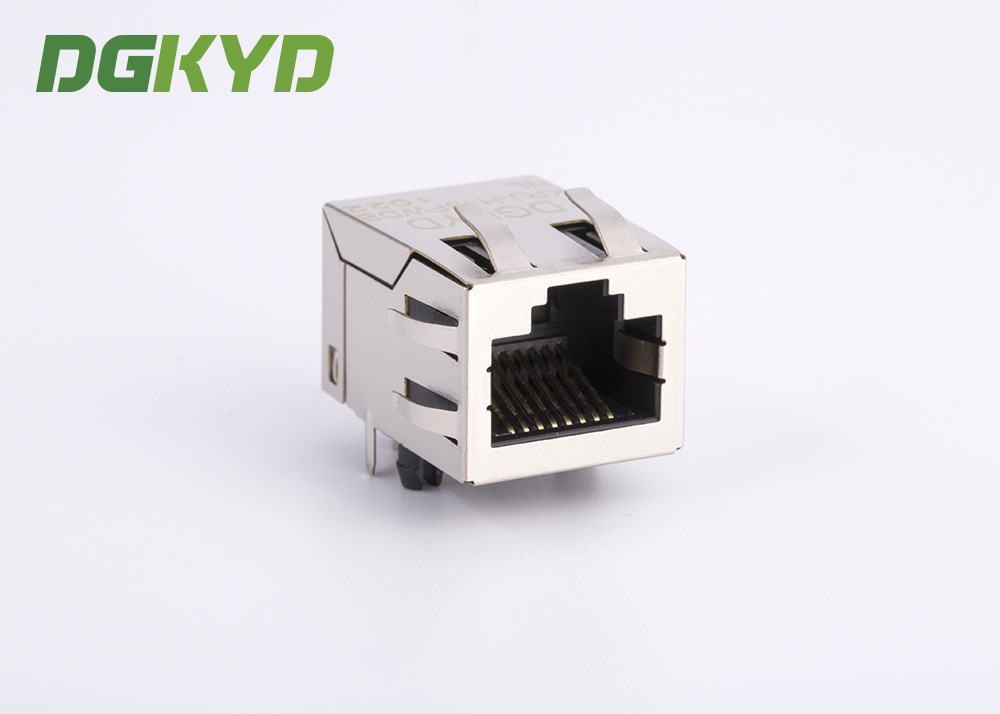

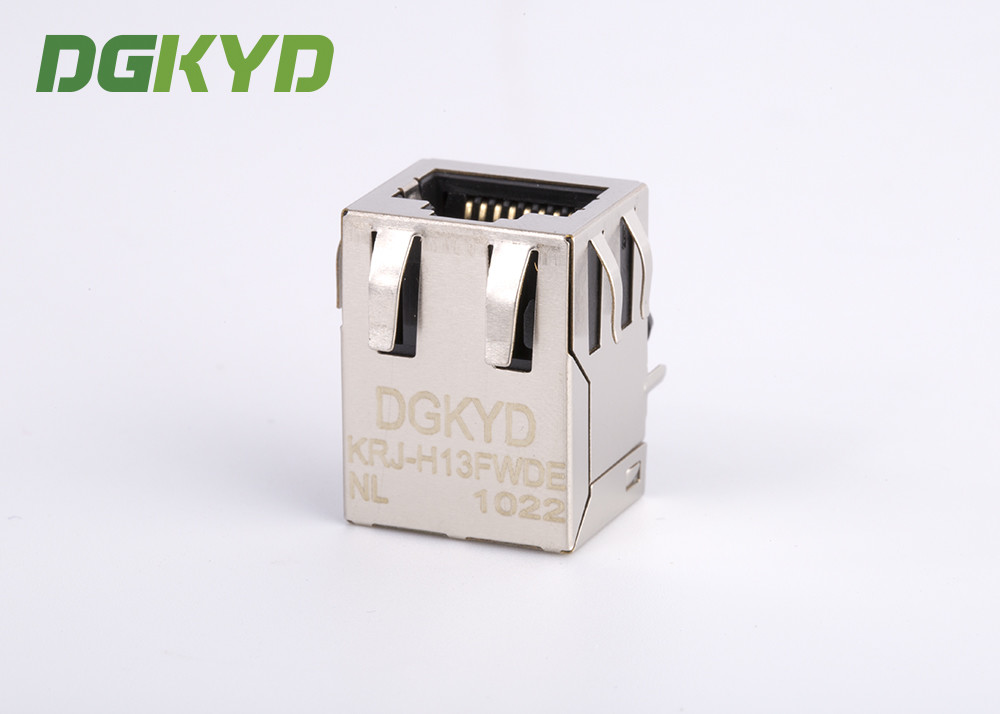

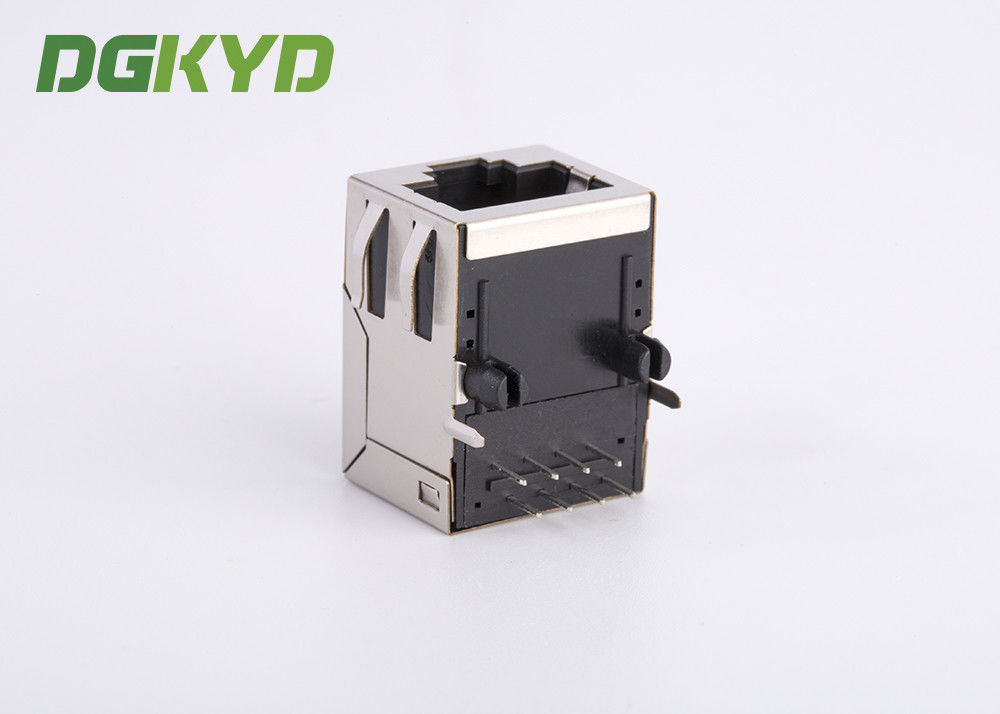

100 BASE Lan RJ45 with Transformer Tab up Megabit ethernet Connector

100 BASE Lan RJ45 with Transformer Tab up Megabit ethernet Connector



Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Electrical Specifications:  at 25℃

.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

            30-60MHZ -14.0dBmin

            60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

         30-60MHZ -35.0dBmin

         60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH  @100KHZ 100Mv 8mA   DC







LED Specifications:

Emitting
color

Dominant wavelength(nm)
(min/max)

Forward voltage
(v)

Forward current
(A)

Type

Green

570-575

1.8-2.4

20mA

Squareness

Yellow

585-590

1.8-2.4

20mA

Squareness



















Applications:



Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL/ADSL and so on.







For example:



100 BASE Lan RJ45 with Transformer Tab up Megabit ethernet Connector
