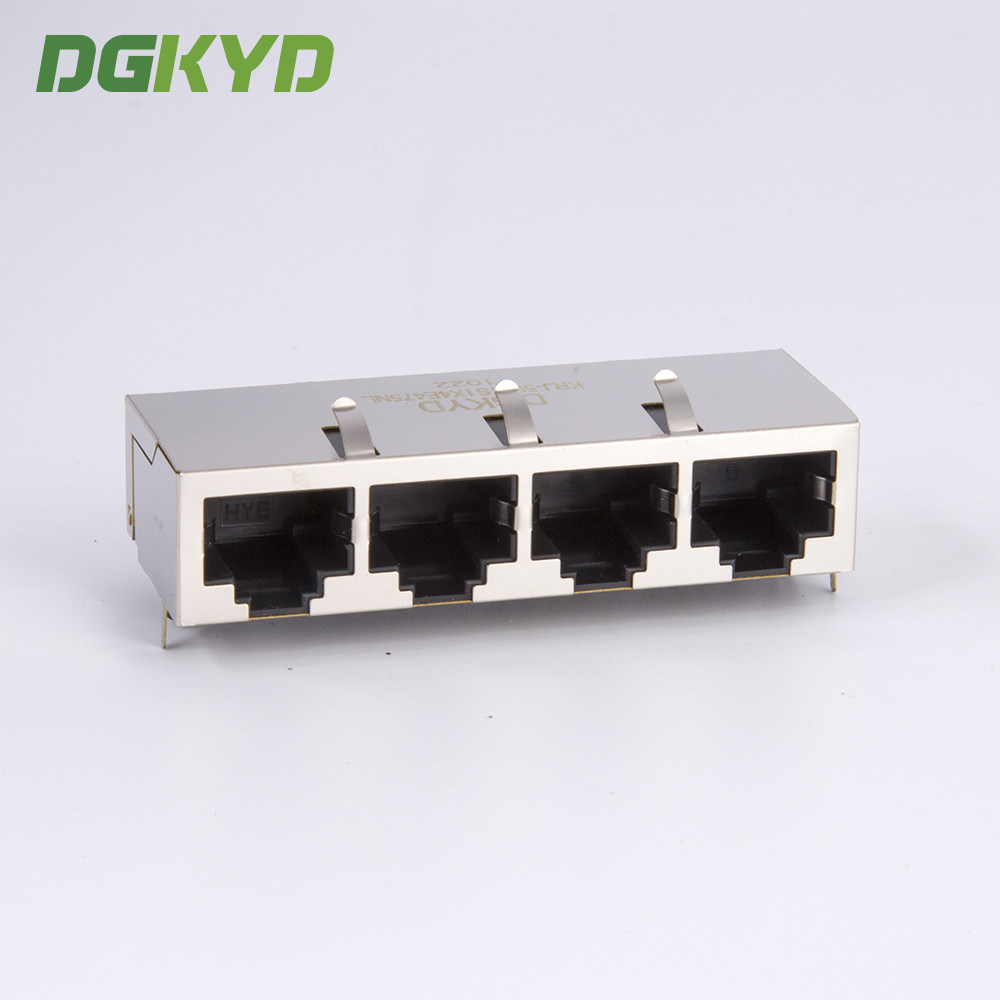

1x4 Multiple Port RJ45 Modular Jack quad ports connector combo for lan switch

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-5921S1X4E475NL

Detail Information

Application: Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc Feature: Shielded RJ45 Network Port
OEM/ODM: Yes Type: RJ45
Gender: Female Product Name: RJ45 Modular Jack

Product Description

1 x 4 Multi Port Fiber Optic RJ45 Modular Jack Port without transformer



  • Insertion Force:2.2KG.F.max
  • Retention Strength;7.7KG.Fmin between jack and plug
  • Durabbilith:600mating cycles min
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Shield:YES
  • Rohs compliant(GP)
  • Length:21.3mm
  • LEDS:NO
  • EMI fingers:NO
  • KRJ-5921S1X4E475NL

Applications:

• Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL/ADSL and so on.
