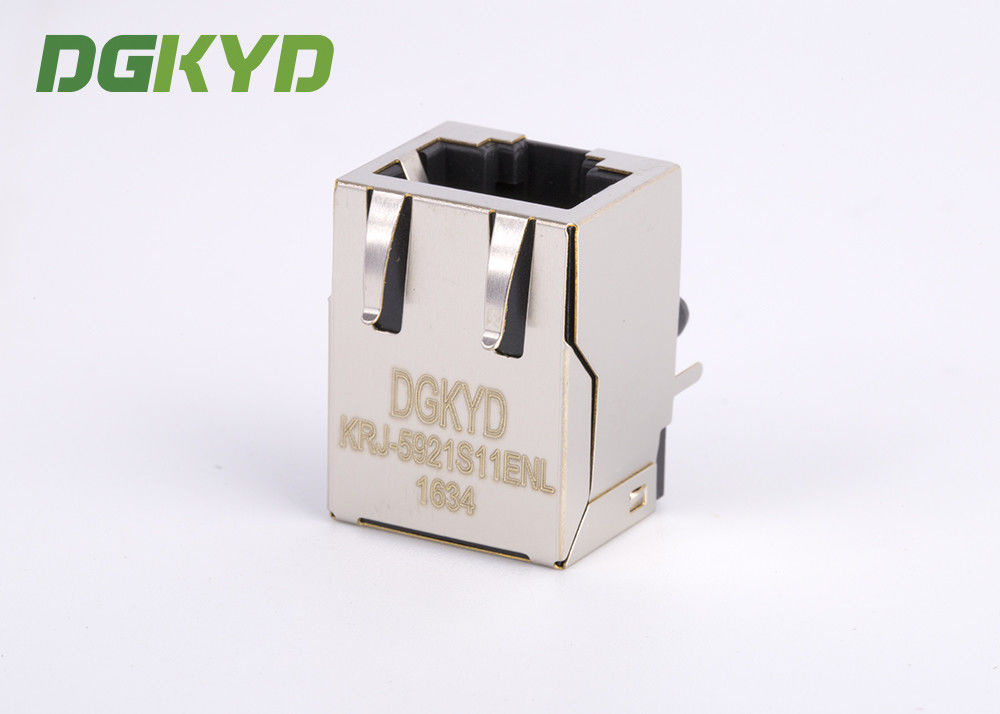

21.3mm Length Tap Down RJ45 Shielded Connector Without Transformer For Net Card

Name: 21.3mm Length Tap Down RJ45 Shielded Connector Without Transformer For Net Card
Brand: DGKYD
SKU: KRJ-5921S11ENL
Rating: 4.9 (192 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-5921S11ENL

Detail Information
Product Name:	RJ45 Shielded Connector	Type:	Rj45
Gender:	Female	Application:	Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc
Feature:	Shield	OEM/ODM:	Yes
High Light:	cat6 shielded rj45 , network port , Tap Down RJ45 Shielded Connector

Product Description

GP 21.3mm Tap Down Modular Jack RJ45 without Transformer , Net Card Used

21.3mm Length Tap Down RJ45 Shielded Connector Without Transformer For Net Card 0

Descrition:

1x1 Single port rj45 connctor without transformer
Insertion Force:2.2KG.F.max
Retention Strength;7.7KG.Fmin between jack and plug
Durabbilith:600mating cycles min
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Shield:YES
Rohs compliant(GP)
Length:21.3mm
LEDS:NO
EMI fingers:YES

Current Rating:1.5aps
Voltage Rang:125vac
Insulation Resistance:500Ωmin
Contact Resistance:30Ωmax
Withstanding Voltage:AC 1000V RMS 50Hz or 60Hz 1min
