90 degree side entry 1x 2 Port ethernet socket RJ45 female Jack 10/100/1000 Base-Tx

China 90 degree side entry 1x 2 Port ethernet socket RJ45 female Jack 10/100/1000 Base-Tx supplier
90 degree side entry 1x 2 Port ethernet socket RJ45 female Jack 10/100/1000 Base-Tx supplier 90 degree side entry 1x 2 Port ethernet socket RJ45 female Jack 10/100/1000 Base-Tx supplier 90 degree side entry 1x 2 Port ethernet socket RJ45 female Jack 10/100/1000 Base-Tx supplier 90 degree side entry 1x 2 Port ethernet socket RJ45 female Jack 10/100/1000 Base-Tx supplier 90 degree side entry 1x 2 Port ethernet socket RJ45 female Jack 10/100/1000 Base-Tx supplier 90 degree side entry 1x 2 Port ethernet socket RJ45 female Jack 10/100/1000 Base-Tx supplier

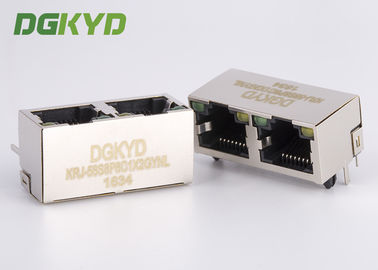

Large Image :  90 degree side entry 1x 2 Port ethernet socket RJ45 female Jack 10/100/1000 Base-Tx

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-56S8P8C1X2GYNL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Application: Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc Feature: Shielded RJ45 Network Port
OEM/ODM: Yes Type: Rj45
Shield: Yes Product Name: RJ45 Modular Jack

90 Degree RJ45 Modular Jack 10 / 100 / 1000Base-Tx 1x2 Port ethernet socket

90 degree side entry 1x 2 Port ethernet socket RJ45 female Jack 10/100/1000 Base-Tx





  • 10/100/1000Base-Tx RJ45 double port 1X2 Side Entry (Right Angle) with G/Y LED
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant
  • LEDS: G/Y LED
  • EMI fingers:YES


Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 0.6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

• Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver, IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication, MODEM,HomePNA,DSL/ADSL and so on.
