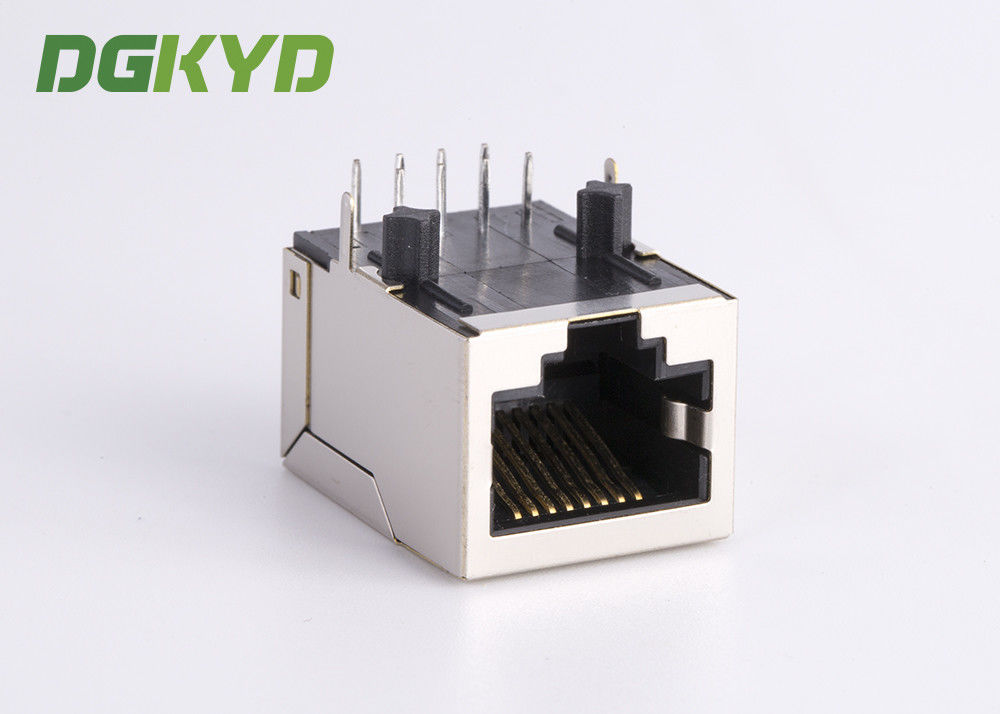

100 Megabit integrated magnetics RJ45 ethernet Connector Module distance 3.05mm

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-141CNL

Detail Information

Application: Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc Feature: Shielded RJ45 Network Port
OEM/ODM: Yes Type: Connector Module RJ45
Gender: Female Jack Product Name: RJ45 Modular Jack
High Light:

rj45 connector shielded

,

network rj45 connectors

,

3.05mm RJ45 ethernet Connector

Product Description

100BASE RJ45 Ethernet Connector Modular RJ45 Jack LED Distance 3.05MM

Part Number KRJ-141CNL Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Down
Filter With Filter LED Option Without LED
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Single Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Housing Material  PBT Polyester Housing Color Black
Operation Temperature -40℃ to +85℃ UL Flammability Rating  UL 94V-0



100 Megabit integrated magnetics RJ45 ethernet Connector Module distance 3.05mm 0100 Megabit integrated magnetics RJ45 ethernet Connector Module distance 3.05mm 1100 Megabit integrated magnetics RJ45 ethernet Connector Module distance 3.05mm 2

Applications:

 Fusion Pumps • Imaging • Ventilators • Diagnostics • Monitors



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
