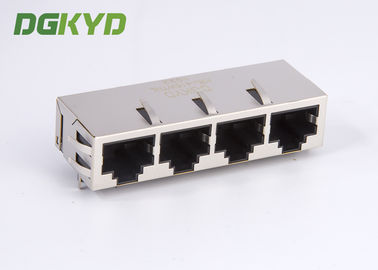

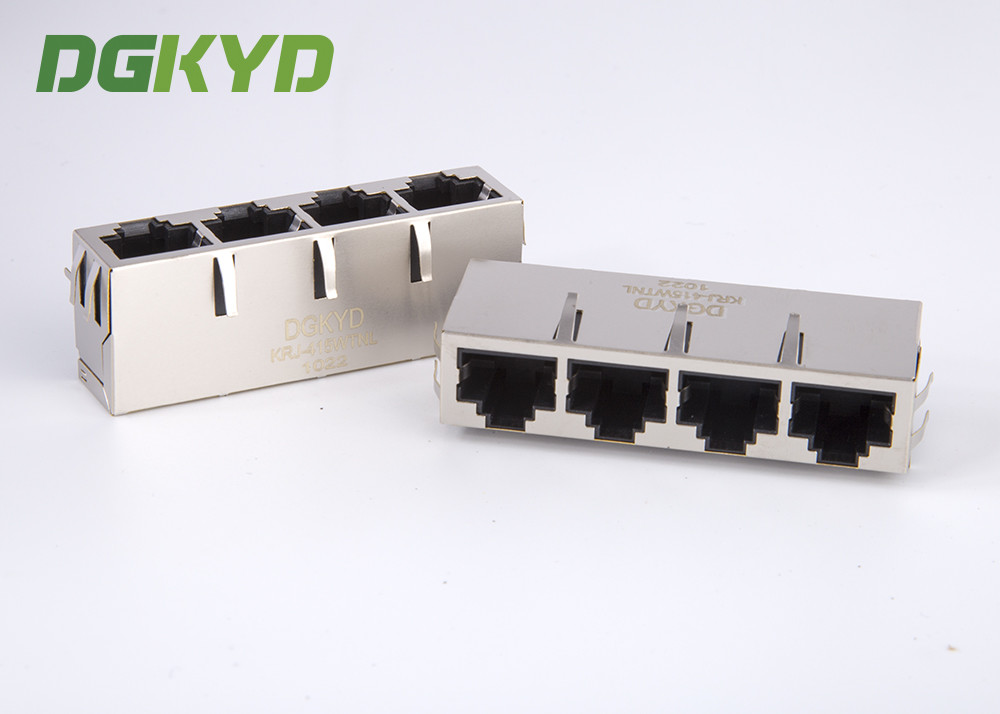

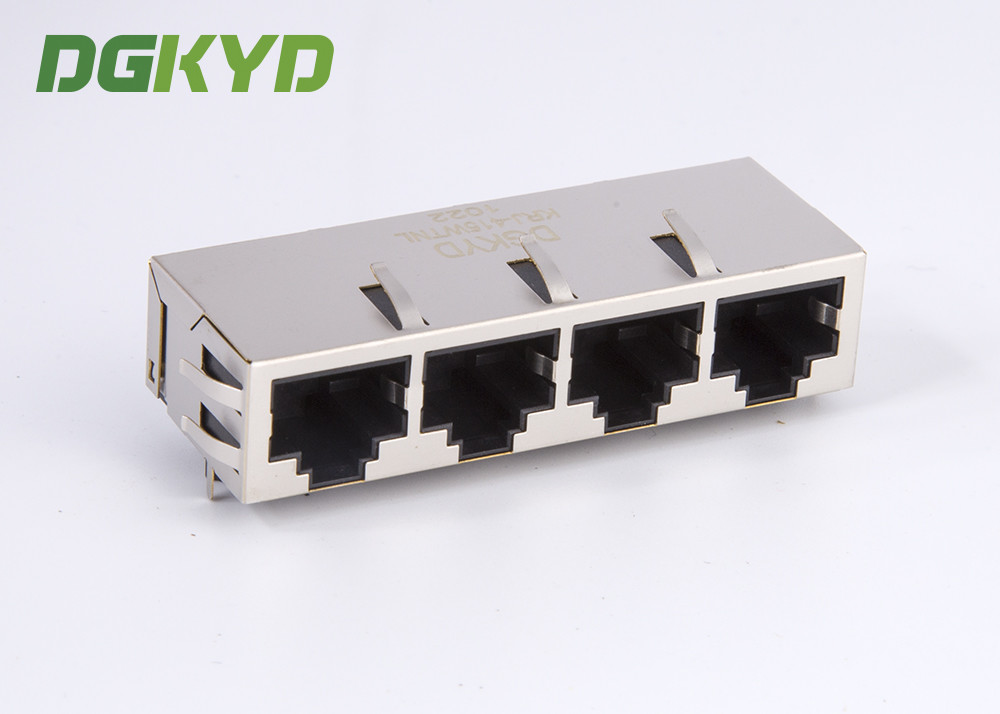

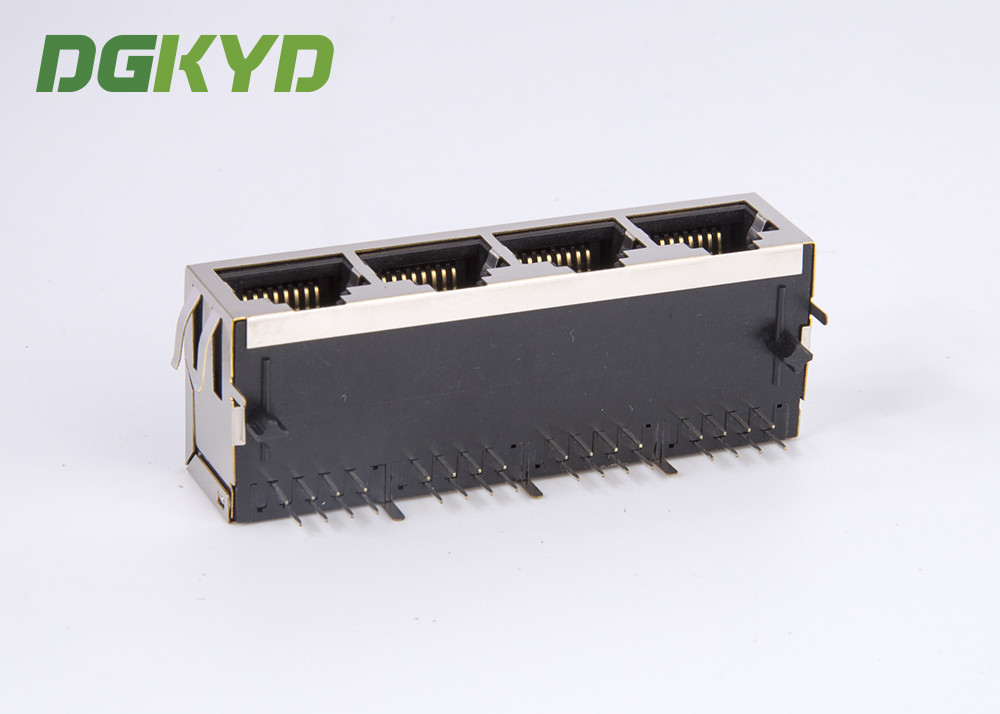

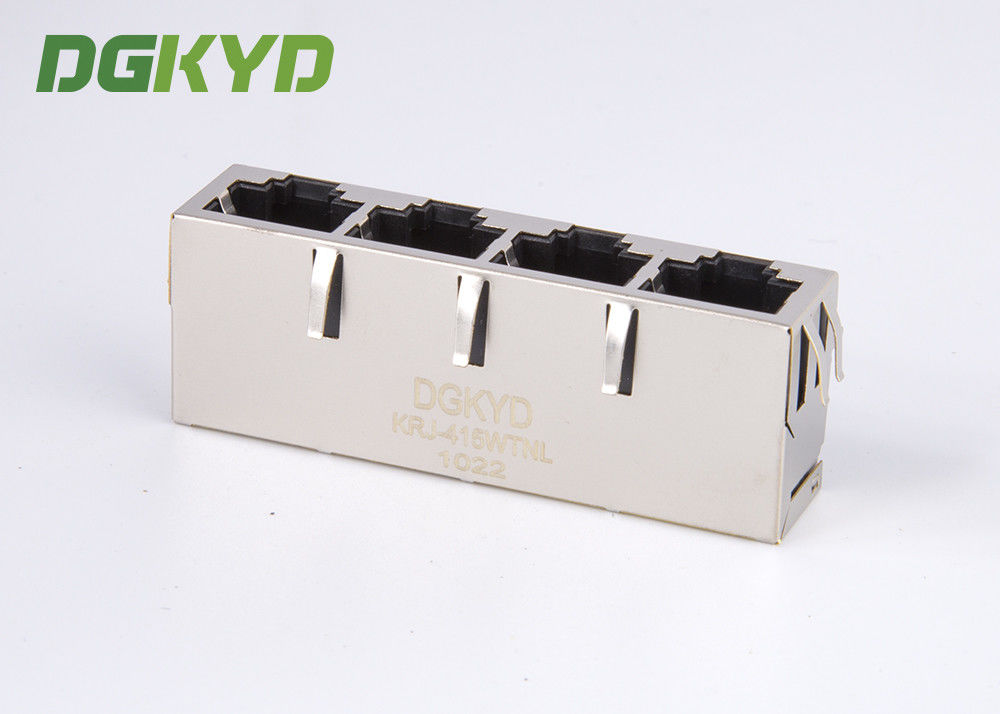

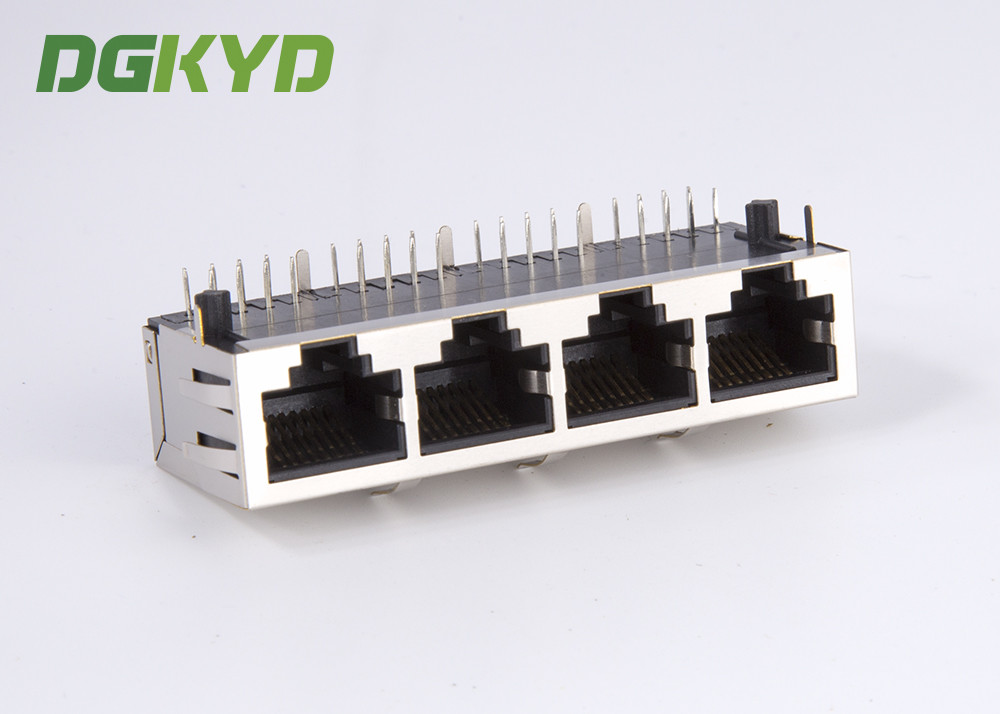

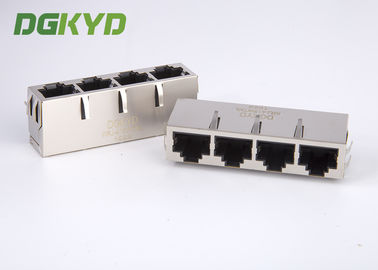

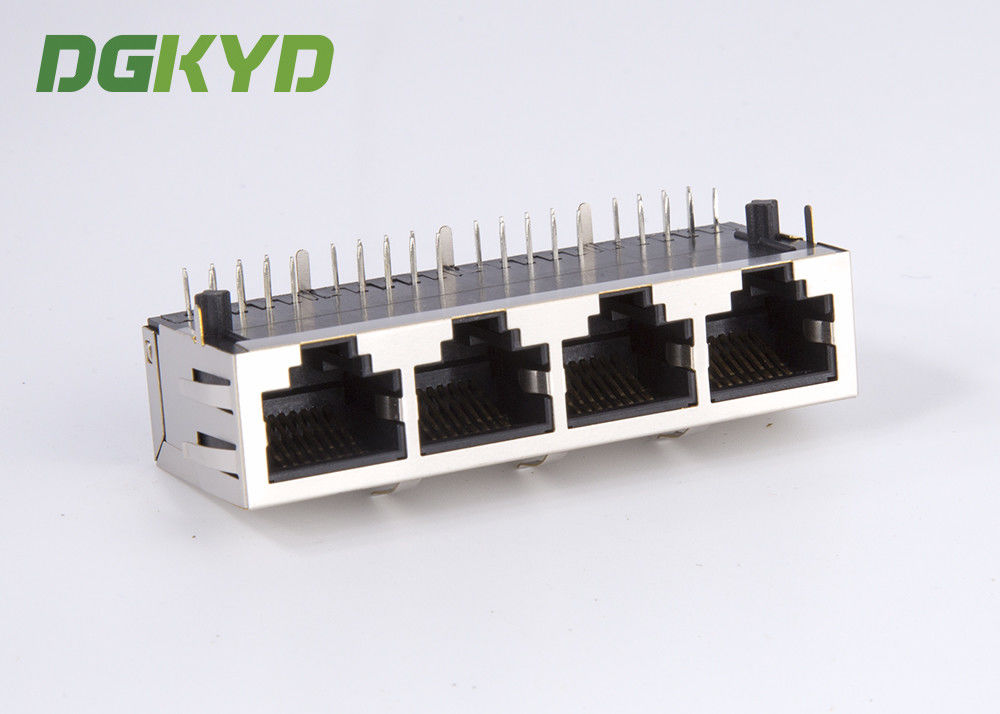

Shielded 1 x 4 multiple port integrated magnetic RJ45 connector 10/100BASE W/O LED

China Shielded 1 x 4 multiple port integrated magnetic RJ45 connector 10/100BASE W/O LED supplier
Shielded 1 x 4 multiple port integrated magnetic RJ45 connector 10/100BASE W/O LED supplier Shielded 1 x 4 multiple port integrated magnetic RJ45 connector 10/100BASE W/O LED supplier Shielded 1 x 4 multiple port integrated magnetic RJ45 connector 10/100BASE W/O LED supplier Shielded 1 x 4 multiple port integrated magnetic RJ45 connector 10/100BASE W/O LED supplier Shielded 1 x 4 multiple port integrated magnetic RJ45 connector 10/100BASE W/O LED supplier Shielded 1 x 4 multiple port integrated magnetic RJ45 connector 10/100BASE W/O LED supplier

Large Image :  Shielded 1 x 4 multiple port integrated magnetic RJ45 connector 10/100BASE W/O LED

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-415WTNL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Application: Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc Feature: Shielded RJ45 Network Port
OEM/ODM: Yes Type: Multi Pin Rj45 Magjack
Gender: Rj45 Receptacle Product Name: RJ45 Modular Jack

Shielded W / LED magnetic RJ45 Modular Jack 10/100BASE 1 x 4 Tab Down



P/N:KRJ-415WTNL



Descriptions:

  • 10/100Base-Tx RJ45 4 port 1X4 Side Entry (Right Angle) without LED
  • 4 port 1X4 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:NO
  • EMI:YES
  • Usage:KRJ-415WTNL



Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin 0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated
